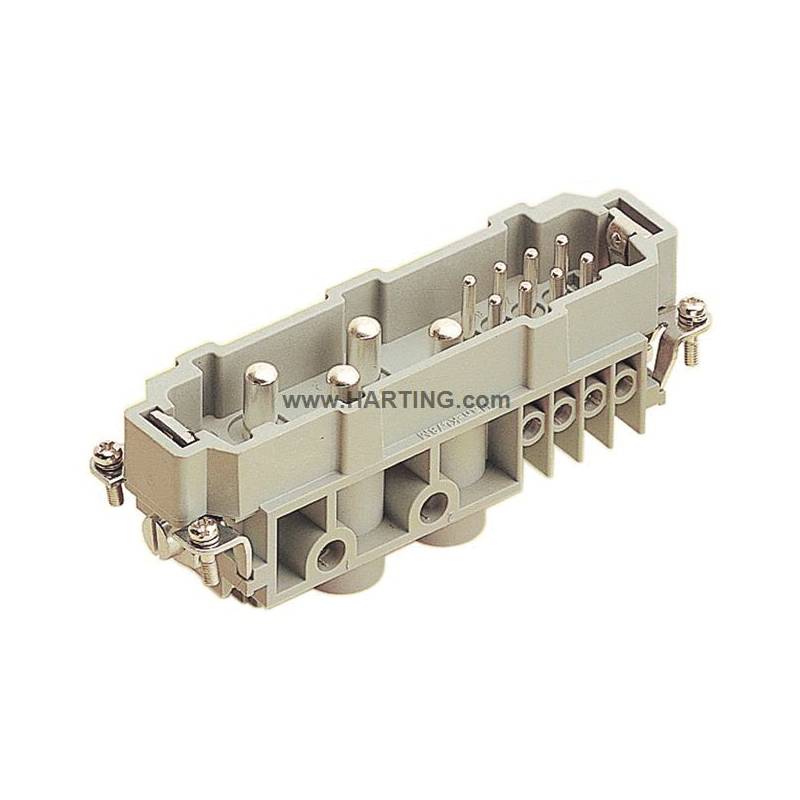

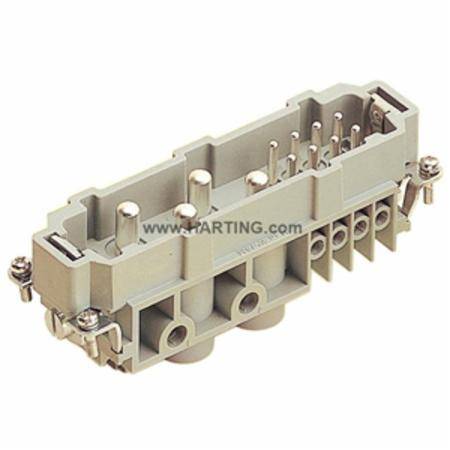

HARTING® 09 38 012 2601 Han-Com® Connector Insert, 4 Positions, 20 to 14 AWG Wire, Male Screw Connection, Polyamide

Short Description

104 MM x 42 MM, 12-Contact, 400 V, 16/80 A, Polyamide, Screw Termination, Male, Industrial Connector Insert

HARTING® Connector Insert, Series: Han-Com®, 4 Positions, 20 to 14 AWG Wire, Male Screw Connection, -40 to 125 deg C, Specifications: 80 A Rated, 400 VAC Rated, 6 kV Rated Impulse, 24B Size, Polyamide, Pebble Gray, 111 mm L x 34 mm W x 42 mm H Dimensions
MFG #: 09 38 012 2601

EECO #: HG09380122601

Brand: HARTING®
Attributes
Features
Documents
Product Information
Attributes
Color
Pebble Gray
UNSPSC
39121400
Used On
Industrial Connector
Material
Polyamide
Wire Size
20 to 14
Current Rating
16/80 Amp
Connection Type
Male Screw
Temperature Rating
-40 to 125
Series
Han-Com®
Dimensions
111 mm L x 34 mm W x 42 mm H
Specifications
80 A Rated, 400 VAC Rated, 6 kV Rated Impulse, 24B Size
Number of Contacts
12
Features
  • HB flammability according to UL 94
  • 3 deg pollution
  • RAL 7032 pebble gray
  • >/= 500 mating cycles
  • </=0.3 mOhm contact resistance, </= 1 mOhm contact resistance (signal)
  • 16 A rated (signal)
  • 400 VAC rated (signal)
  • 6kV rated impulse (signal)
  • Copper alloy contact material
  • Silver plated contact surface
  • 600 VAC rated according to UL
  • 600 VAC rated according to UL (signal)
  • 600 VAC rated according to CSA
  • (8) additional signal contacts
  • PE contact
  • 1.5 to 16 sq-mm conductor cross-section
  • 600 VAC rated according to CSA (signal)

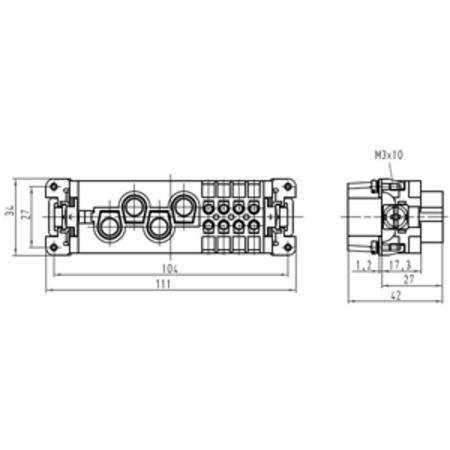

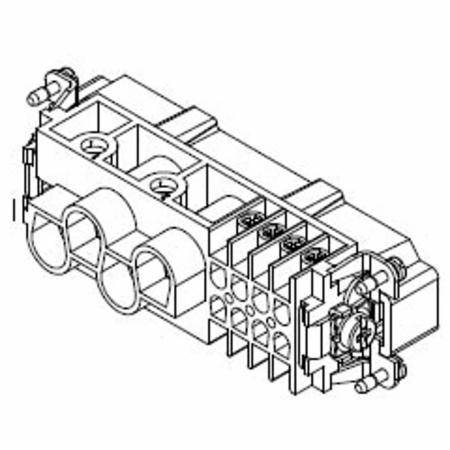

HARTIN_09_38_012_2601_CAD
HARTINE00075_05_28
Qty Unit price
Ea
1 $62.10

Slqt
1 $62.10

Stpk
1 $621.00

Unit
1 $62.10
