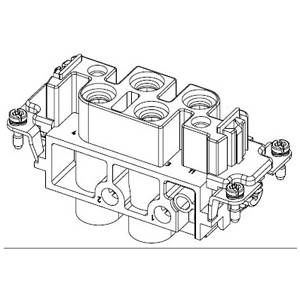

HARTING® 09 38 006 2711 Han-Com® Terminal Pin Insert, 4 Positions, 16 to 6 AWG Wire, Female Screw Connection, Polycarbonate

Short Description

84.5 MM x 34 MM x 44.2 MM, 4-Contact, 830 V, 80 A, Polycarbonate, Screw Termination, Female, Industrial Connector Insert

HARTING® Terminal Pin Insert, Series: Han-Com®, 4 Positions, 16 to 6 AWG Wire, Female Screw Connection, -40 to 125 deg C, Specifications: 80 A Rated Current 8 kV Rated Impulse Voltage, Polycarbonate, Pebble Gray, 27 mm L x 84.5 mm W x 34 mm D Dimensions
MFG #: 09 38 006 2711

EECO #: HG09380062711

Brand: HARTING®
UPC #: 999999011268
Attributes
Features
Documents
Product Information
Attributes
Color
Pebble Gray
UNSPSC
39121402
Used On
Industrial Connector
Material
Polycarbonate
Wire Size
16 to 6
Current Rating
80 Amp
Connection Type
Female Screw
Temperature Rating
-40 to 125
Series
Han-Com®
Dimensions
27 mm L x 84.5 mm W x 34 mm D
Specifications
80 A Rated Current 8 kV Rated Impulse Voltage
Number of Contacts
4
Features
  • V-0 flammability according to UL 94
  • = 500 mating cycles
  • = 1010 ohm insulation resistance
  • 600 V/300 V rated voltage according to UL/ CSA
  • 3 deg pollution
  • 830 V rated voltage
  • 1.5 - 16 sq-mm conductor cross section
  • = 0.3 m ohm contact resistance
  • Copper alloy material
  • RAL 7032 pebble grey material
  • PE contact
  • 16B size
  • Silver plated contact
HARTIN_09_38_006_2711_CAD
HARTINE00074_05_16
HARTING_09_38_006_2711_Line_Drawing
Qty Unit price
Ea
1 $61.28

Slqt
1 $61.28

Stpk
1 $612.80

Unit
1 $61.28
