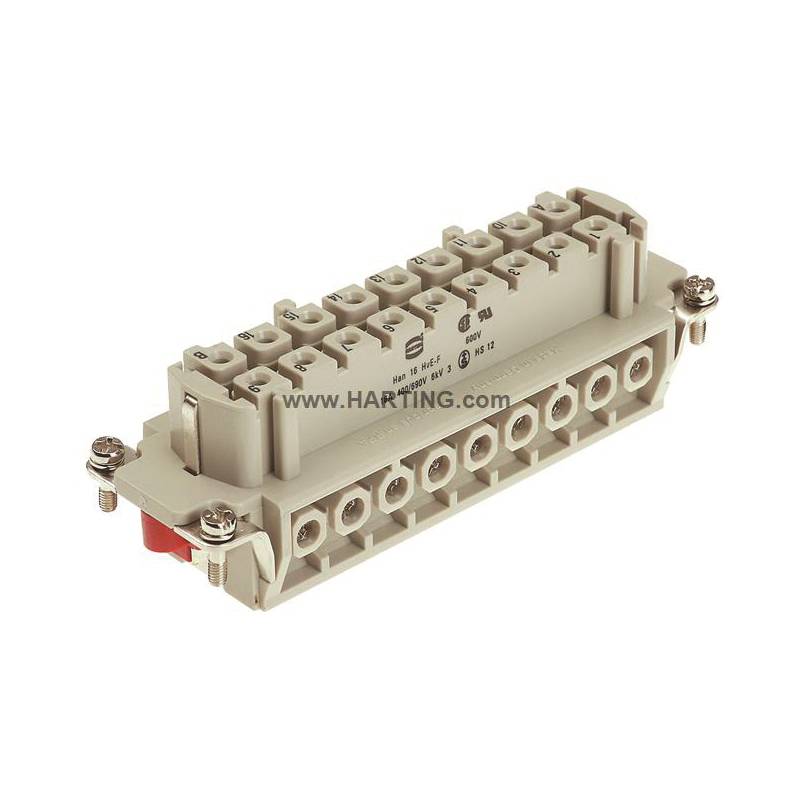

HARTING® 09 34 016 2701 Han® HVE Connector Insert, 16 Positions, 18 to 14 AWG Wire, Female Screw Connection, Polycarbonate

Short Description

34 MM x 111 MM x 34.4 MM, 16-Contact, 400/600/609 V, 16 A, Pebble Gray Polycarbonate Insert, Silver Plated Copper Alloy Contact, Screw Termination, Insert, Female, Industrial Connector Insert

HARTING® Connector Insert, Series: Han® HVE, 16 Positions, 18 to 14 AWG Wire, Female Screw Connection, -40 to 125 deg C, Specifications: 16 A Rated, 400 VAC Conductor to Earth, 690 VAC Conductor to Conductor, 6 kV Rated Impulse, 24B Size, Polycarbonate, Pebble Gray, 111 mm L x 34 mm W x 34.4 mm H Dimensions
MFG #: 09 34 016 2701

EECO #: HG09340162701

Brand: HARTING®
Attributes
Features
Documents
Product Information
Attributes
Color
Pebble Gray
UNSPSC
39121400
Used On
Industrial Connector
Material
Polycarbonate
Wire Size
18 to 14
Current Rating
16 Amp
Connection Type
Female Screw
Temperature Rating
-40 to 125
Size
34 Millimeter Length x 111 Millimeter Width x 34.4 Millimeter Height
Type
Insert, Female
Series
Han® HVE
Dimensions
111 mm L x 34 mm W x 34.4 mm H
Specifications
16 A Rated, 400 VAC Conductor to Earth, 690 VAC Conductor to Conductor, 6 kV Rated Impulse, 24B Size
Number of Contacts
16
Features
  • V-0 flammability according to UL 94
  • 3 deg pollution
  • RAL 7032 pebble gray
  • 0.5 Nm tightening torque
  • >/= 500 mating cycles
  • </= 1 mOhm contact resistance
  • 600 VAC rated according to UL/CSA
  • Copper alloy contact material
  • Silver plated contact surface
  • (2) additional relay contacts
  • PE contact
  • 0.75 to 2.5 sq-mm conductor cross-section
HartingTechnologyGroup_00023_127_128_CAT
HartingTechnologyGroup_00037_1_2_DATA
HartingTechnologyGroup_00051_1_CAD
Qty Unit price
Ea
1 $25.43

Slqt
1 $25.43

Stpk
1 $254.30

Unit
1 $25.43
