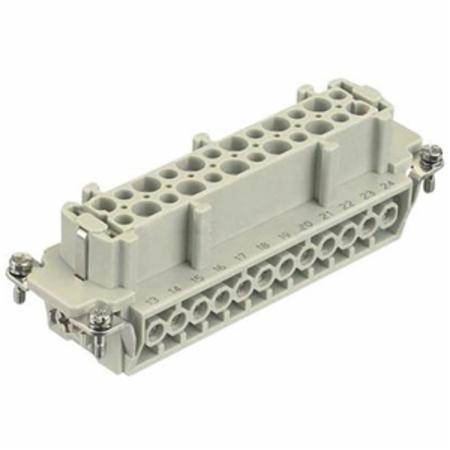

HARTING® 09 33 024 2701 Han E® Terminal Insert, 24 Positions, 18 to 14 AWG Wire, Female Screw Connection, Polycarbonate

Short Description

111 MM x 34 MM x 32.4 MM, 24-Contact, 500 V, 16 A, Polycarbonate, Screw Termination, Female, Industrial Connector Insert

HARTING® Terminal Insert, Series: Han E®, 24 Positions, 18 to 14 AWG Wire, Female Screw Connection, -40 to 125 deg C, Specifications: 16 A Rated Current 6 kV Rated Impulse Voltage, Polycarbonate, Pebble Gray, 27 mm L x 111 mm W x 34.6 mm D Dimensions
MFG #: 09 33 024 2701

EECO #: HG09330242701

Brand: HARTING®
UPC #: 999999047267
Attributes
Features
Documents
Product Information
Attributes
Color
Pebble Gray
UNSPSC
39121400
Used On
Industrial Connector
Material
Polycarbonate
Wire Size
18 to 14
Current Rating
16 Amp
Connection Type
Female Screw
Temperature Rating
-40 to 125
Series
Han E®
Dimensions
27 mm L x 111 mm W x 34.6 mm D
Specifications
16 A Rated Current 6 kV Rated Impulse Voltage
Number of Contacts
24
Features
  • V-0 flammability according to UL 94
  • = 500 mating cycles
  • = 1010 ohm insulation resistance
  • 600 V rated voltage according to UL/ CSA
  • 3 deg pollution
  • 500 V rated voltage
  • 0.75 - 2.5 sq-mm conductor cross section
  • = 1 m ohm contact resistance
  • 0.5 N-m tightening torque
  • 18 - 14 AWG conductor cross section
  • RAL 7032 pebble grey material
  • 24B size

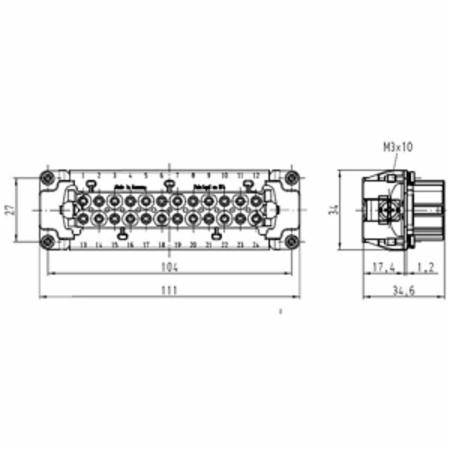

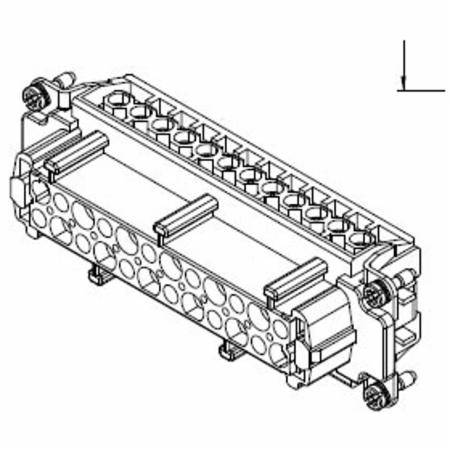

HARTIN_09_33_024_2701_CAD
HARTINE00070_03_7
HARTINE00105_00_4_03_3_03_7_03_11
Qty Unit price
Ea
1 $15.70

Slqt
1 $15.70

Stpk
1 $15.70

Unit
1 $15.70
