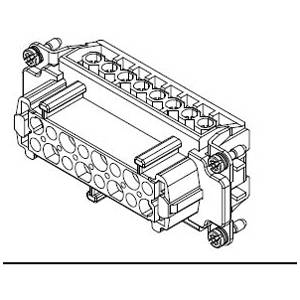

HARTING® 09 33 016 2711 Han E® Terminal Insert With Wire Protection, 32 Positions, Female Screw Connection, Polycarbonate

Short Description

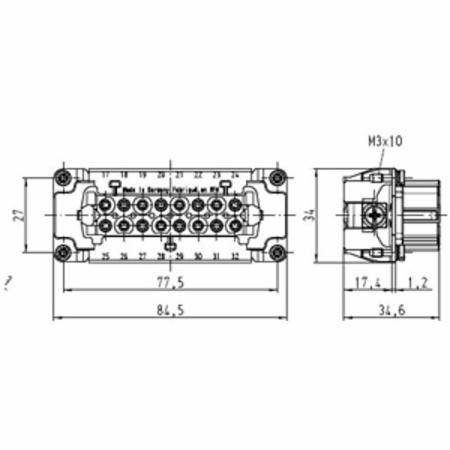

84.5 MM x 27 MM x 34.6 MM, 32-Contact, 500 V, 16 A, Polycarbonate, Screw Termination, Continuing Marking, Female, Industrial Connector Insert

HARTING® Terminal Insert, Series: Han E®, 32 Positions, Female Screw Connection, -40 to 125 deg C, Specifications: 16 A Rated Current 6 kV Rated Impulse Voltage, Continuing Marking, Polycarbonate, Pebble Gray, 36 mm L x 84.5 mm W x 34.6 mm D Dimensions
MFG #: 09 33 016 2711

EECO #: HG09330162711

Brand: HARTING®
UPC #: 999999047205
Attributes
Features
Documents
Product Information
Attributes
Color
Pebble Gray
UNSPSC
39121400
Used On
Industrial Connector
Material
Polycarbonate
Current Rating
16 Amp
Connection Type
Female Screw
Temperature Rating
-40 to 125
Series
Han E®
Dimensions
36 mm L x 84.5 mm W x 34.6 mm D
Specifications
16 A Rated Current 6 kV Rated Impulse Voltage, Continuing Marking
Number of Contacts
32
Features
  • V-0 flammability according to UL 94
  • = 500 mating cycles
  • = 1010 ohm insulation resistance
  • 600 V rated voltage according to UL/ CSA
  • 3 deg pollution
  • 500 V rated voltage
  • 0.75 - 2.5 sq-mm conductor cross section
  • = 1 m ohm contact resistance
  • 0.5 N-m tightening torque
  • RAL 7032 pebble grey material
  • PE contact
  • 32B size
HARTIN_09_33_016_2711_CAD
HARTINE00069_03_9
Qty Unit price
Ea
1 $11.24

Slqt
1 $11.24

Stpk
1 $11.24

Unit
1 $11.24
