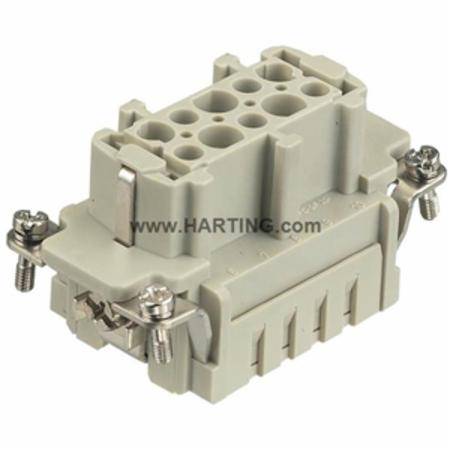

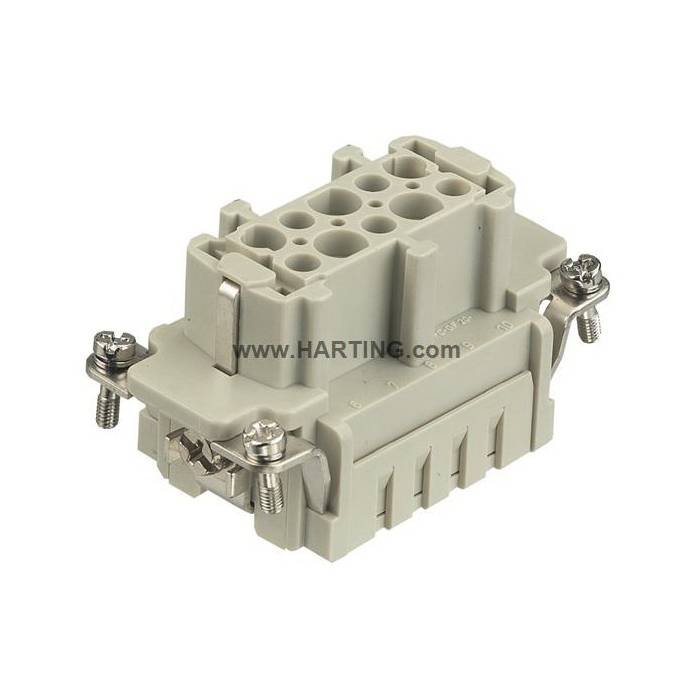

HARTING® 09 33 010 2702 Han E® Terminal Insert, 10 Positions, 20 to 12 AWG Wire, Crimp/Female Connection, Polycarbonate

Short Description

64 MM x 34 MM, 10-Contact, 500 V, 16 A, Polycarbonate, Crimp Termination, Female, Industrial Connector Insert

HARTING® Terminal Insert, Series: Han E®, 10 Positions, 20 to 12 AWG Wire, Crimp/Female, -40 to 125 deg C, 16 A Rated, 500 VAC Rated, 6 kV Rated Impulse, 10B Size, Polycarbonate, Pebble Gray, 63.8 mm L x 35.5 mm W x 33.9 mm H
MFG #: 09 33 010 2702

EECO #: HG09330102702

Brand: HARTING®
Attributes
Features
Documents
Product Information
Attributes
Color
Pebble Gray
UNSPSC
39121400
Used On
Industrial Connector
Material
Polycarbonate
Wire Size
20 to 12
Current Rating
16 Amp
Connection Type
Crimp/Female
Temperature Rating
-40 to 125
Series
Han E®
Dimensions
63.8 mm L x 35.5 mm W x 33.9 mm H
Specifications
16 A Rated, 500 VAC Rated, 6 kV Rated Impulse, 10B Size
Number of Contacts
10
Features
  • 3 deg pollution
  • RAL 7032 pebble gray
  • >/= 500 mating cycles
  • 600 VAC rated according to UL/CSA
  • PE contact
  • 0.14 to 4 sq-mm conductor cross-section

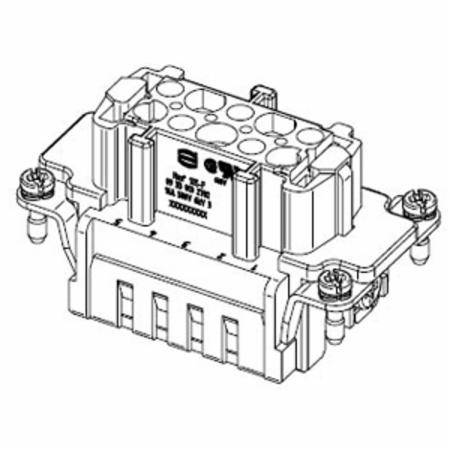

HARTIN_09_33_010_2702_CAD
HARTINE00065_03_5
HARTINE00105_00_4_03_3_03_5

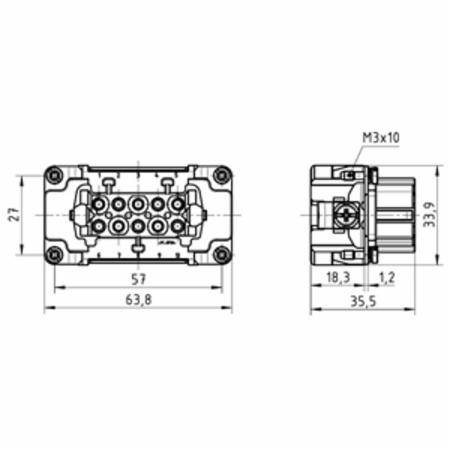

HARTING_09_33_010_2702_Full_Engineering_Drawing
Qty Unit price
Ea
1 $7.30

Slqt
1 $7.30

Stpk
1 $73.00

Unit
1 $7.30
