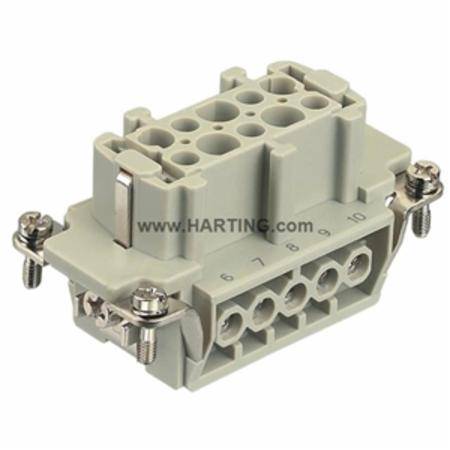

HARTING® 09 33 010 2701 Han E® Terminal Insert With Wire Protection, 10 Positions, 18 to 14 AWG Wire, Female Screw Connection, Polycarbonate

Short Description

64 MM x 34 MM, 10-Contact, 500 V, 16 A, Polycarbonate, Screw Termination, Female, Industrial Connector Insert

HARTING® Terminal Insert, Series: Han E®, 10 Positions, 18 to 14 AWG Wire, Female Screw Connection, -40 to 125 deg C, Specifications: 16 A Rated Current 6 kV Rated Impulse Voltage, Polycarbonate, Pebble Gray, 36 mm L x 64 mm W x 34.6 mm D Dimensions
MFG #: 09 33 010 2701

EECO #: HG09330102701

Brand: HARTING®
UPC #: 999999010872
Attributes
Features
Documents
Product Information
Attributes
Color
Pebble Gray
UNSPSC
39121400
Used On
Industrial Connector
Material
Polycarbonate
Wire Size
18 to 14
Current Rating
16 Amp
Connection Type
Female Screw
Temperature Rating
-40 to 125
Series
Han E®
Dimensions
36 mm L x 64 mm W x 34.6 mm D
Specifications
16 A Rated Current 6 kV Rated Impulse Voltage
Number of Contacts
10
Features
  • V-0 flammability according to UL 94
  • = 500 mating cycles
  • = 1010 ohm insulation resistance
  • 600 V rated voltage according to UL/ CSA
  • 3 deg pollution
  • 500 V rated voltage
  • 0.75 - 2.5 sq-mm conductor cross section
  • = 1 m ohm contact resistance
  • 0.5 N-m tightening torque
  • RAL 7032 pebble grey material
  • PE contact
  • 10B size

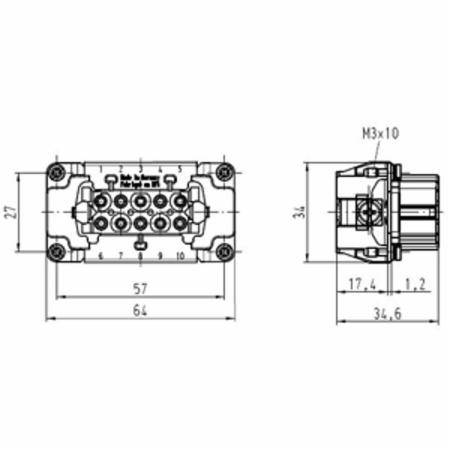

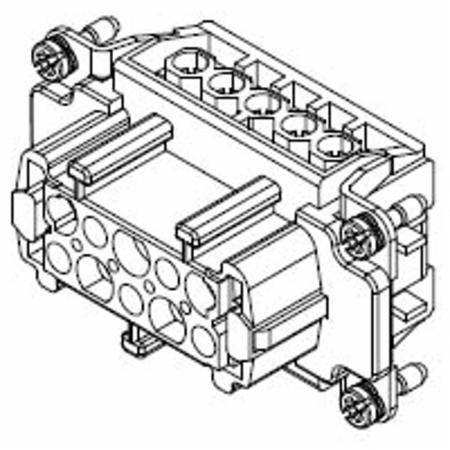

HARTIN_09_33_010_2701_CAD
HARTINE00065_03_5
Qty Unit price
Ea
1 $8.78

Slqt
1 $8.78

Stpk
1 $8.78

Unit
1 $8.78
