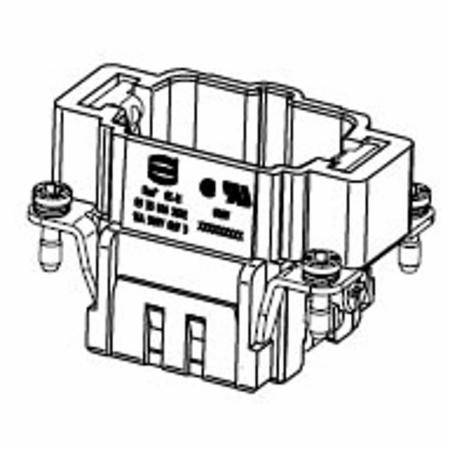

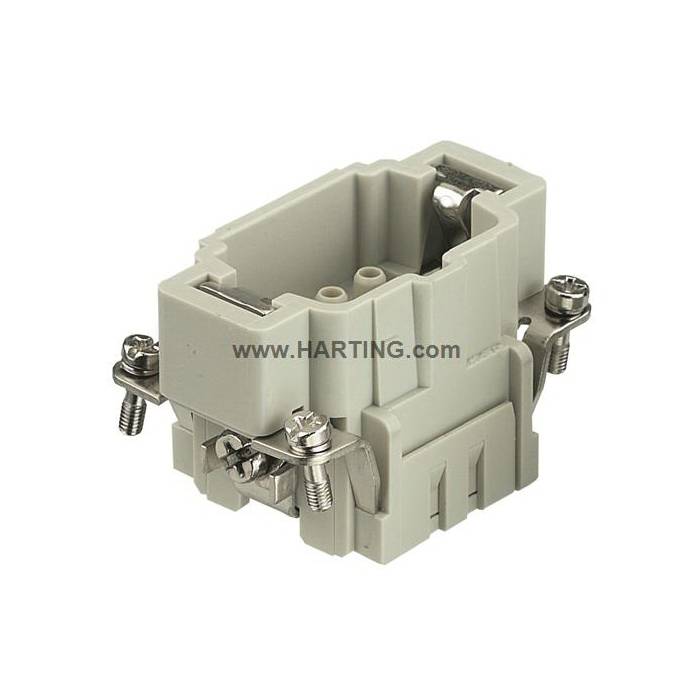

HARTING® 09 33 006 2602 Han E® Terminal Insert, 6 Positions, 20 to 12 AWG Wire, Crimp/Male Connection, Polycarbonate
HARTING® 09 33 006 2602 Han E® Terminal Insert, 6 Positions, 20 to 12 AWG Wire, Crimp/Male Connection, Polycarbonate
HARTING® 09 33 006 2602 Han E® Terminal Insert, 6 Positions, 20 to 12 AWG Wire, Crimp/Male Connection, Polycarbonate
HARTING® 09 33 006 2602 Han E® Terminal Insert, 6 Positions, 20 to 12 AWG Wire, Crimp/Male Connection, Polycarbonate
HARTING® 09 33 006 2602 Han E® Terminal Insert, 6 Positions, 20 to 12 AWG Wire, Crimp/Male Connection, Polycarbonate
HARTING® 09 33 006 2602 Han E® Terminal Insert, 6 Positions, 20 to 12 AWG Wire, Crimp/Male Connection, Polycarbonate
HARTING® 09 33 006 2602 Han E® Terminal Insert, 6 Positions, 20 to 12 AWG Wire, Crimp/Male Connection, Polycarbonate
HARTING® 09 33 006 2602 Han E® Terminal Insert, 6 Positions, 20 to 12 AWG Wire, Crimp/Male Connection, Polycarbonate
Share Share Print Print
Harting

HARTING® 09 33 006 2602 Han E® Terminal Insert, 6 Positions, 20 to 12 AWG Wire, Crimp/Male Connection, Polycarbonate

Short Description

51 MM x 34 MM, 6-Contact, 500 V, 16 A, Polycarbonate, Crimp Termination, Male, Industrial Connector Insert

HARTING® Terminal Insert, Series: Han E®, 6 Positions, 20 to 12 AWG Wire, Crimp/Male Connection, -40 to 125 deg C, Specifications: 16 A Rated, 500 VAC Rated, 6 kV Rated Impulse, 6B Size, Polycarbonate, Pebble Gray, 50.85 mm L x 33.3 mm W x 33.9 mm H Dimensions
MFG #: 09 33 006 2602

EECO #: HG09330062602

Brand: HARTING®
Attributes
Features
Documents
Product Information
Attributes
Color
Pebble Gray
UNSPSC
39121400
Used On
Industrial Connector
Material
Polycarbonate
Wire Size
20 to 12
Current Rating
16 Amp
Connection Type
Crimp/Male
Temperature Rating
-40 to 125
Series
Han E®
Dimensions
50.85 mm L x 33.3 mm W x 33.9 mm H
Specifications
16 A Rated, 500 VAC Rated, 6 kV Rated Impulse, 6B Size
Number of Contacts
6
Features
  • 3 deg pollution
  • RAL 7032 pebble gray
  • >/= 500 mating cycles
  • 600 VAC rated according to UL/CSA
  • PE contact
  • 0.14 to 4 sq-mm conductor cross-section
HARTIN_09_33_006_2602_CAD
HARTINE00064_03_4

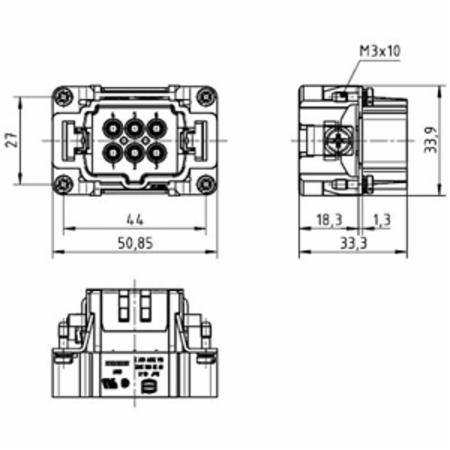

HARTING_09_33_006_2602_Full_Engineering_Drawing
Qty Unit price
Ea
1 $6.30

Slqt
1 $6.30

Stpk
1 $63.00

Unit
1 $6.30
