Harting

HARTING® 09 31 006 2601 Han® HSB Terminal Insert, 6 Positions, 10 AWG Wire, Male Screw Connection, Polycarbonate

Short Description

77.5 MM x 34 MM, 6-Contact, 400/500/690 V, 35 A, Polycarbonate, Screw Termination, Female, Industrial Connector Insert

HARTING® Terminal Insert, Series: Han® HSB, 6 Positions, 10 AWG Wire, Male Screw Connection, -40 to 125 deg C, Specifications: 35 A Rated Current 6 kV Rated Impulse Voltage, Polycarbonate, Pebble Gray, 84.5 mm L x 34 mm W x 77.5 mm D Dimensions
MFG #: 09 31 006 2601

EECO #: HG09310062601

Brand: HARTING®
UPC #: 999999047069
Attributes
Features
Documents
Product Information
Attributes
Color
Pebble Gray
UNSPSC
39121400
Used On
Industrial Connector
Material
Polycarbonate
Wire Size
10
Current Rating
35 Amp
Connection Type
Male Screw
Temperature Rating
-40 to 125
Series
Han® HSB
Dimensions
84.5 mm L x 34 mm W x 77.5 mm D
Specifications
35 A Rated Current 6 kV Rated Impulse Voltage
Number of Contacts
6
Features
  • V-0 flammability according to UL 94
  • = 500 mating cycles
  • = 1010 ohm insulation resistance
  • 600 V rated voltage according to UL/ CSA
  • 3 deg pollution
  • 690 V rated voltage conductor-conductor
  • 400 V rated voltage conductor-ground
  • 1.5 to 6 sq-mm conductor cross section
  • = 1 mOhm contact resistance
  • 0.5 N-m tightening torque
  • Copper alloy material
  • RAL 7032 pebble grey material
  • 16B size
HARTIN_09_31_006_2601_CAD
HARTINE00056_07_3
HARTINE00105_00_4_07_2_07_4

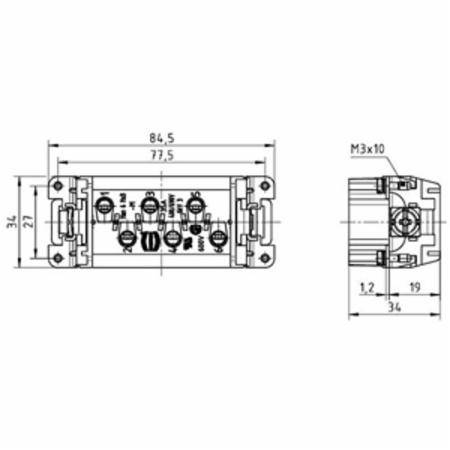

HARTING_09_31_006_2601_Line_Drawing
Qty Unit price
Ea
1 $20.75

Slqt
1 $20.75

Stpk
1 $207.50

Unit
1 $20.75
