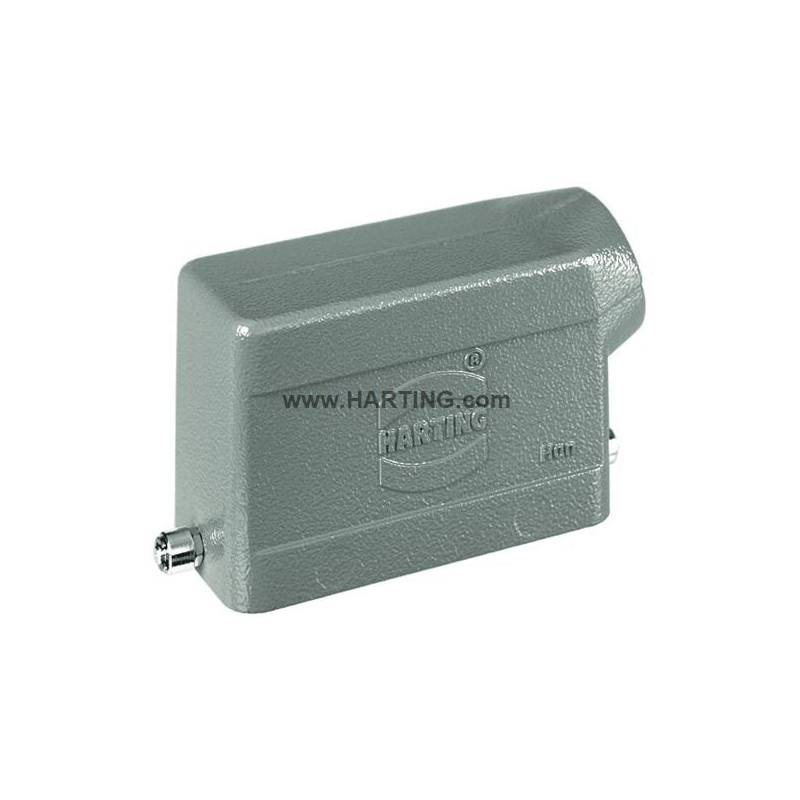

HARTING® 09 30 016 1540 Han® B Low Construction Connector Hood, Side, Die Cast Aluminum
Share Share Print Print
Harting

HARTING® 09 30 016 1540 Han® B Low Construction Connector Hood, Side, Die Cast Aluminum

Short Description

Elevate your connectivity with the HARTING® Han® B Low Construction Connector Hood, designed for durability and performance. Crafted from die-cast aluminum, this side entry hood is perfect for use with the Han® 16B insert and base, ensuring reliable connections in challenging environments. With a temperature range of -40 to 125 degrees Celsius, it's built to withstand the elements while maintaining a sleek dust gray powder-coated finish. Ideal for various applications, this connector hood combines functionality with robust design.Enhanced by AI

HARTING® Connector Hood, Low Construction, Series: Han® B, Side Entry Position, For Use With: Han® 16B Insert and Base, -40 to 125 deg C, Die Cast Aluminum, Dust Gray, Powder Coated, 112 mm L x 43 mm W x 62.5 mm H

MFG #: 09 30 016 1540

EECO #: HG09300161540

Brand: HARTING®
Attributes
Features
Documents
Product Information
Attributes
Color
Dust Gray
Finish
Powder Coated
UNSPSC
39121400
Material
Die Cast Aluminum
Application
Industrial Connectors
Temperature Rating
-40 to 125
Type
Low Construction
Series
Han® B
Warranty
2 Years
Dimensions
112 mm L x 43 mm W x 62.5 mm H
Suitable For Use With
Han® 16B Insert and Base
Features
  • Single locking lever
  • 1 x PG21 cable gland
  • IP65 degree of protection according to IEC 60529
  • NEMA 4/4X/12 degree of protection according to UL 50
  • RAL 7037 dust gray
