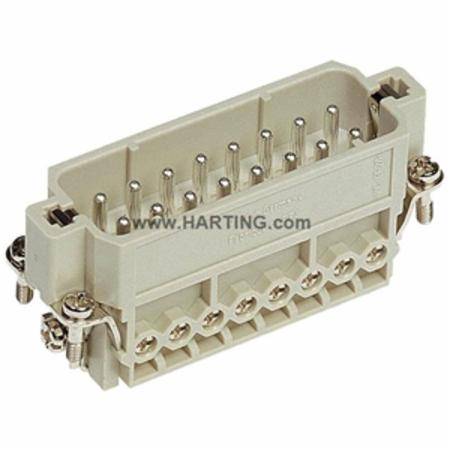

HARTING® 09 20 016 2612 Han A® Terminal Insert, 16 Positions, 18 to 14 AWG Wire, Male Screw Connection, Polycarbonate

Short Description

66 MM x 33 MM, 16-Contact, 250 V, 16 A, Polycarbonate, Screw Termination, Male, Industrial Connector Insert

HARTING® Terminal Insert, Series: Han A®, 16 Positions, 18 to 14 AWG Wire, Male Screw Connection, -40 to 125 deg C, Specifications: 16 A Rated Current 4 kV Rated Impulse Voltage, Polycarbonate, Pebble Gray, 72.4 mm L x 32.8 mm W x 66 mm D Dimensions
MFG #: 09 20 016 2612

EECO #: HG09200162612

Brand: HARTING®
UPC #: 999999109866
Attributes
Features
Documents
Product Information
Attributes
Color
Pebble Gray
UNSPSC
39121400
Used On
Industrial Connector
Material
Polycarbonate
Wire Size
18 to 14
Current Rating
16 Amp
Connection Type
Male Screw
Temperature Rating
-40 to 125
Series
Han A®
Dimensions
72.4 mm L x 32.8 mm W x 66 mm D
Specifications
16 A Rated Current 4 kV Rated Impulse Voltage
Number of Contacts
16
Features
  • V-0 flammability according to UL 94
  • = 500 mating cycles
  • = 1010 ohm insulation resistance
  • 600 V rated voltage according to UL
  • 3 deg pollution
  • 250 V rated voltage
  • 0.75 - 2.5 sq-mm conductor cross section
  • Copper alloy material
  • 0.5 N-m tightening torque
  • RAL 7032 pebble grey material
  • PE contact
  • 10A size
  • Silver plated contact
HARTIN_09_20_016_2612_CAD
HARTINE00052_01_7

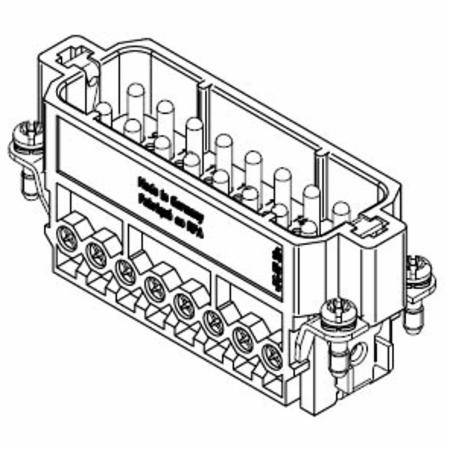

HARTING_09_20_016_2612_Line_Drawing
Qty Unit price
Ea
1 $12.90

Slqt
1 $12.90

Stpk
1 $129.00

Unit
1 $12.90
