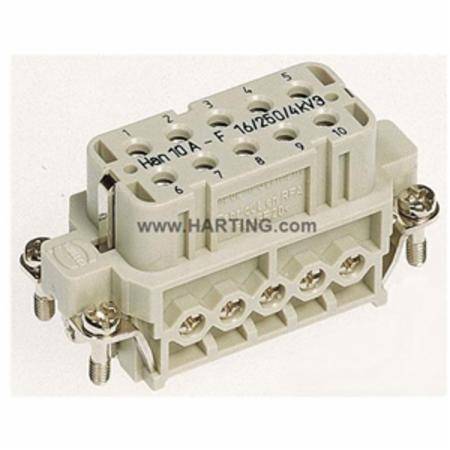

HARTING® 09 20 010 2812 Han A® Terminal Insert, 10 Positions, 18 to 14 AWG Wire, Female Screw Connection, Polycarbonate
HARTING® 09 20 010 2812 Han A® Terminal Insert, 10 Positions, 18 to 14 AWG Wire, Female Screw Connection, Polycarbonate
HARTING® 09 20 010 2812 Han A® Terminal Insert, 10 Positions, 18 to 14 AWG Wire, Female Screw Connection, Polycarbonate
HARTING® 09 20 010 2812 Han A® Terminal Insert, 10 Positions, 18 to 14 AWG Wire, Female Screw Connection, Polycarbonate
HARTING® 09 20 010 2812 Han A® Terminal Insert, 10 Positions, 18 to 14 AWG Wire, Female Screw Connection, Polycarbonate
HARTING® 09 20 010 2812 Han A® Terminal Insert, 10 Positions, 18 to 14 AWG Wire, Female Screw Connection, Polycarbonate
HARTING® 09 20 010 2812 Han A® Terminal Insert, 10 Positions, 18 to 14 AWG Wire, Female Screw Connection, Polycarbonate
HARTING® 09 20 010 2812 Han A® Terminal Insert, 10 Positions, 18 to 14 AWG Wire, Female Screw Connection, Polycarbonate
Share Share Print Print
Harting

HARTING® 09 20 010 2812 Han A® Terminal Insert, 10 Positions, 18 to 14 AWG Wire, Female Screw Connection, Polycarbonate

Short Description

56 MM x 23 MM x 30 MM, 10-Contact, 250/600 V, 16 A, Polycarbonate, Screw Termination, Female, Industrial Connector Insert

HARTING® Terminal Insert, Series: Han A®, 10 Positions, 18 to 14 AWG Wire, Female Screw Connection, -40 to 125 deg C, Specifications: 16 A Rated Current 4 kV Rated Impulse Voltage, Polycarbonate, Pebble Gray, 55.9 mm L x 30.1 mm W x 49.5 mm D Dimensions
MFG #: 09 20 010 2812

EECO #: HG09200102812

Brand: HARTING®
UPC #: 999999420237
Attributes
Features
Documents
Product Information
Attributes
Color
Pebble Gray
UNSPSC
39121400
Used On
Industrial Connector
Material
Polycarbonate
Wire Size
18 to 14
Current Rating
16 Amp
Connection Type
Female Screw
Temperature Rating
-40 to 125
Series
Han A®
Dimensions
55.9 mm L x 30.1 mm W x 49.5 mm D
Specifications
16 A Rated Current 4 kV Rated Impulse Voltage
Number of Contacts
10
Features
  • V-0 flammability according to UL 94
  • = 500 mating cycles
  • = 1010 ohm insulation resistance
  • 600 V rated voltage according to UL
  • 3 deg pollution
  • 250 V rated voltage
  • 0.75 - 2.5 sq-mm conductor cross section
  • Copper alloy material
  • 0.5 N-m tightening torque
  • RAL 7032 pebble grey material
  • PE contact
  • 10A size
  • Silver plated contact
HARTIN_09_20_010_2812_CAD
HARTINE00051_01_6
HARTING_09_20_010_2812_Line_Drawing
Qty Unit price
Ea
1 $10.40

Slqt
1 $10.40

Stpk
1 $104.00

Unit
1 $10.40
