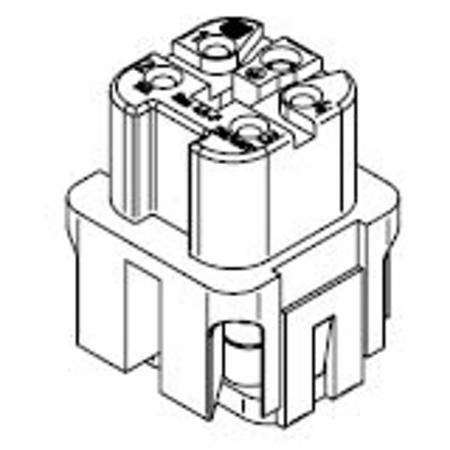

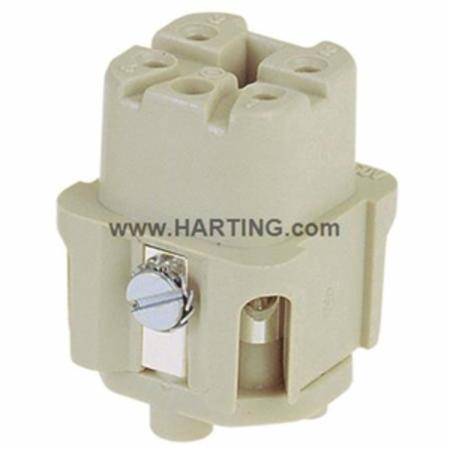

HARTING® 09 20 004 2711 Han A® Terminal Insert, 4 Positions, 18 to 14 AWG Wire, Female Screw Connection, Polycarbonate

Short Description

21 MM x 27 MM, 4-Contact, 230/400/600 V, 10 A, Polycarbonate, Female, Industrial Connector Insert

HARTING® Terminal Insert, Series: Han A®, 4 Positions, 18 to 14 AWG Wire, Female Screw Connection, -40 to 125 deg C, Specifications: 10 A Rated, 4 kV Rated Impulse Voltage, Polycarbonate, Pebble Gray, 29.7 mm L x 26.9 mm W Dimensions
MFG #: 09 20 004 2711

EECO #: HG09200042711

Brand: HARTING®
UPC #: 999999046642
Attributes
Features
Documents
Product Information
Attributes
Color
Pebble Gray
UNSPSC
39121402
Used On
Industrial Connector
Material
Polycarbonate
Wire Size
18 to 14
Current Rating
10 Amp
Connection Type
Female Screw
Temperature Rating
-40 to 125
Series
Han A®
Dimensions

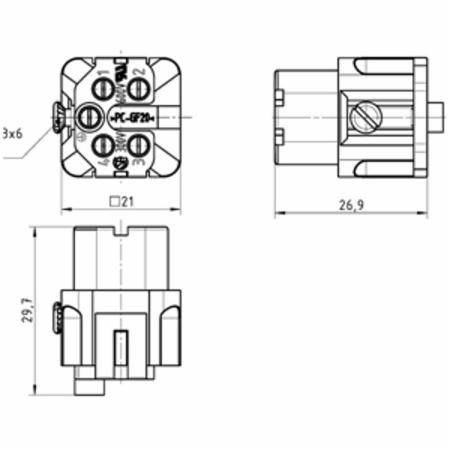

29.7 mm L x 26.9 mm W
Specifications
10 A Rated, 4 kV Rated Impulse Voltage
Number of Contacts
4
Features
  • UL 94 V-0 flammability rating
  • =500 mating cycles
  • =1010 Ohm insulation resistance
  • 600 VAC rated voltage according to UL listed
  • 3 deg pollution
  • 400 VAC rated voltage conductor-conductor
  • 230 V rated voltage conductor ground
  • 0.75 to 1.5 sq-mm conductor cross section
  • Copper alloy material
  • RAL 7032 pebble grey material
  • 0.25 N-m tightening torque
  • 3A size
  • Silver plated contact
  • 2.5 to 5.5 mm stripping length
HARTIN_09_20_004_2711_CAD
HARTINE00050_01_102
HARTING_09_20_004_2711_Line_Drawing
HARTING_09_20_004_2711_Specification_Sheet
Qty Unit price
Ea
1 $6.38

Slqt
1 $6.38

Stpk
1 $63.80

Unit
1 $6.38
