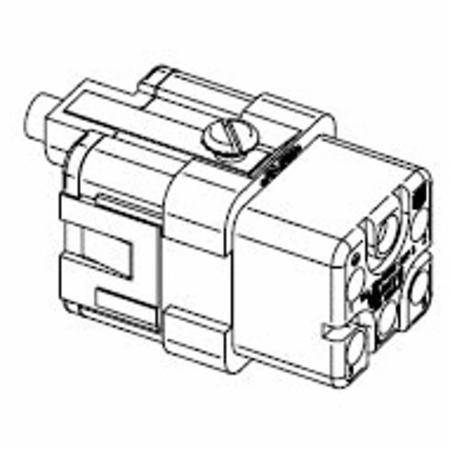

HARTING® 09 12 005 3101 Han® Q Terminal Insert, 5 Positions, 20 to 14 AWG Wire, Crimp/Female Connection, Polycarbonate

Short Description

230/400 V, 16 A, 5-Contact, Pebble Gray, Polycarbonate, Female, Crimp Termination, Industrial Connector Insert

HARTING® Terminal Insert, Series: Han® Q, 5 Positions, 20 to 14 AWG Wire, Crimp/Female, -40 to 125 deg C, 16 A Rated Current 4 kV Rated Impulse Voltage, Polycarbonate, Pebble Gray, 40.1 mm L
MFG #: 09 12 005 3101

EECO #: HG09120053101

Brand: HARTING®
UPC #: 999999044341
Attributes
Features
Documents
Product Information
Attributes
Color
Pebble Gray
UNSPSC
39121400
Used On
Industrial Connector
Material
Polycarbonate
Wire Size
20 to 14
Current Rating
16 Amp
Connection Type
Crimp/Female
Temperature Rating
-40 to 125
Series
Han® Q
Dimensions
40.1 mm L
Specifications
16 A Rated Current 4 kV Rated Impulse Voltage
Number of Contacts
5
Features
  • V-0 flammability according to UL 94
  • 3 deg pollution
  • 600 V rated voltage according to UL/ CSA
  • 400 V rated voltage conductor-conductor
  • 230 V rated voltage conductor-ground
  • 0.14 - 2.5 sq-mm conductor cross section
  • = 1010 ohm insulation resistance
  • RAL 7032 pebble grey material
  • PE contact
  • 3A size
HARTIN_09_12_005_3101_CAD
HARTINE00040_4_30
HARTINE00105_00_4_13_21_13_22_25_8
HARTING_09_12_005_3101_Line_Drawing
Qty Unit price
Ea
1 $5.31

Slqt
1 $5.31

Stpk
1 $53.10

Unit
1 $5.31
