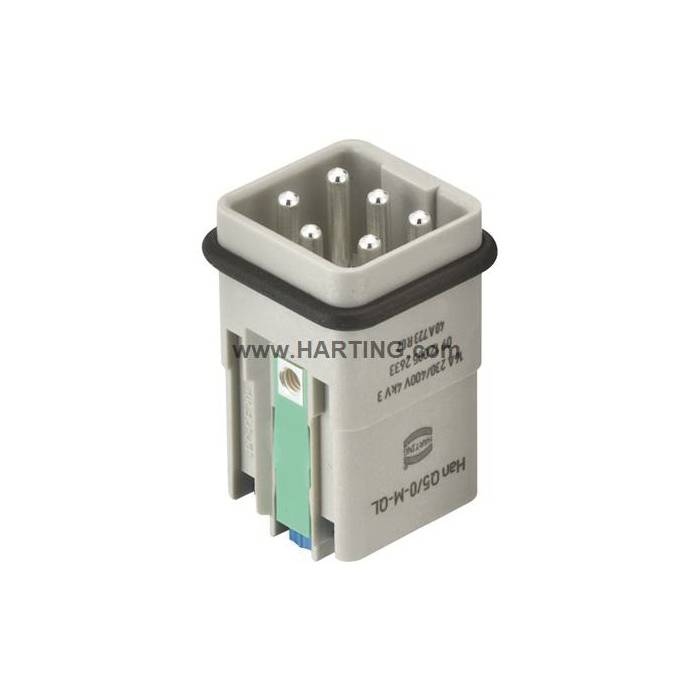

HARTING® 09 12 005 2633 Han® Q Terminal Insert, 5 Positions, 20 to 14 AWG Wire, Han-Quick Lock®/Male Connection, Polycarbonate

Short Description

21 MM x 37.95 MM, 5-Contact, 230/400/600 V, 16 A, Pebble Gray Polycarbonate Insert, Silver Plated Copper Alloy Contact, Han-Quick Lock Termination, Insert, Male, Industrial Connector Insert

HARTING® Terminal Insert, Series: Han® Q, 5 Positions, 20 to 14 AWG Wire, Han-Quick Lock®/Male Connection, -40 to 125 deg C, Specifications: 16 A Rated, 230 VAC Rated Conductor to Earth, 400 VAC Rated Conductor to Conductor, 4 kV Rated Impulse, 3A Size, Polycarbonate, Pebble Gray, 37.9 mm L x 21 mm W Dimensions
MFG #: 09 12 005 2633

EECO #: HG09120052633

Brand: HARTING®
Attributes
Features
Documents
Product Information
Attributes
Color
Pebble Gray
UNSPSC
39121400
Used On
Industrial Connector
Material
Polycarbonate
Wire Size
20 to 14
Current Rating
16 Amp
Connection Type
Han-Quick Lock®/Male
Temperature Rating
-40 to 125
Size
21 Millimeter Length x 37.95 Millimeter Height
Type
Insert, Male
Series
Han® Q
Dimensions
37.9 mm L x 21 mm W
Specifications
16 A Rated, 230 VAC Rated Conductor to Earth, 400 VAC Rated Conductor to Conductor, 4 kV Rated Impulse, 3A Size
Number of Contacts
5
Features
  • V-0 flammability according to UL 94
  • 3 deg pollution
  • RAL 7032 pebble gray
  • >/= 500 mating cycles
  • </= 1 mOhm contact resistance
  • 600 VAC rated according to UL/CSA
  • Silver plated contact surface
  • Copper alloy contact material
  • PE contact
  • Blue slide
  • 0.5 to 2.5 sq-mm conductor cross-section
HartingTechnologyGroup_00023_440_723_CAT
HartingTechnologyGroup_00027_1_2_DATA
HartingTechnologyGroup_00041_1_CAD
HARTING_09_12_005_2633_Full_Engineering_Drawing
Qty Unit price
Ea
1 $10.85

Slqt
1 $10.85

Stpk
1 $108.50

Unit
1 $10.85
