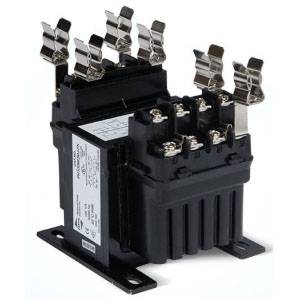

480/240 VAC, Hammond Power Solutions PH75MLI HPS Imperator® Encapsulated Industrial Control Transformer, 440/220/200 VAC Primary, 110/23 VAC Secondary
Share Share Print Print
Hammond Power Solutions

480/240 VAC, Hammond Power Solutions PH75MLI HPS Imperator® Encapsulated Industrial Control Transformer, 440/220/200 VAC Primary, 110/23 VAC Secondary

NOTICE: This item has been flagged as discontinued. Limited stock may be available. Please note that this item is subject to removal from your order if it is unfulfillable.
Short Description

480/240 VAC, 460/230/208 VAC, 440/220/200 VAC Primary, 120/25 VAC, 115/24 VAC, 110/23 VAC Secondary, 50/60 Hz, 75 VA, Screw Terminal, 0.44" x 0.22" Slot, Encapsulated Industrial Control Transformer

Encapsulated Industrial Control Transformer; Primary Voltage 480/240 Volt AC, 460/230/208 Volt AC, 440/220/200 Volt AC; Secondary Voltage 120/25 Volt AC, 115/24 Volt AC, 110/23 Volt AC; Frequency Rating 50/60 Hertz; Power Rating 75 Volt Amp; Insulation Class 105; Terminal Type Screw; Temperature Rise 55 Deg C; Mounting 0.44 Inch Length x 0.22 Inch Width Slot; Size 3.25 Inch Width x 4.25 Inch Depth x 3.56 Inch Height; Approval UL (Canada and US), UL 506, CE; Applicable Standard ANSI 506, IEC 61558, NEMA ST-1; RoHS Compliant; Output Current Rating 0.65/3.13 Amp; Mounting Feet Material Heavy Steel; Application Process Control, Panel Shop, Machine Automation, Control Board, HVAC Panel, Power Timer, Solenoid, Controller, Paper Mill and Printing

MFG #: PH75MLI

EECO #: HAMPH75MLI

Brand: Hammond
UPC #: 803423078348
Discontinued
Attributes
Features
Documents
Product Information
Attributes
UNSPSC
39121027
Approval
UL (Canada and US), UL 506, CE
Power Rating
75 Volt Amp
Terminal Type
Screw
Frequency Rating
50/60 Hertz
Insulation Class
105
Mounting
0.44 Inch Length x 0.22 Inch Width Slot
Temperature Rise
55 Deg C
Size
3.25 Inch Width x 4.25 Inch Depth x 3.56 Inch Height
Primary Voltage
480/240 Volt AC, 460/230/208 Volt AC, 440/220/200 Volt AC
Secondary Voltage
120/25 Volt AC, 115/24 Volt AC, 110/23 Volt AC
Applicable Standard
ANSI 506, IEC 61558, NEMA ST-1
Features
  • 600 Volt Class Rated Industrial Control Transformer
  • Constructed with High Quality Silicon Steel Laminations that Provide Optimum Performance and Reliability
  • Encapsulated Coils Encased in a Custom Injection Molded Cover, Protect Coils and Terminations from Moisture, Dirt and Other Industrial Airborne Contaminants
  • Mounting Foot Made of Heavy Steel and Welded or Bolted to the Core these Mounting Feet Provide Superior Strength in a Compact Design
  • Innovative Terminal Block Design Provides for Easy Hook-Up and Installation of Fuse Clips
  • Lifetime Warranty
  • RoHS Compliant
Qty Unit price
Ea
1 $44.55

Slqt
1 $44.55

Stpk
1 $44.55

Unit
1 $44.55
