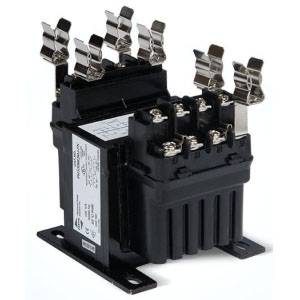

120 x 240 VAC, Hammond Power Solutions PH100PG-FK HPS Imperator® Encapsulated Industrial Control Transformer, 110 x 220 VAC Primary, 11 x 22 VAC Secondary
Share Share Print Print
Hammond Power Solutions

120 x 240 VAC, Hammond Power Solutions PH100PG-FK HPS Imperator® Encapsulated Industrial Control Transformer, 110 x 220 VAC Primary, 11 x 22 VAC Secondary

Short Description

120 x 240 VAC, 115 x 230 VAC, 110 x 220 VAC Primary, 12 x 24 VAC, 11.5 x 23 VAC, 11 x 22 VAC Secondary, 50/60 Hz, 100 VA, Screw Terminal, 0.44" x 0.22" Slot, Encapsulated Industrial Control Transformer

Encapsulated Industrial Control Transformer; Primary Voltage 120 x 240 Volt AC, 115 x 230 Volt AC, 110 x 220 Volt AC; Secondary Voltage 12 x 24 Volt AC, 11.5 x 23 Volt AC, 11 x 22 Volt AC; Frequency Rating 50/60 Hertz; Power Rating 100 Volt Amp; Insulation Class 105; Terminal Type Screw; Temperature Rise 55 Deg C; Mounting 0.44 Inch Length x 0.22 Inch Width Slot; Size 3.25 Inch Width x 4.19 Inch Depth x 3.63 Inch Height; Approval UL (Canada and US), UL 506, CE; Applicable Standard ANSI 506, IEC 61558, NEMA ST-1; RoHS Compliant; Output Current Rating 8.33/4.17 Amp; Mounting Feet Material Heavy Steel; Application Process Control, Panel Shop, Machine Automation, Control Board, HVAC Panel, Power Timer, Solenoid, Controller, Paper Mill and Printing; Includes Primary and Secondary Fuse Kit

MFG #: PH100PG-FK

EECO #: HAMPH100PGFK

Brand: Hammond
UPC #: 803423081805
Attributes
Features
Documents
Product Information
Attributes
UNSPSC
39121027
Approval
UL (Canada and US), UL 506, CE
Power Rating
100 Volt Amp
Terminal Type
Screw
Frequency Rating
50/60 Hertz
Insulation Class
105
Mounting
0.44 Inch Length x 0.22 Inch Width Slot
Temperature Rise
55 Deg C
Size
3.25 Inch Width x 4.19 Inch Depth x 3.63 Inch Height
Primary Voltage
120 x 240 Volt AC, 115 x 230 Volt AC, 110 x 220 Volt AC
Secondary Voltage
12 x 24 Volt AC, 11.5 x 23 Volt AC, 11 x 22 Volt AC
Applicable Standard
ANSI 506, IEC 61558, NEMA ST-1
Features
  • 600 Volt Class Rated Industrial Control Transformer
  • Constructed with High Quality Silicon Steel Laminations that Provide Optimum Performance and Reliability
  • Encapsulated Coils Encased in a Custom Injection Molded Cover, Protect Coils and Terminations from Moisture, Dirt and Other Industrial Airborne Contaminants
  • Mounting Foot Made of Heavy Steel and Welded or Bolted to the Core these Mounting Feet Provide Superior Strength in a Compact Design
  • Innovative Terminal Block Design Provides for Easy Hook-Up and Installation of Fuse Clips
  • Lifetime Warranty
  • RoHS Compliant
HAMPH100PGFKCAT
Qty Unit price
Ea
1 $52.87

Slqt
1 $52.87

Stpk
1 $52.87

Unit
1 $52.87
