Hammond Power Solutions

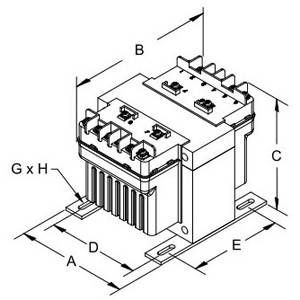

1000 VA, Hammond Power Solutions PH1000MQMJ-FK HPS Imperator® Encapsulated Industrial Control Transformer, 220 x 440 VAC Primary, 110 x 220 VAC Secondary

Short Description

1000 VA, 240 x 480 VAC, 230 x 460 VAC, 220 x 440 VAC Primary, 120 x 240 VAC, 115 x 230 VAC, 110 x 220 VAC Secondary, 50/60 Hz, Screw Terminal, 0.81" x 0.31" Slot, Encapsulated Industrial Control Transformer

Encapsulated Industrial Control Transformer; Primary Voltage 240 x 480 Volt AC, 230 x 460 Volt AC, 220 x 440 Volt AC; Secondary Voltage 120 x 240 Volt AC, 115 x 230 Volt AC, 110 x 220 Volt AC; Frequency Rating 50/60 Hertz; Power Rating 1000 Volt Amp; Insulation Class 130; Terminal Type Screw; Temperature Rise 80 Deg C; Mounting 0.81 Inch Length x 0.31 Inch Width Slot; Size 5.25 Inch Width x 6.81 Inch Depth x 4.94 Inch Height; Approval UL 506, UL (Canada and US), CE; Applicable Standard ANSI 506, IEC 61558, NEMA ST-1; RoHS Compliant; Output Current 8.33/4.17 Amp; Mounting Feet Material Heavy Steel; Includes Primary and Secondary Fuse Kit; Application Process Control, Panel Shop, Machine Automotive, Control Board, HVAC Panel, Power Timer, Solenoid, Controller, Paper Mill and Printing

MFG #: PH1000MQMJ-FK

EECO #: HAMPH1000MQMJFK

Brand: Hammond
UPC #: 803423081973
Attributes
Features
Documents
Product Information
Attributes
UNSPSC
39121027
Approval
UL 506, UL (Canada and US), CE
Power Rating
1000 Volt Amp
Terminal Type
Screw
Frequency Rating
50/60 Hertz
Insulation Class
130
Mounting
0.81 Inch Length x 0.31 Inch Width Slot
Temperature Rise
80 Deg C
Size
5.25 Inch Width x 6.81 Inch Depth x 4.94 Inch Height
Primary Voltage
240 x 480 Volt AC, 230 x 460 Volt AC, 220 x 440 Volt AC
Secondary Voltage
120 x 240 Volt AC, 115 x 230 Volt AC, 110 x 220 Volt AC
Applicable Standard
ANSI 506, IEC 61558, NEMA ST-1
Features
  • 600 V Class Rated Industrial Control Transformers
  • 11 Standard Multi Primary and Secondary Voltage Groups Available
  • Constructed with High Quality Silicon Steel Laminations that Provide Optimum Performance and Reliability
  • Encapsulated Coils Encased in a Custom Injection Molded Cover, Protect Coils and Terminations from Moisture, Dirt and Other Industrial Airborne Contaminants
  • Mounting Feet Made of Heavy Steel and Welded or Bolted to the Core these Mounting Feet Provide Superior Strength in a Compact Design
  • Innovative Terminal Block Design Provides for Easy Hook-Up and Installation of Fuse Clips
  • Optional Removable Finger Safe Terminal Covers Available on all Standard Units
  • Lifetime Warranty
  • RoHS Compliant
HAMMNDE07265_3_6
HAMMONE00006_28_34_35_37
Qty Unit price
Ea
1 $177.61

Slqt
1 $177.61

Stpk
1 $177.61

Unit
1 $177.61
