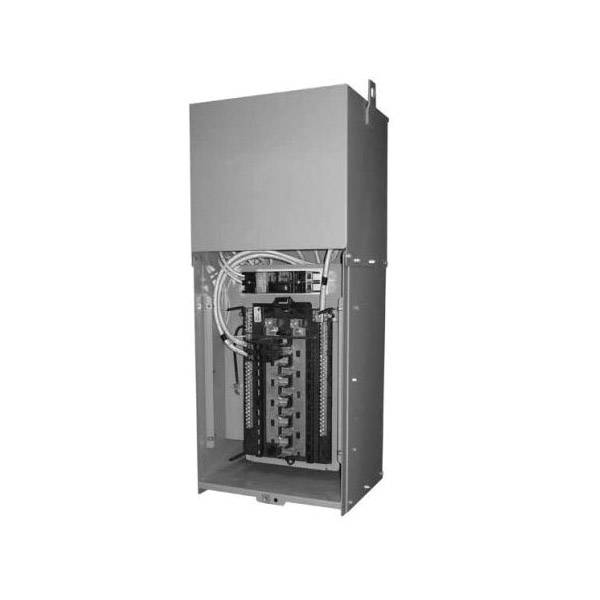

HPS M1PC005LESF7 PowerPlus™ Mini Power Center With Encapsulated Transformer, 480 VAC Primary, 120/240 VAC Secondary, 5 kVA Power Rating, 60 Hz, 1 Phase

Short Description

HPS PowerPlus™ is a convenient pre-wired power center that saves you time, money and space. HPS PowerPlus™ combines a pre-wired primary and secondary breaker, secondary power panel and dry type shielded transformer in a Type 3R enclosure. Simply add the required branch circuit breakers and you effortlessly have a power center that is ready for indoor or outdoor use.

HPS, M1PC005LESF7, Mini Power Center With Encapsulated Transformer, Series: PowerPlus™, 480 VAC Primary, 120/240 VAC Secondary, 5 kVA Power, 60 Hz Frequency, 1 ph, 2 Taps, Copper Tab/Wire Lead Connection, Floor Mounting, 180 deg C Insulation, NEMA 3R Enclosure, 30 to 40 deg C, 316 Stainless Steel Housing Material, 31.938 in H x 11.25 in W x 7.75 in D Dimensions
MFG #: M1PC005LESF7

EECO #: HAMM1PC005LESF7

Brand: HPS
UPC #: 803423115241
Attributes
Features
Documents
Product Information
Attributes
Phase
1
UNSPSC
39121001
Application
For industrial locations, temporary power at construction sites, commercial buildings, test equipment, plant assembly lines, locations accessible to the public and indoor/outdoor applications
Power Rating
5
Mounting Type
Floor
Enclosure Type
NEMA 3R
Number of Taps
2.0000
Connection Type
Copper Tab/Wire Lead
Frequency Rating
60
Housing Material
316 Stainless Steel
Temperature Rating
30 to 40
Series
PowerPlus™
Warranty
1 year
Dimensions
31.938 in H x 11.25 in W x 7.75 in D
Primary Voltage
480
Secondary Voltage
120/240
Features
  • Combines a primary disconnect, shielded 1-phase transformer and output panel board in one system for easy, lockable installation in indoor or outdoor locations
  • HPS shielded transformers are encapsulated
  • An electrostatic shield is placed between the primary and secondary winding and grounded to reduce electrical interference and to provide additional protection
  • The HPS PowerPlus™ assembly comes fully equipped with a primary and secondary main circuit breaker
  • HPS PowerPlus™ accepts aluminum or copper conductors
  • The transformer is protected by the primary main breaker, which handles high interrupting fault conditions
  • 2 at 5% FCBN taps
