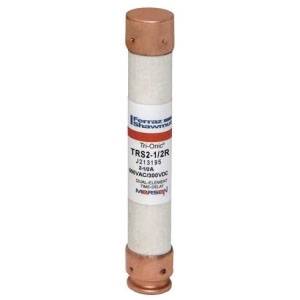

600 VAC/VDC 2.5 A, Class RK5, Mersen EP TRS2-1/2R Tri-Onic® Power Fuse, Time Delay, Ferrule Terminal
Share Share Print Print
Mersen

600 VAC/VDC 2.5 A, Class RK5, Mersen EP TRS2-1/2R Tri-Onic® Power Fuse, Time Delay, Ferrule Terminal

Short Description

0.81" x 5", 2.5 A, 600 VAC/VDC, 200 kA AC/20 kA DC, Ferrule Terminal, Time Delay, Class RK5, Power Fuse

Power Fuse; Type Class RK5; Characteristics Time Delay; Voltage Rating 600 Volt AC/DC; Current Rating 2.5 Amp; Interrupting Rating 200 Kiloamp (AC), 20 Kiloamp (DC); Terminal Type Ferrule; Diameter 0.81 Inch; Length 5 Inch; Approval UL 248-12, CSA C22.2; Mounting Type Clip; Material Fiberglass (Body), Copper (Terminal), High Grade Silica (Filler); Body Style Rejection; Application Motor Circuit, Mains, Feeder, Branch Circuit, Transformer, Service Entrance Equipment, General Purpose Equipment

MFG #: TRS2-1/2R

EECO #: GFTRS21/2R

Brand: Mersen
UPC #: 782001748661
Attributes
Features
Documents
Product Information
Attributes
UNSPSC
39121627
Approval
UL 248-12, CSA C22.2
Terminal Type
Ferrule
Current Rating
2.5 Amp
Voltage Rating
600 Volt AC/DC
Characteristics
Time Delay
Interrupting Rating
200 Kiloamp (AC), 20 Kiloamp (DC)
Type
Class RK5
Diameter
0.81 Inch
Features
  • Optional Solid-State Smartspot Indicator
  • Time-Delay for Motor Start-Ups and Transformer Inrush Currents without Nuisance Opening
  • Current Limiting for Low Peak Let-Thru Current
  • Rejection Style Design Prevents Replacement Error
  • Easy-to-Read Label for Quick Brand Recognition and Replacement
  • Metal-Embossed Date and Catalog Number for Easier Traceability and Lasting Identification
  • Fiberglass Body Provides Dimensional Stability in Harsh Industrial Environment
  • High Grade Silica Filler Ensures Fast Arc Quenching and High Current Limiting
Mersen_00086_191_CAT
Mersen_00090_PF12_PF13_DATA
Mersen_00104_1_CAD
Qty Unit price
Ea
1 $21.54

Slqt
1 $21.54

Stpk
1 $21.54

Unit
1 $21.54
