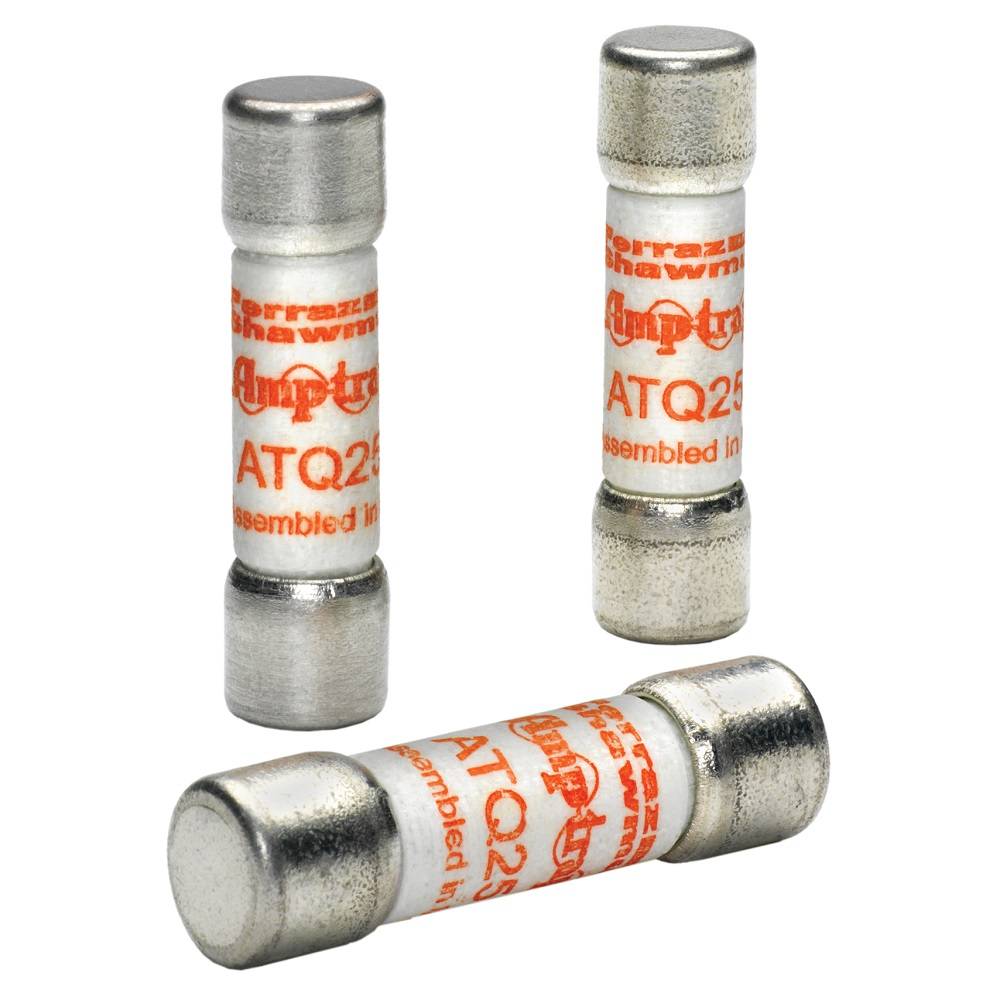

Mersen Amp-Trap® ATQ1/8 Low Voltage Time Delay Fuse, 0.125 A, 500 VAC, 10 kA, Class Midget, Cylindrical Body
Share Share Print Print
Mersen

Mersen Amp-Trap® ATQ1/8 Low Voltage Time Delay Fuse, 0.125 A, 500 VAC, 10 kA, Class Midget, Cylindrical Body

Short Description

Amp-Trap ATQ midget time-delay fuses are rated 500VAC with 42 ampere ratings from 1/10 to 30A. They are an excellent choice for supplemental protection of circuits where the available short circuit current does not exceed 10,000A. (Not for Branch Circuit Protection)

Mersen Amp-Trap® Time Delay Fuse, Low Voltage, Series: ATQ, Indicating/Non-Indicating: Non-Indicating, Rejection/Non-Rejection: Non-Rejection, 0.125 A, 500 VAC, 10 kA Interrupt, Class: Midget, Ferrule Terminal, Clip Mount, Cylindrical Body, Dual Element, Fiber, 13/32 in Dia x 1-1/2 in L Body Size
MFG #: ATQ1/8

EECO #: GFATQ1/8

Brand: Mersen
UPC #: 782001902698
Attributes
Features
Documents
Product Information
Attributes
Class
Midget
UNSPSC
39121609
Material
Fiber
Application
For supplemental protection of lighting, solenoid, motor and transformer circuits applications
Mounting Type
Clip
Terminal Type
Ferrule
Voltage Rating
500
Type
Low Voltage
Series
ATQ
Amperage Rating
0.125
Features
  • Numerous ratings for a wide variety of applications up to 500 VAC
  • Time-delay (12 sec at 200% rating) for circuits with high inrush current
  • Tin-plated copper contact
  • Can be used with UltraSafe™ fuse holders
Mersen_ATQ14_Specification_Sheet
Mersen_ATQ14_Line_Drawing
