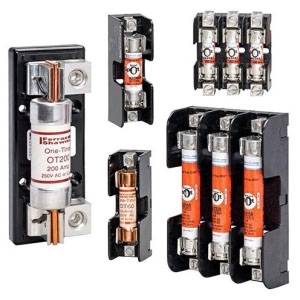

600 A, 600 VAC, Mersen EP 6631R Fuse Block, 1-Pole, Class R
Share Share Print Print
Mersen

600 A, 600 VAC, Mersen EP 6631R Fuse Block, 1-Pole, Class R

Short Description

4" x 4.74", 600 A, 600 VAC, Phenolic, 1-Pole, Class R, Fuse Block

Fuse Block; Material Phenolic; Number of Poles 1; Fuse Type Class R; Fuse Voltage Rating 600 Volt AC; Fuse Current Rating 600 Amp; Wire Size (2) 4 AWG to 500 KCMIL (Aluminum/Copper); Terminal Type Box Lug, Inline Clip; Clip Type Spring Reinforced; Approval UL, CSA; Clip Material Copper; Connector Torque 500 Inch Pound; Overall Dimension 4 Inch Width x 4.74 Inch Height

MFG #: 6631R

EECO #: GF6631R

Brand: Mersen
UPC #: 782001665128
Attributes
Features
Documents
Product Information
Attributes
UNSPSC
39121617
Approval
UL, CSA
Material
Phenolic
Wire Size
(2) 4 AWG to 500 KCMIL (Aluminum/Copper)
Terminal Type
Box Lug, Inline Clip
Number Of Poles
1
Fuse Voltage Rating
600 Volt AC
Clip Type
Spring Reinforced
Fuse Type
Class R
Fuse Current Rating
600 Amp
Features
  • A Choice of Screw, Pressure Plate, Box and Special Order Stud Connectors Fit a Wide Range of Stranded or Solid Copper or Aluminum Wire
  • Insulators are Either Molded Glass Filled Polycarbonate (GFPC) or Phenolic with Verified Dielectric Strength in Excess of 2500 Volt
  • All Fuse Clips are Made of High Conductivity Tin-Plated Copper, with a Choice of Spring Reinforced
