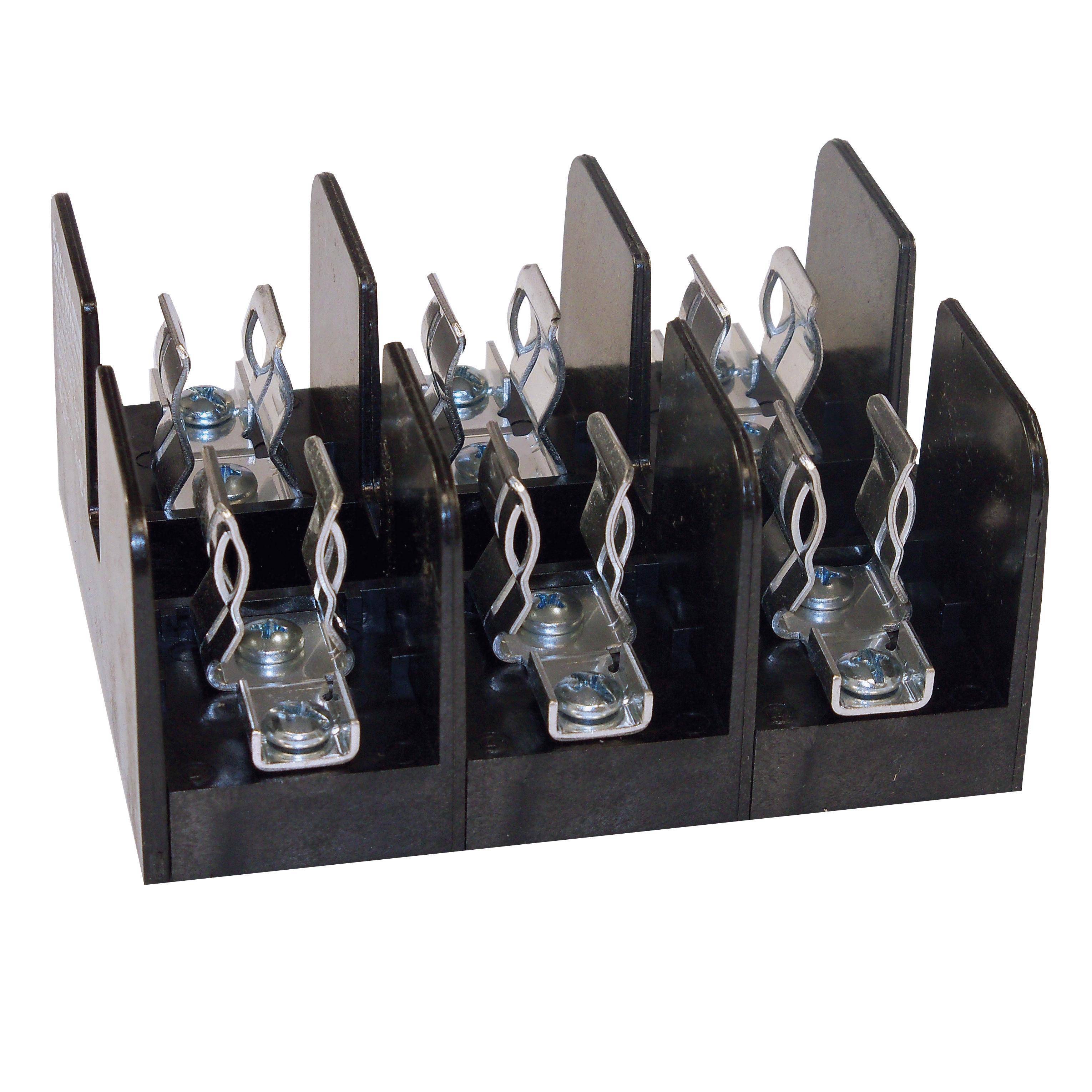

PrintMersen 60313J Open Style Fuse Block, 600 VAC/VDC, 30 A, Class J, 14 to 4 AWG Wire, 3 Poles
A choice of screw, pressure plate, box and special order stud connectors fit a wide range of stranded or solid copper or aluminum conductors. Insulators are either molded glass-filled polycarbonate (GFPC) or phenolic with verified dielectric strength in excess of 2500V. 30A, 60A and the new 100A SJ fuse blocks feature a unique adder block configuration which can be snapped onto 1-, 2-, or 3-pole blocks to form multi-pole segmented blocks of as many poles as desired. All fuse clips are made of high conductivity tin-plated copper, with a choice of spring-reinforced or non-spring reinforced clips. Space saving options are now available in the 30A and 100A configurations which are noted in the product selection tables.
Mersen Fuse Block, Open Style, 600 VAC/VDC, 30 A, 3 Pole, 3, Class: J, Fuse Holder Code: Z, Box Lug, 14 to 4 AWG Wire, Threaded Mount, For Use With: AJT, A4J and HSJ Series Fuse, Glass Reinforced Polycarbonate, 4 in L x 4.65 in W x 2.12 in HEECO #: GF60313J
