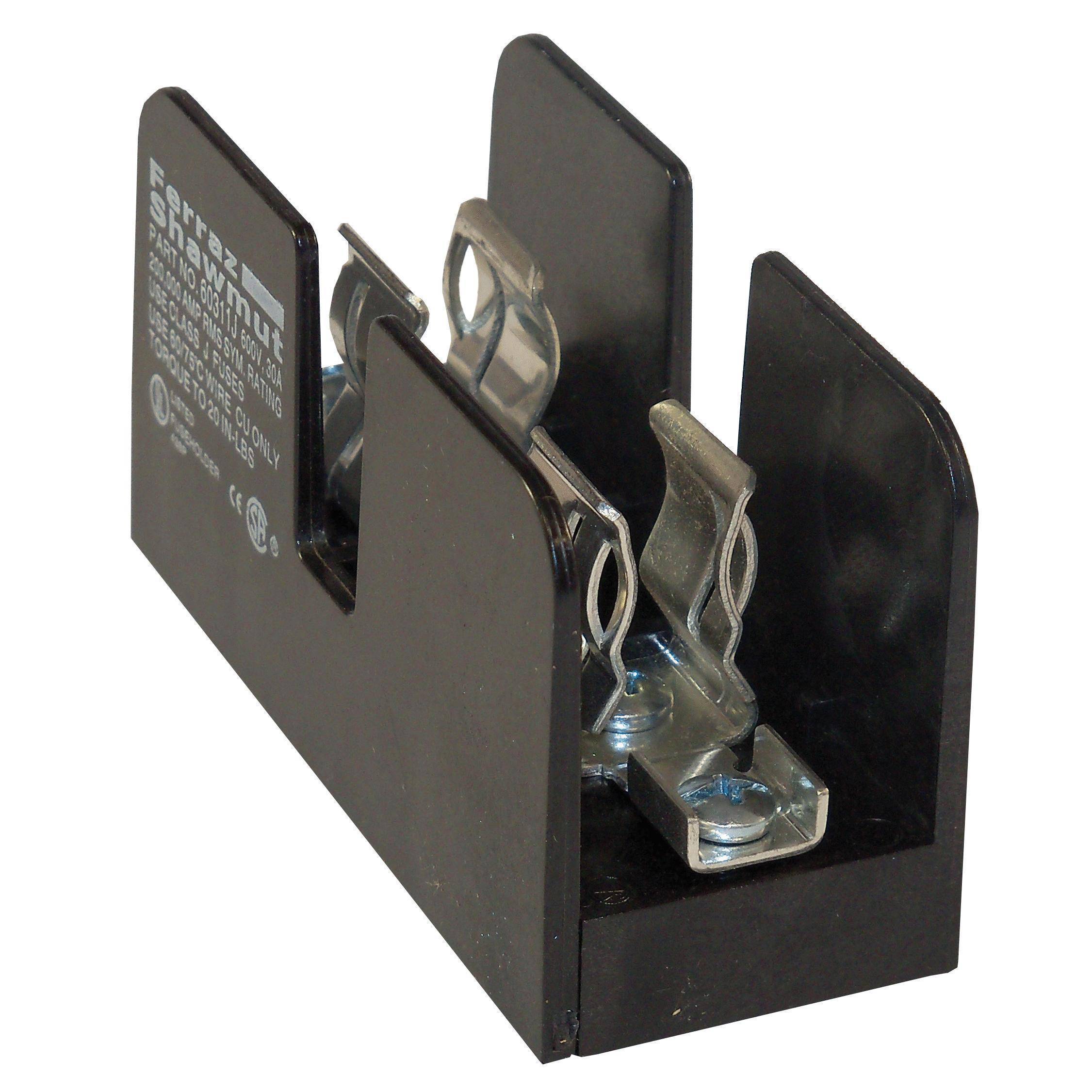

PrintMersen 60311J Open Style Fuse Block, 600 VAC/VDC, 30 A, Class J, 14 to 4 AWG Wire, 1 Poles
A choice of screw, pressure plate, box and special order stud connectors fit a wide range of stranded or solid copper or aluminum conductors. Insulators are either molded glass-filled polycarbonate (GFPC) or phenolic with verified dielectric strength in excess of 2500V. 30A, 60A and the new 100A SJ fuse blocks feature a unique adder block configuration which can be snapped onto 1-, 2-, or 3-pole blocks to form multi-pole segmented blocks of as many poles as desired. All fuse clips are made of high conductivity tin-plated copper, with a choice of spring-reinforced or non-spring reinforced clips. Space saving options are now available in the 30A and 100A configurations which are noted in the product selection tables.
Mersen Fuse Block, Open Style, 600 VAC/VDC, 30 A, 1 Pole, 1 Phase, Class: J, Box, 14 to 4 AWG Wire, Threaded Mount, For Use With: AJT, A4J, HSJ Fuse, GFPC, 4 in H x 1.65 in W x 2.12 in DEECO #: GF60311J
