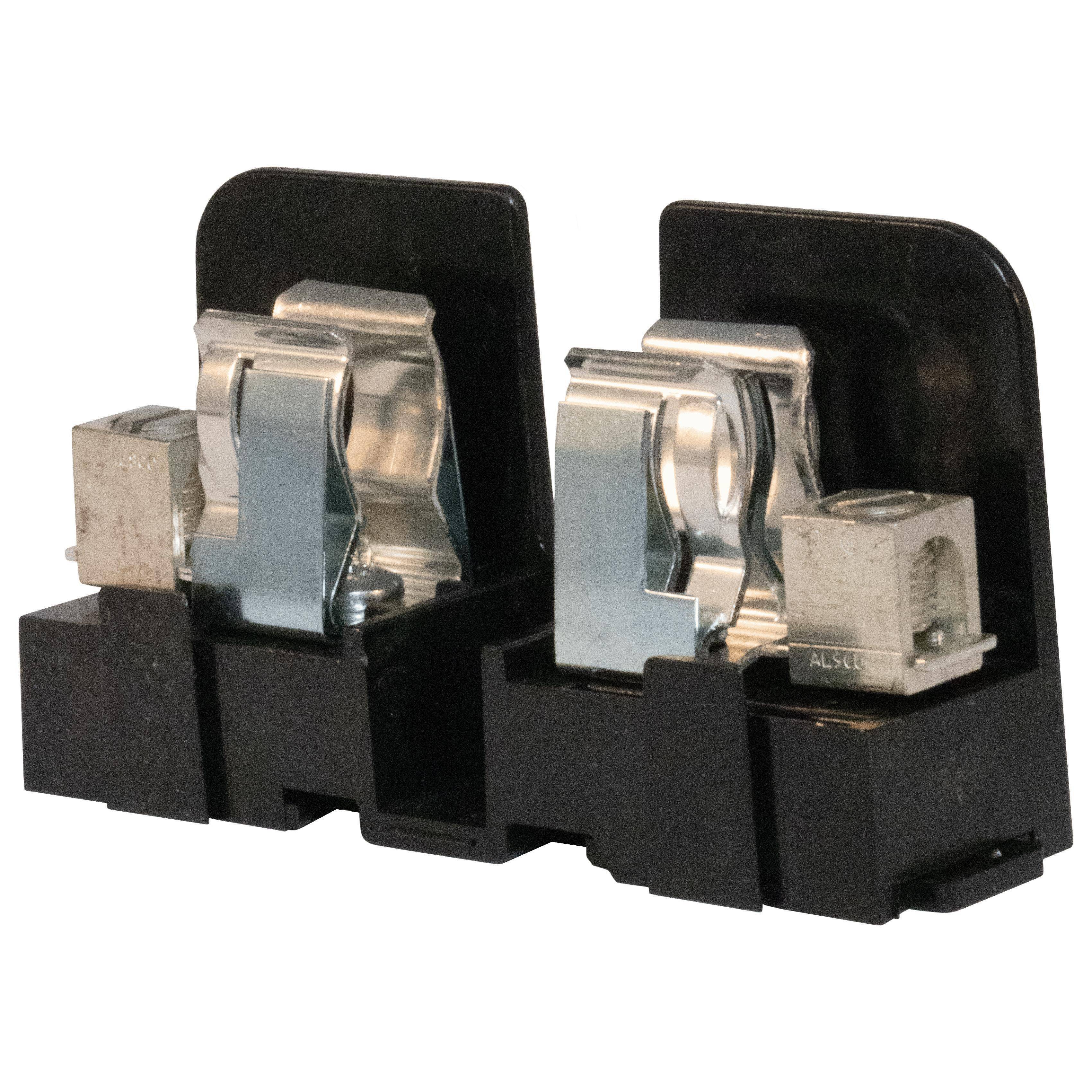

PrintMersen 60305SJ Adder Pole Open Style Fuse Block, 600 VAC/VDC, 30 A, Class: J, 14 to 2 AWG Wire
Short Description
Mersen open style class J fuse blocks accommodate all class J fuses ranging from 0-600A, 600V. A choice of screw, pressure plate, box and special order stud connectors fit a wide range of stranded or solid copper or aluminum wire. Insulators are either molded glass-filled polycarbonate (GFPC) or phenolic with verified dielectric strength in excess of 2500V. SJ fuse blocks are more compact than the traditional offering and feature a unique adder block configuration for multi-pole field assembly. All fuse clips are made of high conductivity tin-plated copper, with a choice of spring reinforced or non-spring reinforced clips.
Mersen Fuse Block, Adder Pole Open Style, 600 VAC/VDC, 30 A, 1 Phase, Class: J, Box, 14 to 2 AWG Wire, DIN Rail/Threaded Mount, For Use With: AJT, A4J, HSJ Fuse, GFPC, 3.9 in H x 1.16 in W x 2.2 in D
MFG #:
60305SJ
EECO #: GF60305SJ
Brand:
Mersen
UPC #:
782001672485
Mersen 60305SJ Adder Pole Open Style Fuse Block, 600 VAC/VDC, 30 A, Class: J, 14 to 2 AWG Wire
