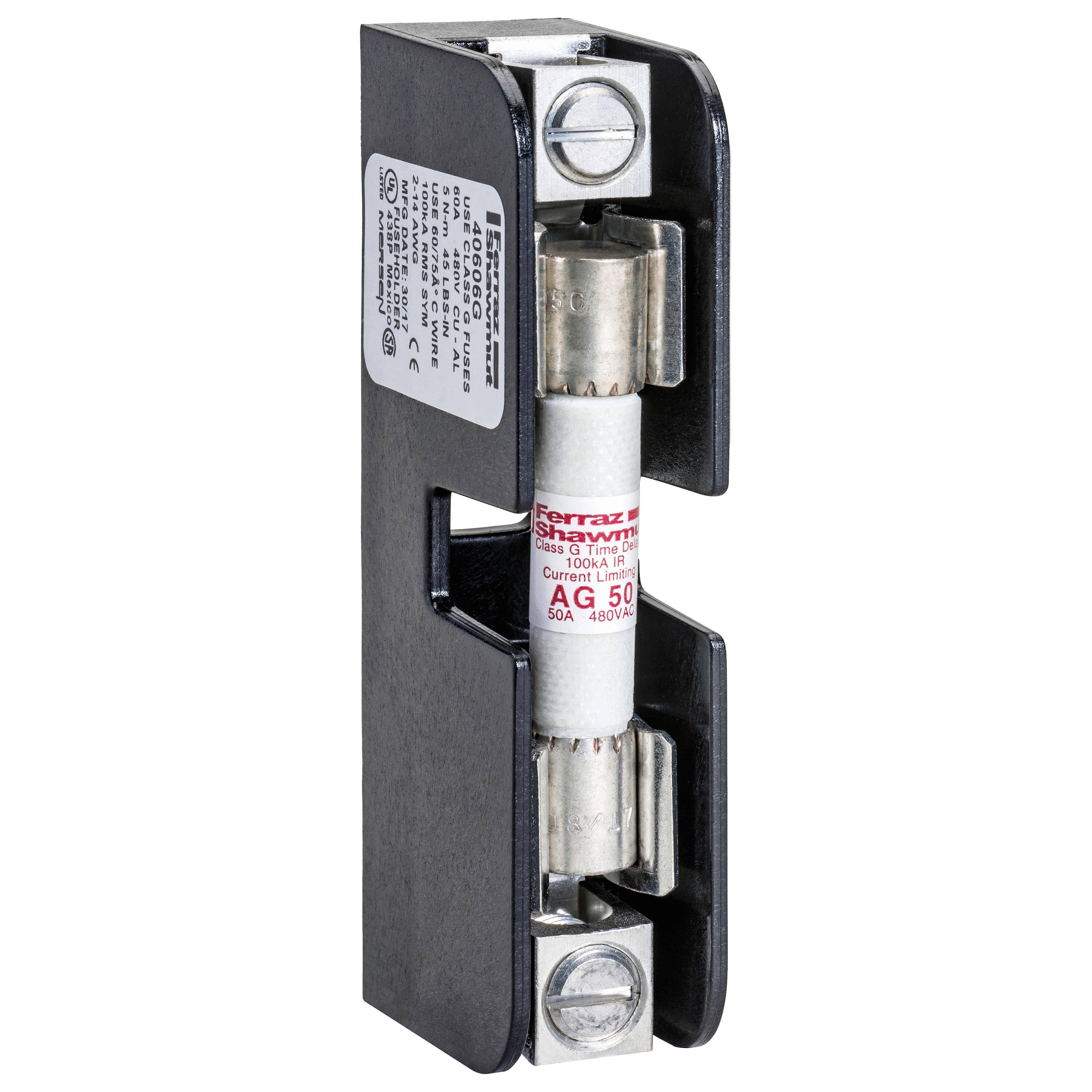

Mersen 40656G Open Style Fuse Block, 480 VAC, 60 A, Class G, 14 to 4 AWG Wire, 1 Poles

Short Description

Mersen Class G fuse blocks accommodate all 15, 20, 30 and 60 ampere Class G fuses. A choice of box, screw or pressure-plate connectors fit a wide range of stranded or solid copper wire. Insulators are glassfilled polycarbonate (GFPC) with verified dielectric strength in excess of 2500V. Fuse blocks feature a unique adder block which can be snapped onto 1-, 2-, or 3-pole blocks to form multi-pole segmented blocks of as many poles as desired. All fuse clips are made of high conductivity tin-plated copper alloy.

Mersen Fuse Block, Open Style, 480 VAC, 60 A, 1 Pole, 1 Phase, Class: G, Copper Box, 14 to 4 AWG Wire, Threaded Mount, 125 deg C, For Use With: AG Fuse, GFPC, 3.78 in H x 0.86 in W x 1.4 in D
MFG #: 40656G

EECO #: GF40656G

Brand: Mersen
UPC #: 782001230913
Attributes
Features
Documents
Product Information
Attributes
Class
G
UNSPSC
39121624
Material
GFPC
Wire Size
14 to 4
Mounting Type
Threaded
Voltage Rating
480
Connection Type
Copper Box
Number of Phases
1
Temperature Rating
125
Type
Open Style
Dimensions
3.78 in H x 0.86 in W x 1.4 in D
Amperage Rating
60
Suitable For Use With
AG Fuse
Features
  • Unique integral DIN rail adapters for 15, 20 and 30 A blocks
  • Unique adder block design for design flexibility
  • Features high conductivity copper alloy fuse clips
  • Spring reinforcing standard for 60 A clips
