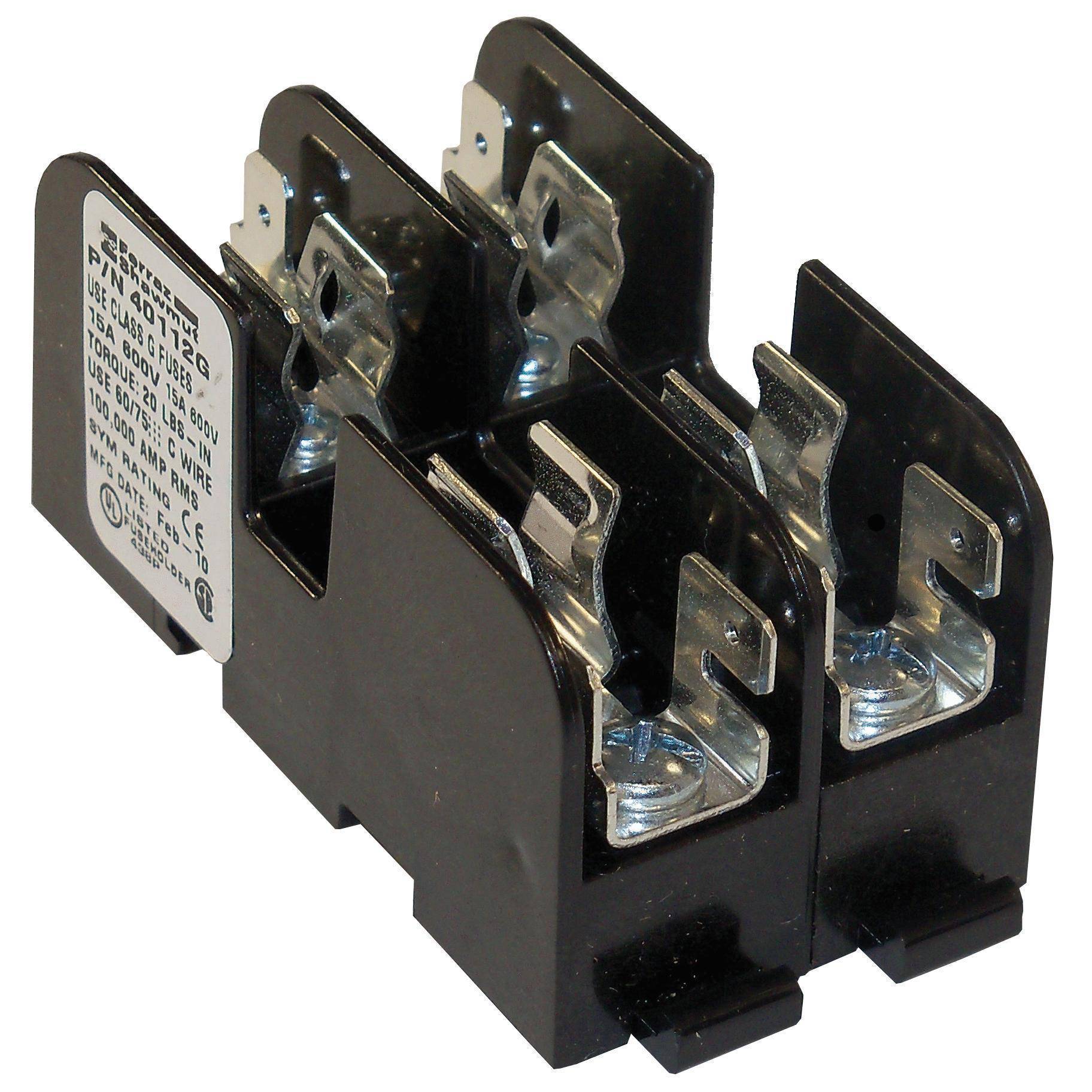

Mersen 40112G Open Style Fuse Block, 600 VAC, 15 A, Class: G, 14 to 10 AWG Wire, 2 Poles

Short Description

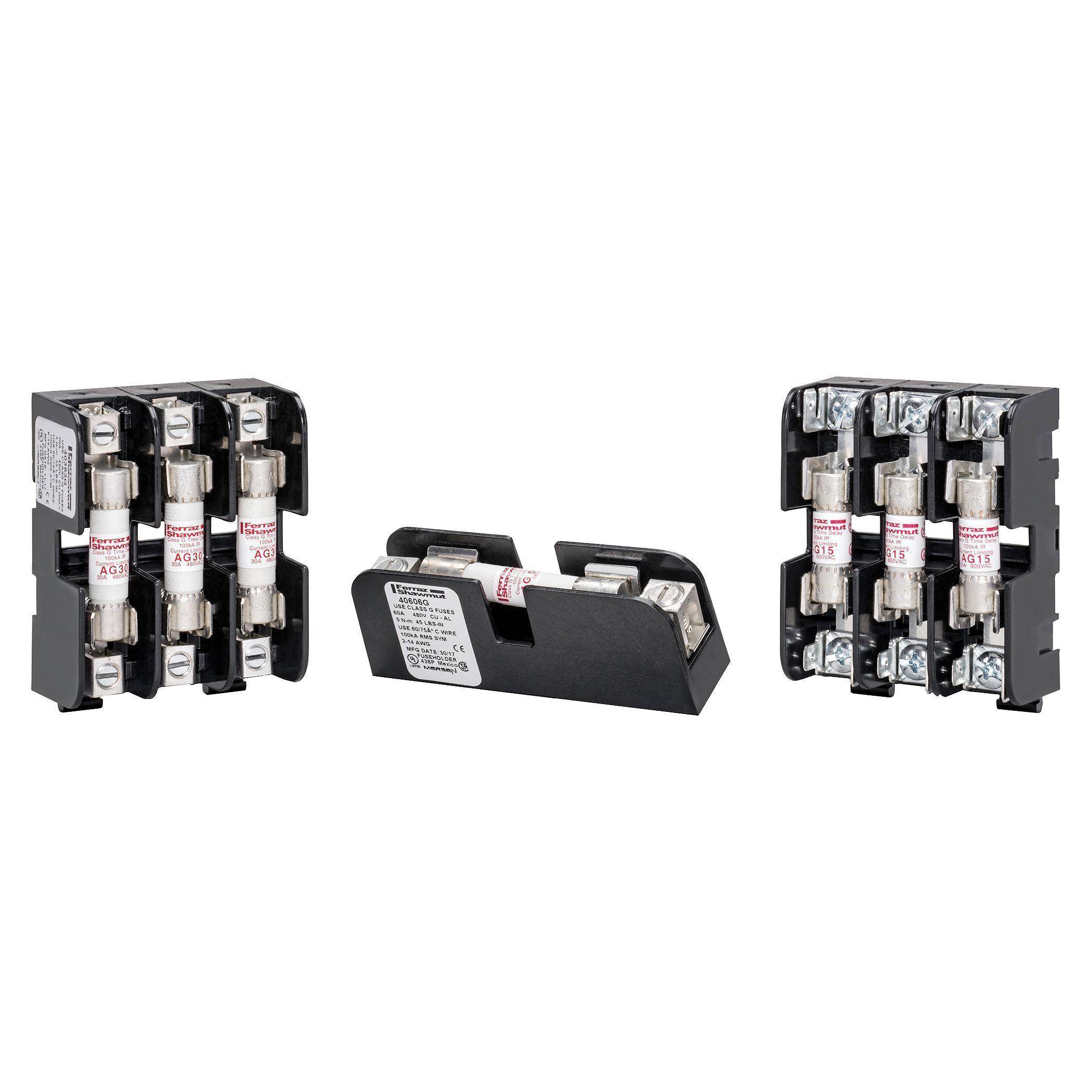

Mersen Class G fuse blocks accommodate all 15, 20, 30 and 60 ampere Class G fuses. A choice of box, screw or pressure-plate connectors fit a wide range of stranded or solid copper wire. Insulators are glassfilled polycarbonate (GFPC) with verified dielectric strength in excess of 2500V. Fuse blocks feature a unique adder block which can be snapped onto 1-, 2-, or 3-pole blocks to form multi-pole segmented blocks of as many poles as desired. All fuse clips are made of high conductivity tin-plated copper alloy.

Mersen Fuse Block, Open Style, 600 VAC, 15 A, 2 Pole, 2 Phase, Class: G, Screw with Double Quick-Connect, 14 to 10 AWG Wire, DIN Rail/Threaded Mount, 125 deg C, For Use With: AG Fuse, GFPC, 3.05 in H x 1.62 in W x 1.45 in D
MFG #: 40112G

EECO #: GF40112G

Brand: Mersen
UPC #: 782001674656
Attributes
Features
Documents
Product Information
Attributes
Class
G
UNSPSC
39121624
Material
GFPC
Wire Size
14 to 10
Mounting Type
DIN Rail/Threaded
Voltage Rating
600
Connection Type
Screw with Double Quick-Connect
Number of Phases
2
Temperature Rating
125
Type
Open Style
Dimensions
3.05 in H x 1.62 in W x 1.45 in D
Amperage Rating
15
Suitable For Use With
AG Fuse
Features
  • Unique integral DIN rail adapters for 15, 20 and 30 A blocks
  • Unique adder block design for design flexibility
  • Features high conductivity copper alloy fuse clips
Mersen_40658G_Specification_Sheet
Mersen_40655G_Specification_Sheet
