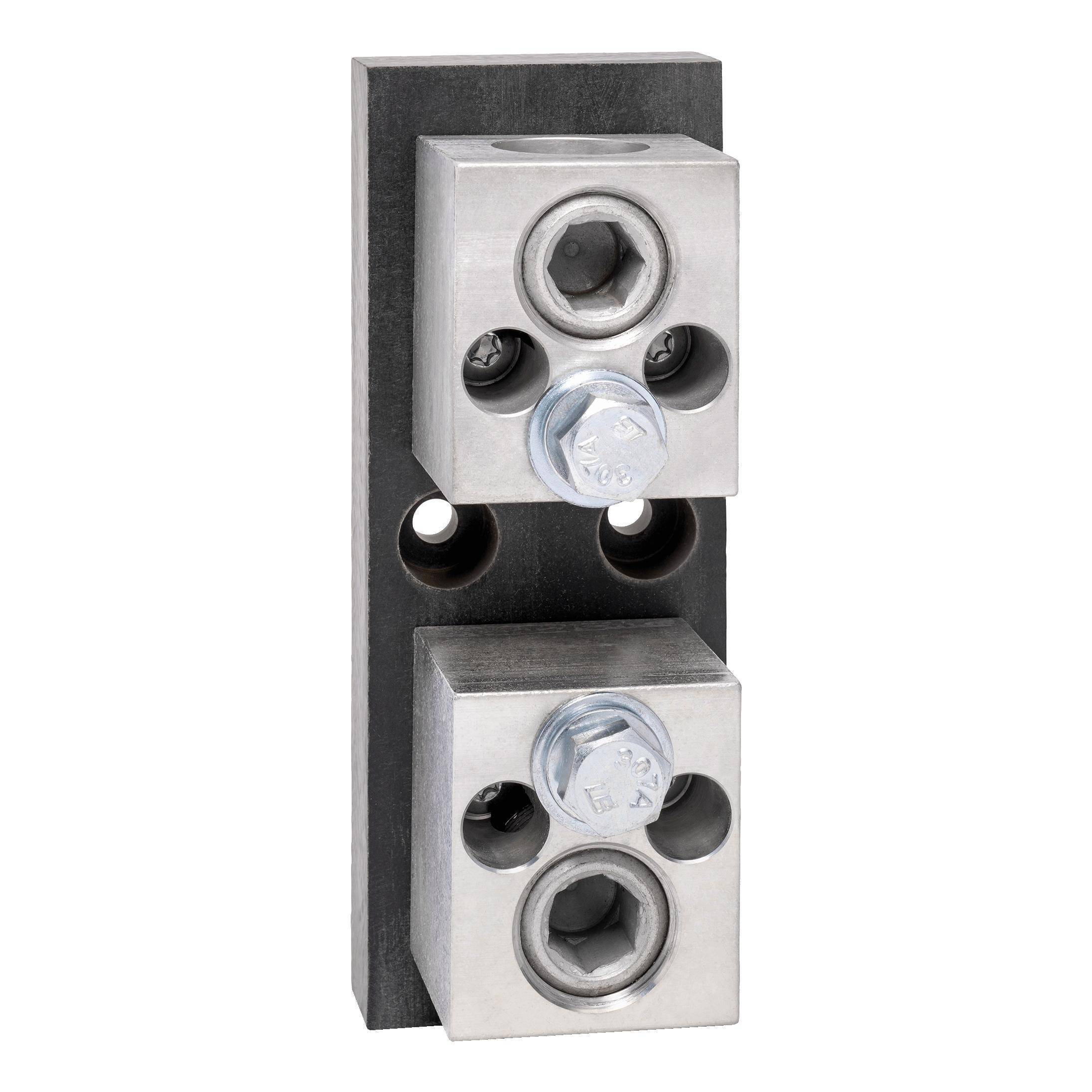

Mersen 34051T Open Style Fuse Block, 300 VAC/160 VDC, 400 A, Class: T, 2 AWG to 600 kcmil Wire, 1 Poles

Short Description

Mersen Class T fuse blocks accommodate Class T fuses up to 600A. Insulators are either durable, glass-filled polycarbonate (GFPC) or phenolic with verified dielectric strength in excess of 2500V. Mersen is the only manufacturer to offer Class T blocks with copper connectors

Mersen Fuse Block, Open Style, 300 VAC/160 VDC, 400 A, 1 Pole, 1 ph, Class: T, Copper Box Connection, 2 AWG to 600 kcmil Wire, Threaded Mounting, 150 deg C, For Use With: A3T Fuse, Phenolic, 6 in H x 2.25 in W x 2.99 in D Dimensions
MFG #: 34051T

EECO #: GF34051T

Brand: Mersen
UPC #: 782001675783
Attributes
Features
Documents
Product Information
Attributes
Class
T
UNSPSC
39121624
Material
Phenolic
Wire Size
2 AWG to 600 kcmil
Mounting Type
Threaded
Voltage Rating
300 VAC/160 VDC
Connection Type
Copper Box
Number of Phases
1
Temperature Rating
150
Type
Open Style
Dimensions
6 in H x 2.25 in W x 2.99 in D
Amperage Rating
400
Suitable For Use With
A3T Fuse
Features
  • Unique integral DIN rail adapters for 600 VAC, 30 and 60 A blocks
  • Full barrier design (30 and 60 A) increases pole to pole safety
  • Unique adder block design (30 and 60 A) for design flexibility
  • Spring reinforcing standard for all 30 and 60 A clips
  • Features high conductivity copper alloy fuse clips
  • Cool running high amperage (100 to 600 A) connectors
Mersen_30315T_Specification_Sheet
Mersen_30659T_Specification_Sheet
