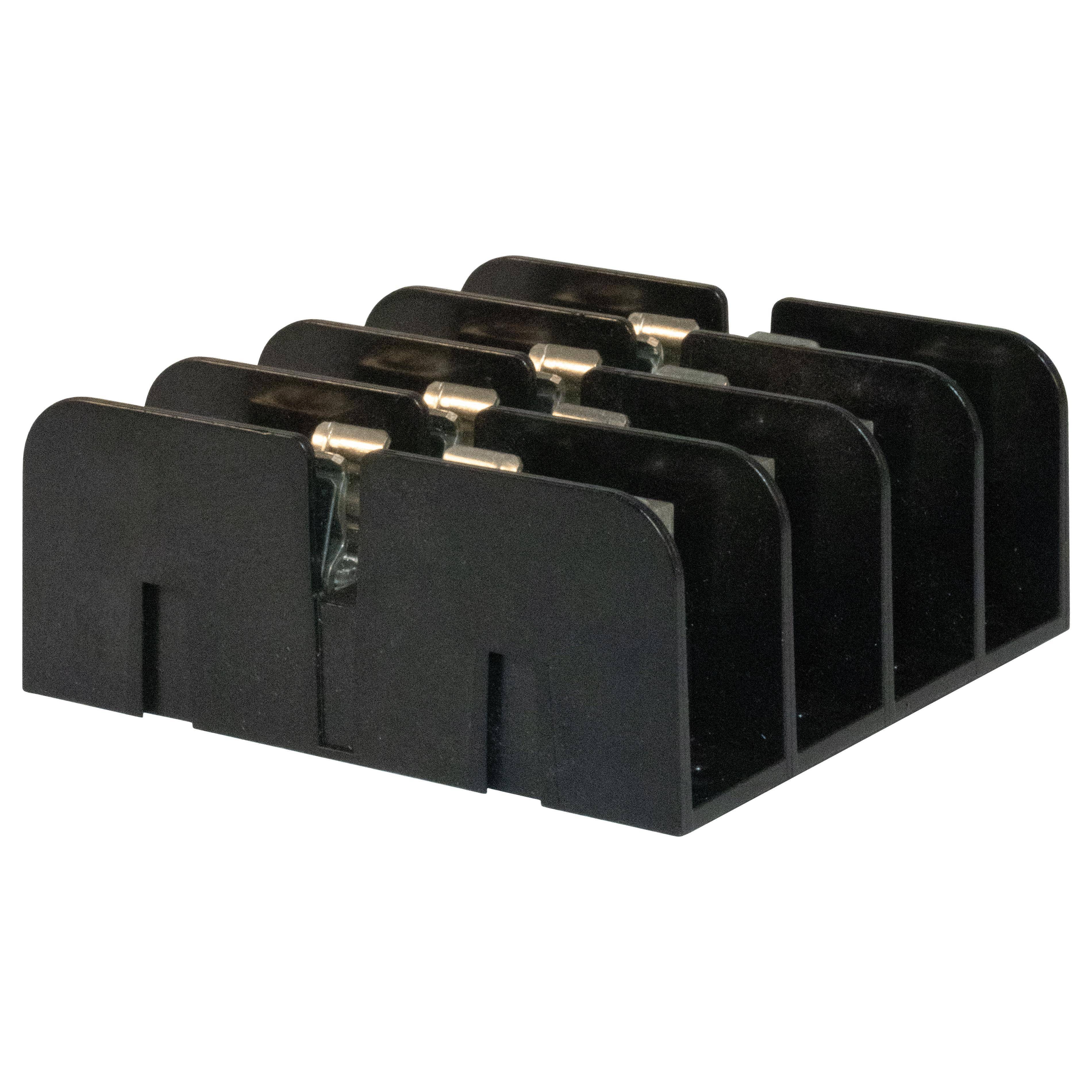

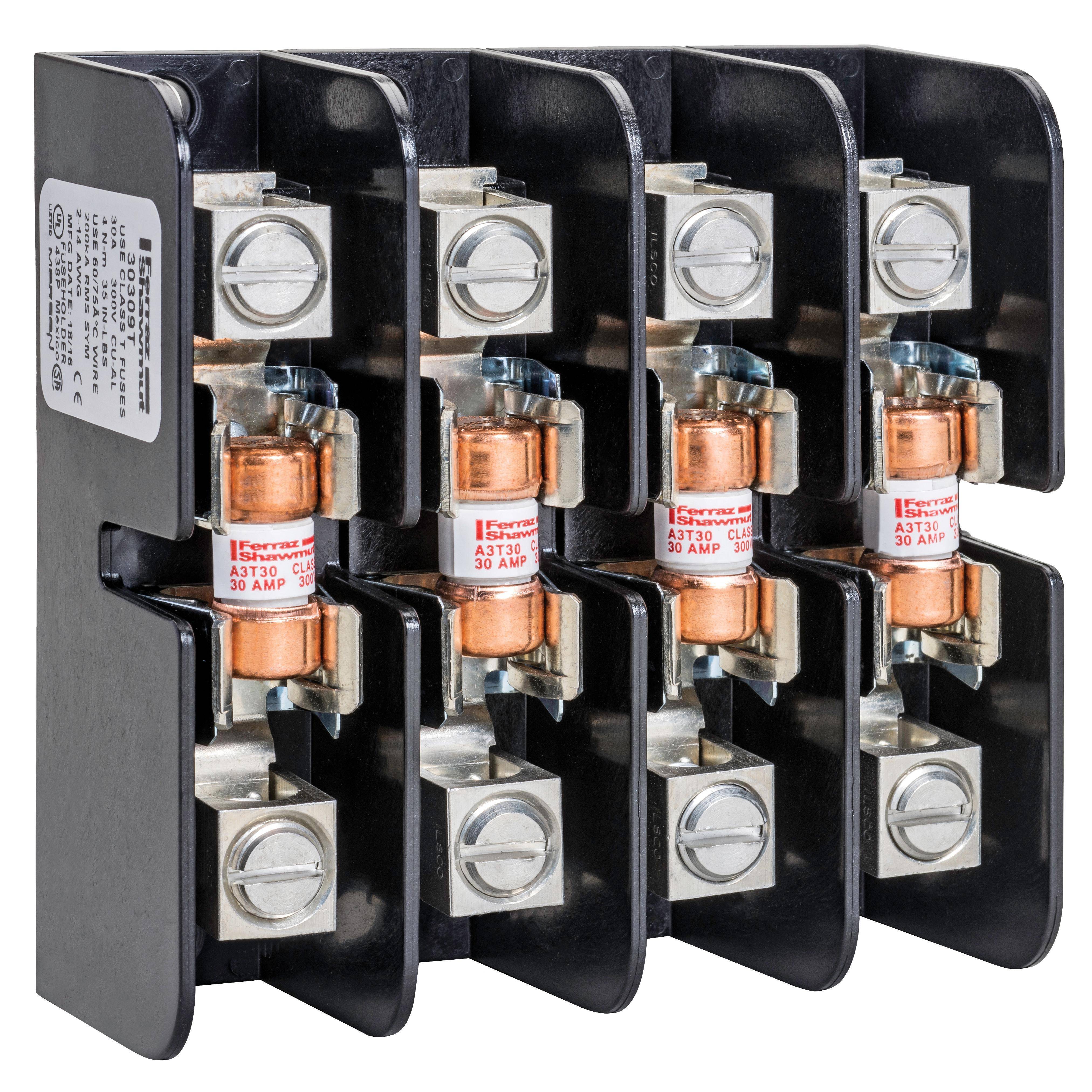

Mersen 30359T Open Style Fuse Block, 300 VAC/160 VDC, 30 A, Class: T, 14 to 4 AWG Wire, 4 Poles

Short Description

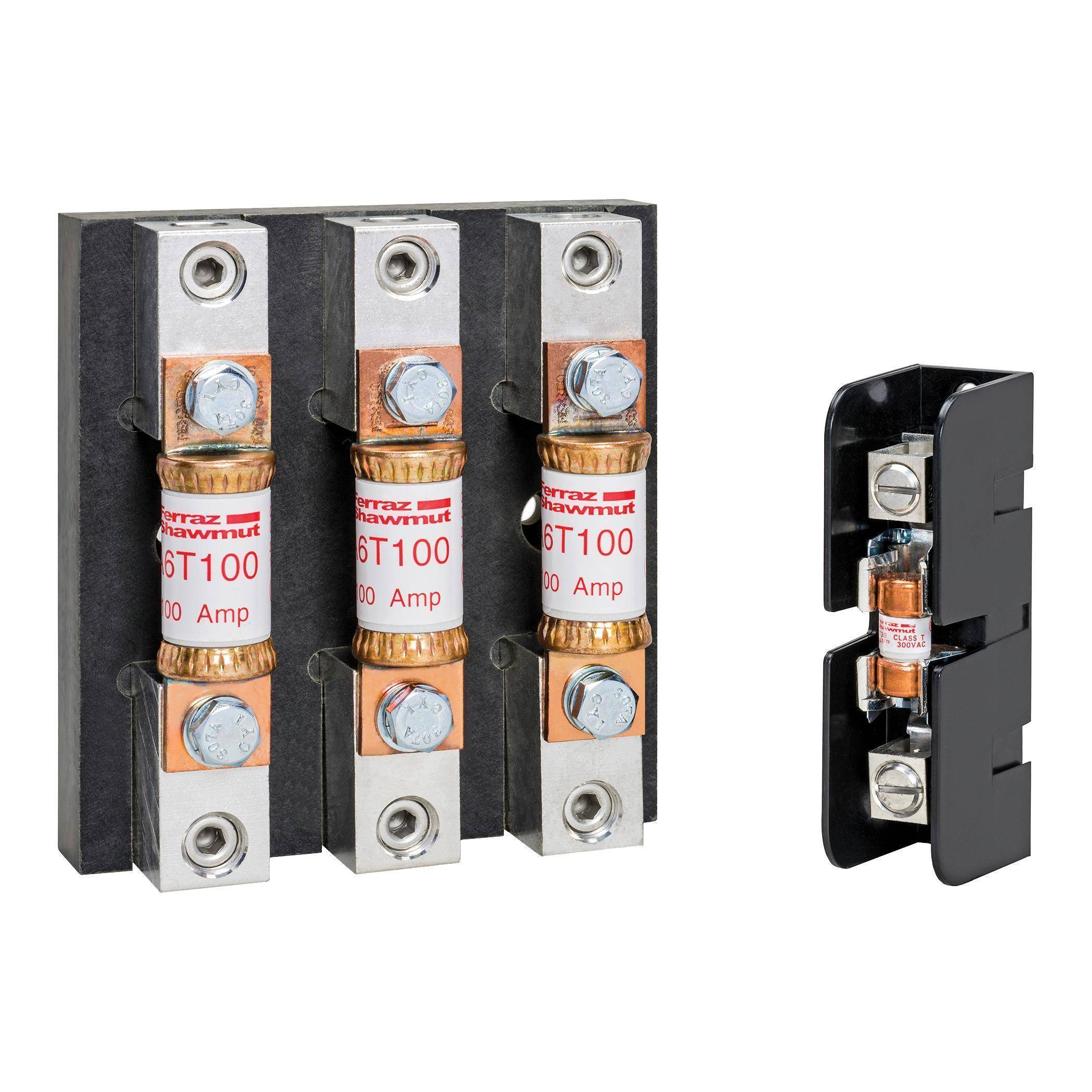

Mersen Class T fuse blocks accommodate Class T fuses up to 600A. Insulators are either durable, glass-filled polycarbonate (GFPC) or phenolic with verified dielectric strength in excess of 2500V. Mersen is the only manufacturer to offer Class T blocks with copper connectors

Mersen Fuse Block, Open Style, 300 VAC/160 VDC, 30 A, 4 Pole, 4 ph, Class: T, Copper Box Connection, 14 to 4 AWG Wire, Threaded Mounting, 125 deg C, For Use With: A3T Fuse, GFPC, 3.65 in H x 3.6 in W x 1.47 in D Dimensions
MFG #: 30359T

EECO #: GF30359T

Brand: Mersen
UPC #: 782001675226
Attributes
Features
Documents
Product Information
Attributes
Class
T
UNSPSC
39121624
Material
GFPC
Wire Size
14 to 4
Mounting Type
Threaded
Voltage Rating
300 VAC/160 VDC
Connection Type
Copper Box
Number of Phases
4
Temperature Rating
125
Type
Open Style
Dimensions
3.65 in H x 3.6 in W x 1.47 in D
Amperage Rating
30
Suitable For Use With
A3T Fuse
Features
  • Unique integral DIN rail adapters for 600 VAC, 30 and 60 A blocks
  • Full barrier design (30 and 60 A) increases pole to pole safety
  • Unique adder block design (30 and 60 A) for design flexibility
  • Spring reinforcing standard for all 30 and 60 A clips
  • Features high conductivity copper alloy fuse clips
  • Cool running high amperage (100 to 600 A) connectors
Mersen_30315T_Specification_Sheet
Mersen_30659T_Specification_Sheet
