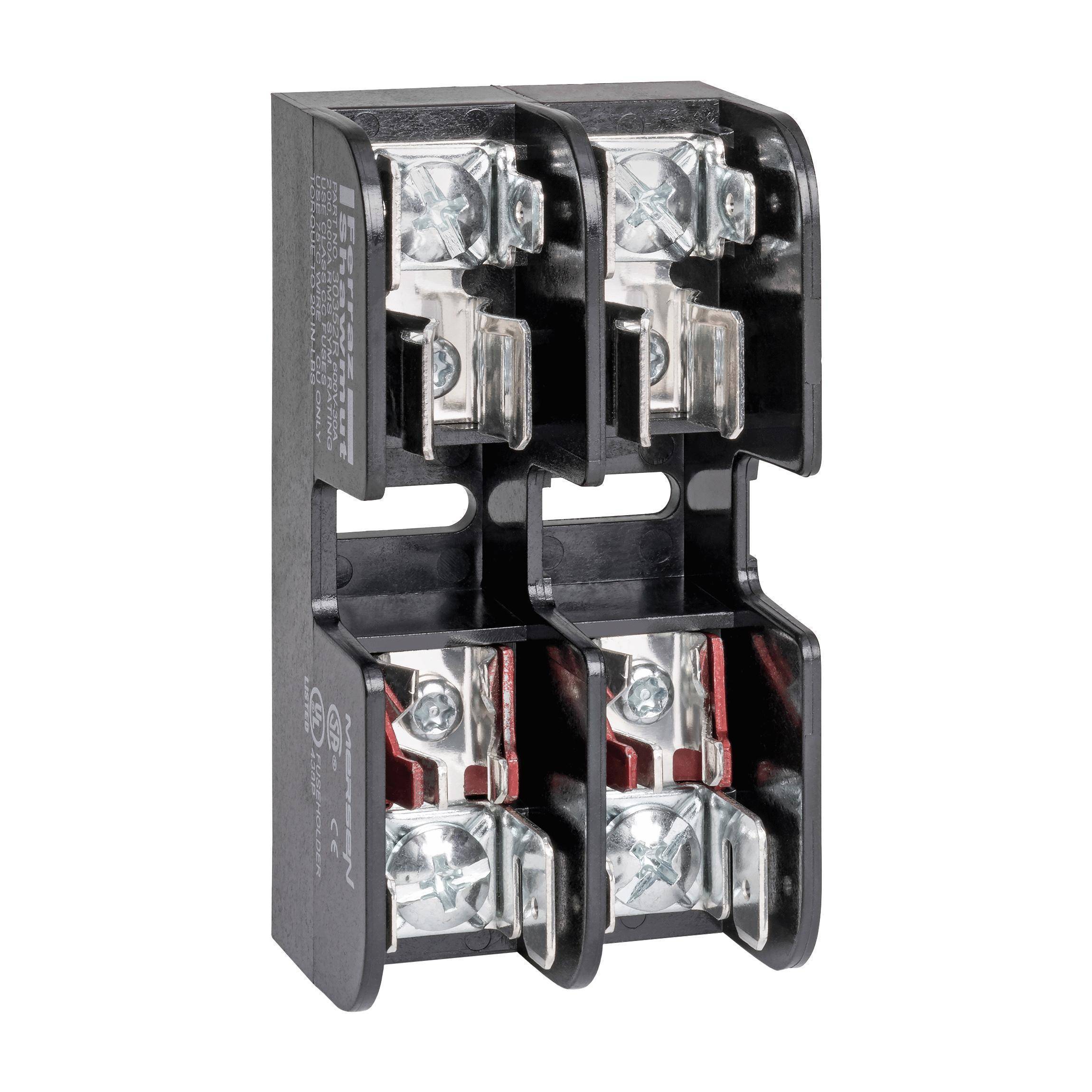

PrintMersen 30352R Open Style Fuse Block, 600 VAC/VDC, 30 A, 14 to 6 AWG Wire, 2 Poles
Short Description

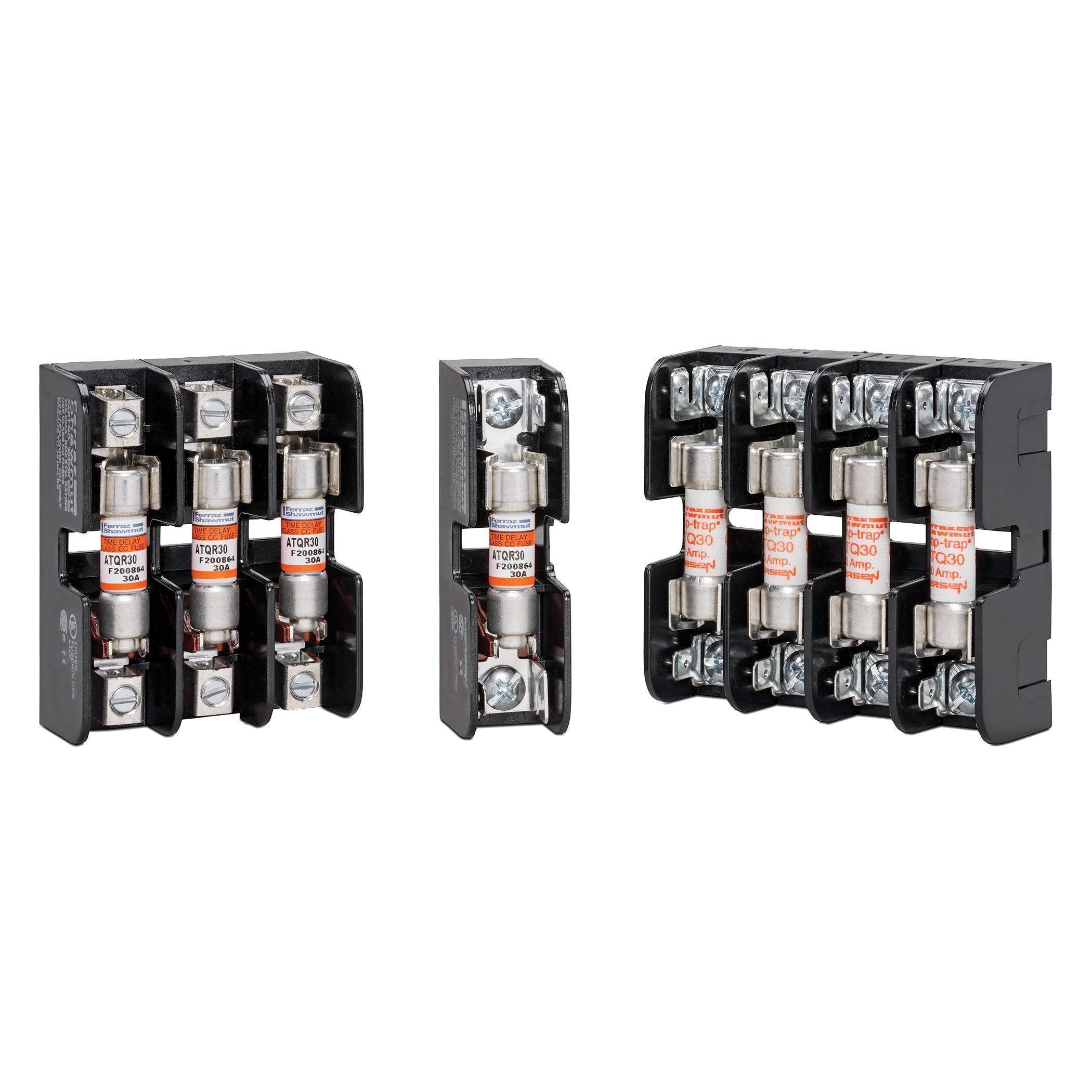

Mersen midget fuse blocks accommodate all 30 ampere 1-1/2” x 13/32” midget fuses. Class CC fuse blocks accommodate all 30 ampere Class CC fuses. A choice of box, screw, or pressure-plate connectors fit a wide range of stranded or solid copper wire. Insulators are glassfilled polycarbonate (GFPC) with verified dielectric strength in excess of 2500V. Fuse blocks feature a unique adder block which can be snapped onto 1-, 2- or 3-pole blocks to form multi-pole segmented blocks of as many poles as desired. All fuse clips are made of high conductivity tin-plated copper alloy.
Mersen Fuse Block, Open Style, Series: 303, 600 VAC/VDC, 30 A, 2 Pole, 2 Phase, Class: CC, Copper Box, 14 to 6 AWG Wire, DIN Rail/Threaded Mount, 1-1/2 in Fuse Length, 13/32 in Fuse Dia, 125 deg C, For Use With: ATDR, ATMR and ATQR Series Fuse, Glass Reinforced Polycarbonate, 3.04 in H x 1.6 in W x 1.31 in D
MFG #:
30352R
EECO #: GF30352R
Brand:
Mersen
UPC #:
782001663636
Mersen 30352R Open Style Fuse Block, 600 VAC/VDC, 30 A, 14 to 6 AWG Wire, 2 Poles
