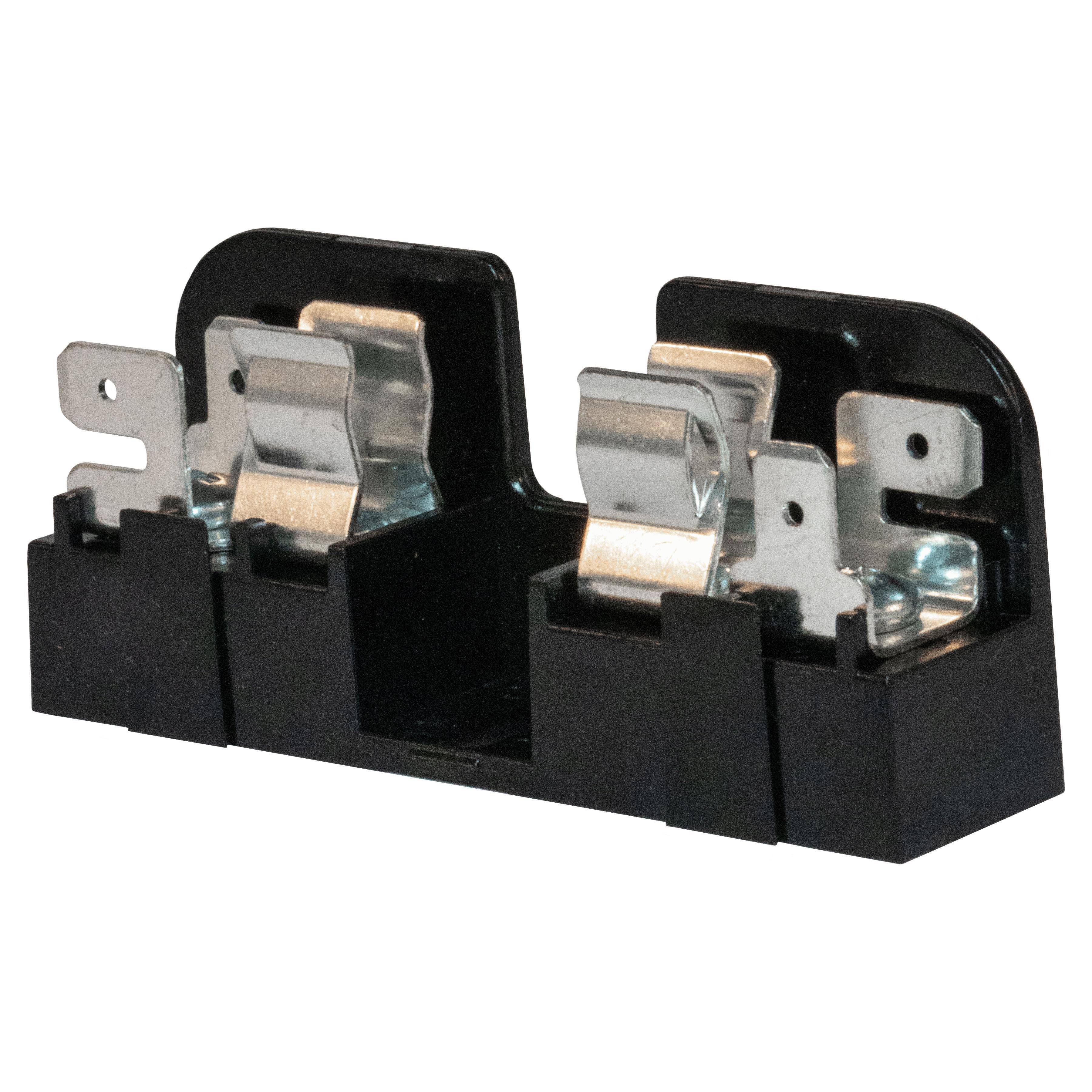

PrintMersen 30350 Open Style Fuse Block, 600 VAC/VDC, 30 A, 14 to 6 AWG Wire
Short Description

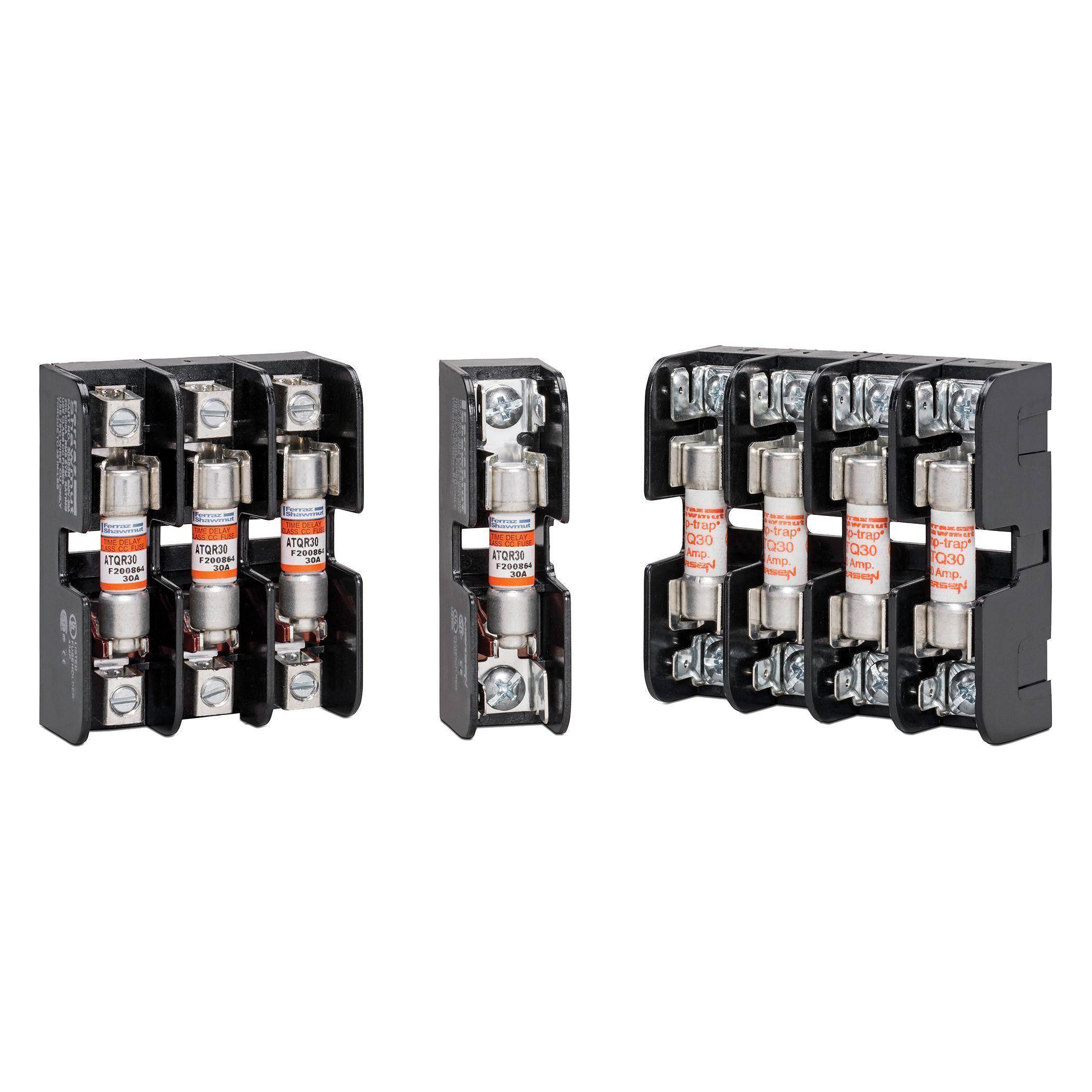

Mersen midget fuse blocks accommodate all 30 ampere 1-1/2” x 13/32” midget fuses. Class CC fuse blocks accommodate all 30 ampere Class CC fuses. A choice of box, screw, or pressure-plate connectors fit a wide range of stranded or solid copper wire. Insulators are glassfilled polycarbonate (GFPC) with verified dielectric strength in excess of 2500V. Fuse blocks feature a unique adder block which can be snapped onto 1-, 2- or 3-pole blocks to form multi-pole segmented blocks of as many poles as desired. All fuse clips are made of high conductivity tin-plated copper alloy.
Mersen Fuse Block, Open Style, Series: 303, 600 VAC/VDC, 30 A, 1 ph, Class: Midget, Copper Box Connection, 14 to 6 AWG Wire, DIN Rail/Threaded Mounting, 1-1/2 in Fuse Length, 13/32 in Diameter Fuse, 125 deg C, For Use With: ATQ, ATM, A6Y-2B, A25Z-2, TRM, OTM, A15QS-2, GFN, GGU, A60Q-2, DCT Series Fuse, Glass Reinforced Polycarbonate, 0.75 in W x 1.31 in D x 3.04 in H Dimensions
MFG #:
30350
EECO #: GF30350
Brand:
Mersen
UPC #:
782001750039
Mersen 30350 Open Style Fuse Block, 600 VAC/VDC, 30 A, 14 to 6 AWG Wire
