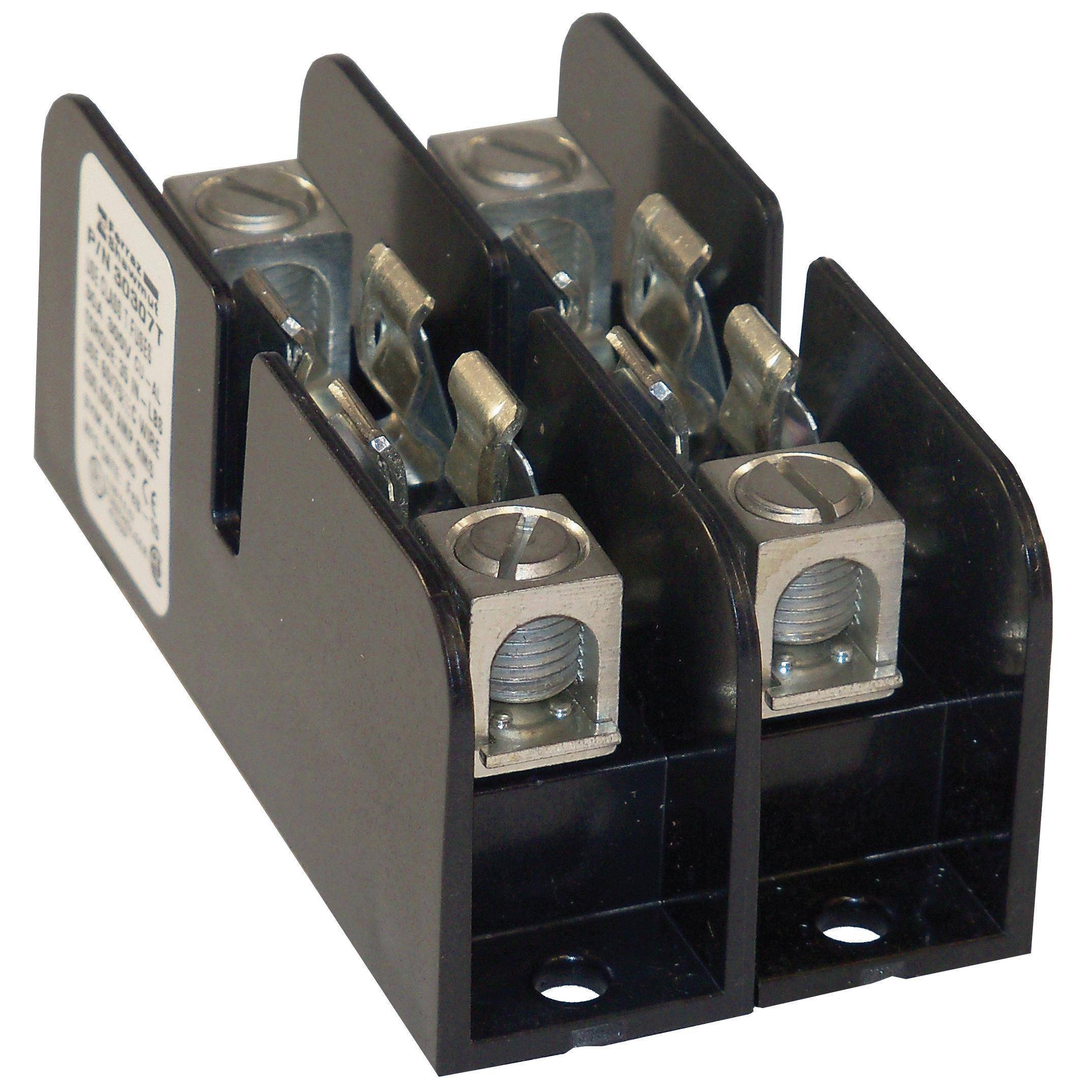

Mersen 30307T Open Style Fuse Block, 300 VAC/VDC, 30 A, Class T, 14 to 2 AWG Wire, 2 Poles

Short Description

Mersen Class T fuse blocks accommodate Class T fuses up to 600A. Insulators are either durable, glass-filled polycarbonate (GFPC) or phenolic with verified dielectric strength in excess of 2500V. Mersen is the only manufacturer to offer Class T blocks with copper connectors

Mersen Fuse Block, Open Style, 300 VAC/VDC, 30 A, 2 Pole, 2, Class: T, Box Lug, 14 to 2 AWG Wire, Threaded Mount, For Use With: A3T Series Fuse, Glass Reinforced Polycarbonate, 3.65 in L x 1.85 in W x 1.47 in H
MFG #: 30307T

EECO #: GF30307T

Brand: Mersen
UPC #: 782001675158
Attributes
Features
Documents
Product Information
Attributes
Class
T
UNSPSC
39121624
Material
Glass Reinforced Polycarbonate
Wire Size
14 to 2
Mounting Type
Threaded
Voltage Rating
300
Connection Type
Box Lug
Number of Phases
2
Type
Open Style
Dimensions
3.65 in L x 1.85 in W x 1.47 in H
Amperage Rating
30
Suitable For Use With
A3T Series Fuse
Features
  • Unique integral DIN-rail adapters for 600 V 30 and 60 a fuse blocks
  • Full barrier design (30 and 60 A) increases pole to pole safety
  • Unique adder-block design (30 and 60 A) for design flexibility
  • Spring reinforcing standard for all 30 and 60 A clips
  • Features high conductivity copper alloy fuse clips
  • Cool running high amperage (100 to 600 A) connectors
  • 200 kA short circuit current rating
Mersen_30315T_Specification_Sheet
Mersen_30659T_Specification_Sheet
