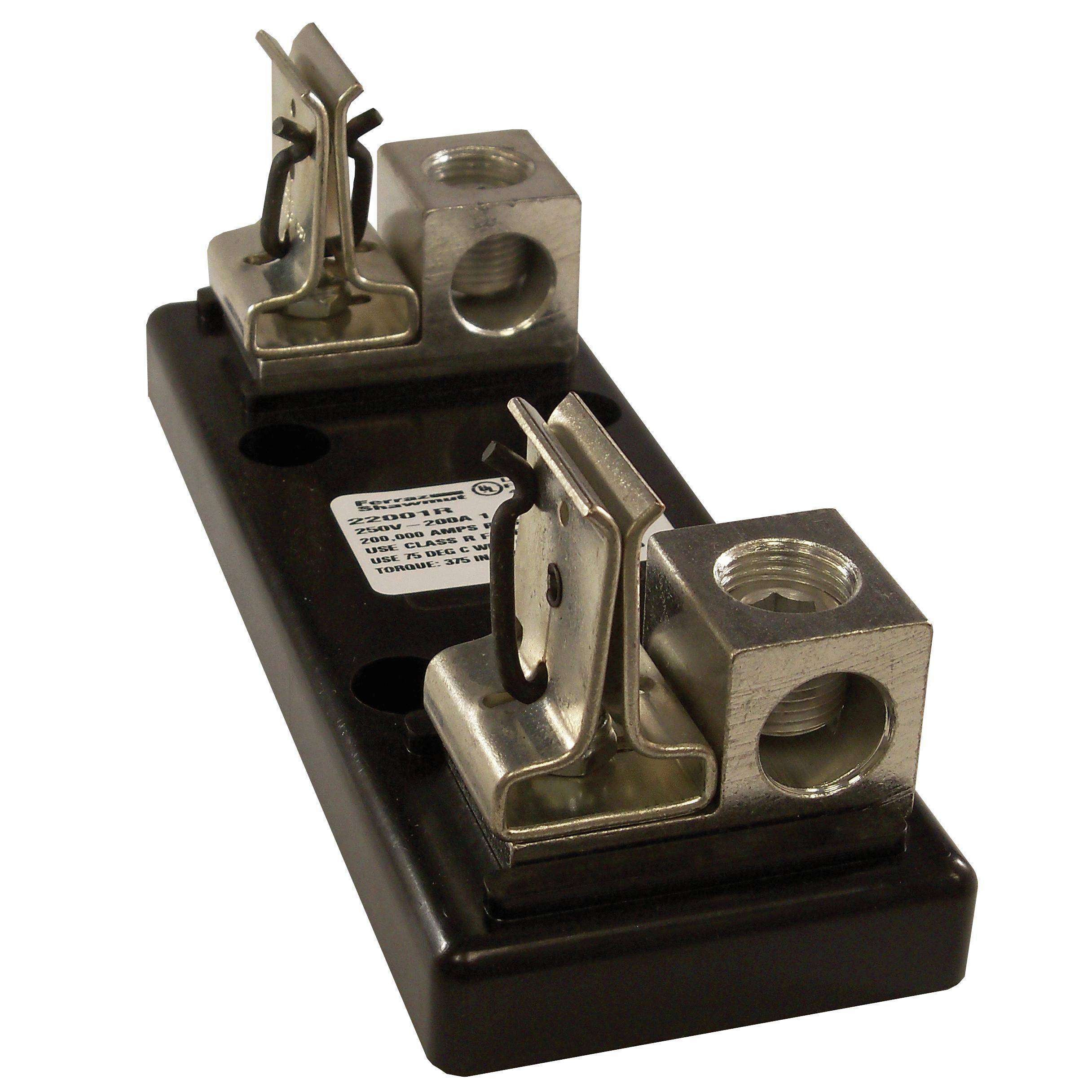

PrintMersen 22001R Open Style Fuse Block, 250 VAC, 200 A, Class R, 6 AWG to 350 kcmil Wire, 1 Pole
Mersen Class H, K and R fuse blocks accommodate all Class H, K and R 250 and 600V power fuses. A choice of screw, pressure plate, box and special order stud connectors fit a wide range of stranded or solid copper or aluminum wire. Insulators are either molded glass-filled polycarbonate (GFPC) or phenolic with verified dielectric strength in excess of 2500V. 30, 60 and 100A fuse blocks feature a unique adder block which can be snapped onto 1-, 2- or 3-pole blocks to form multipole segmented blocks of as many poles as desired. All fuse clips are made of high conductivity tinplated copper, with a choice of spring reinforced or nonspring reinforced clips in 30A and 60A. Clips 100A and above are spring reinforced.
Mersen Fuse Block, Open Style, 250 VAC, 200 A, 1 Pole, 1, Class: R, Fuse Holder Code: M, Box Lug/Side Clip, 6 AWG to 350 kcmil Wire, Threaded Mount, For Use With: A2D-R, A2K-R and TR-R Series Fuse, Phenolic, 8 in L x 3 in W x 2.9 in HEECO #: GF22001R
