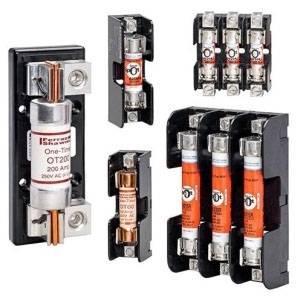

Print250 VAC/VDC, 60 A, Mersen EP 20607 Fuse Block, 2-Pole, Class H/K
250 VAC/VDC, 60 A, 14 to 2 AWG Aluminum/Copper, 2-Pole, Molded Glass Filled Polycarbonate, Box Lug Terminal, Spring Reinforced Clip, Class H/K, Standard, Fuse Block
Fuse Block; Type Standard; Material Molded Glass Filled Polycarbonate; Number of Poles 2; Fuse Type Class H, Class K; Fuse Voltage Rating 250 Volt AC/DC; Fuse Current Rating 60 Amp; Wire Size 14 to 2 AWG (Aluminum/Copper); Terminal Type Box Lug; Clip Type Spring Reinforced; Approval UL 4248, CSA Class 6225; RoHS Compliant; Overall Dimension 4.75 Inch Length x 2.77 Inch Width x 2.12 Inch Height; Short Circuit Current Rating 50 Kiloamp; Fuse Installation Method Clip-In; Clip Material Tin Plated Copper; Installation Mounting Type Direct Screw; Connector Torque Rating 45 Inch-Pound
EECO #: GF20607
