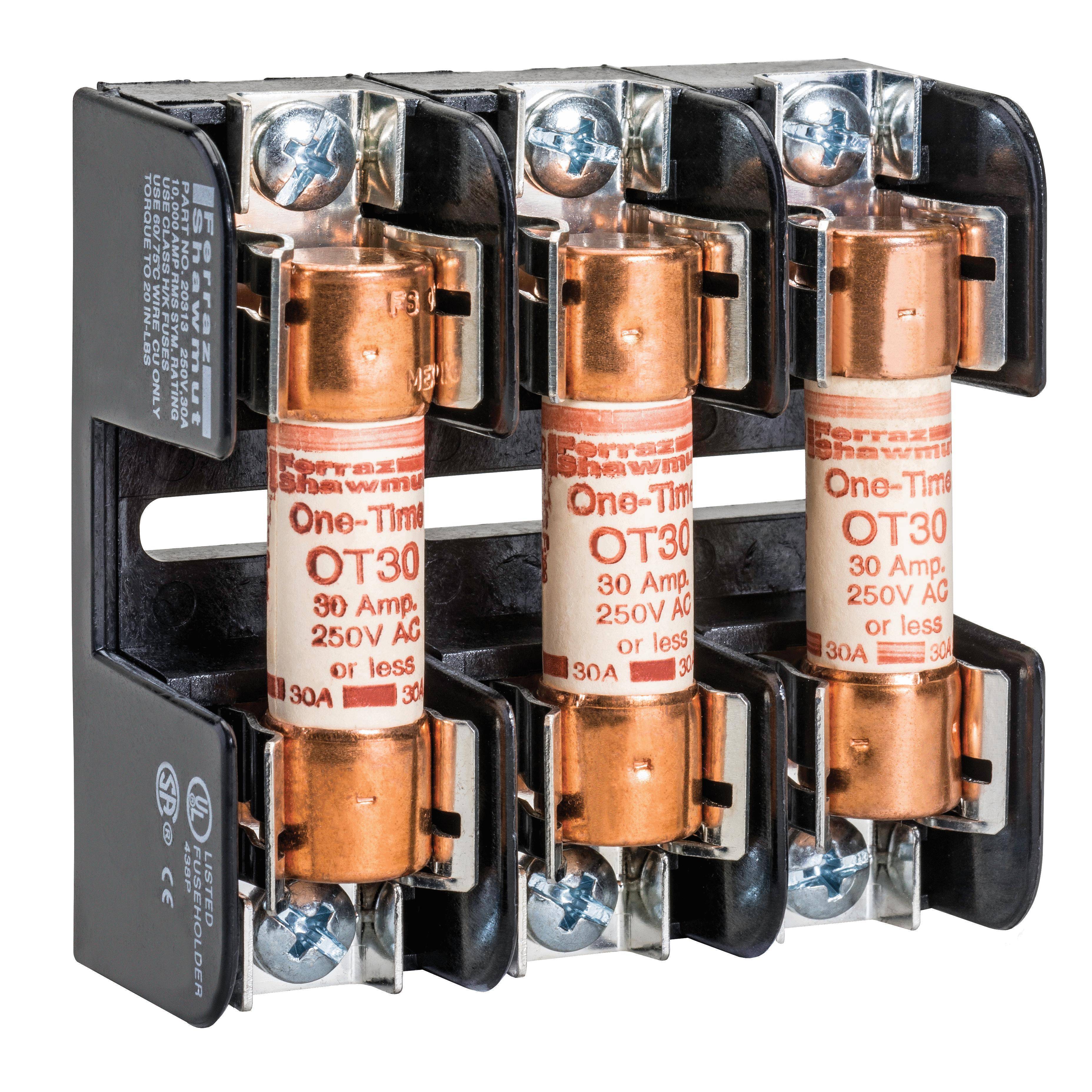

PrintMersen 20358 Open Style Fuse Block, 250 VAC/VDC, 30 A, Class: H/K, 14 to 4 AWG Wire, 3 Poles
Mersen Class H, K and R fuse blocks accommodate all Class H, K and R 250 and 600V power fuses. A choice of screw, pressure plate, box and special order stud connectors fit a wide range of stranded or solid copper or aluminum wire. Insulators are either molded glass-filled polycarbonate (GFPC) or phenolic with verified dielectric strength in excess of 2500V. 30, 60 and 100A fuse blocks feature a unique adder block which can be snapped onto 1-, 2- or 3-pole blocks to form multipole segmented blocks of as many poles as desired. All fuse clips are made of high conductivity tinplated copper, with a choice of spring reinforced or nonspring reinforced clips in 30A and 60A. Clips 100A and above are spring reinforced.
Mersen Fuse Block, Open Style, 250 VAC/VDC, 30 A, 3 Poles, 3 Phase, Class: H/K, Box, 14 to 4 AWG Wire, Threaded Mount, 125 deg C, For Use With: OT, RF, A2Y Types 1,3 OTN, CRN, NRN Fuse, GFPC, 3 in H x 3 in W x 1.38 in DEECO #: GF20358
