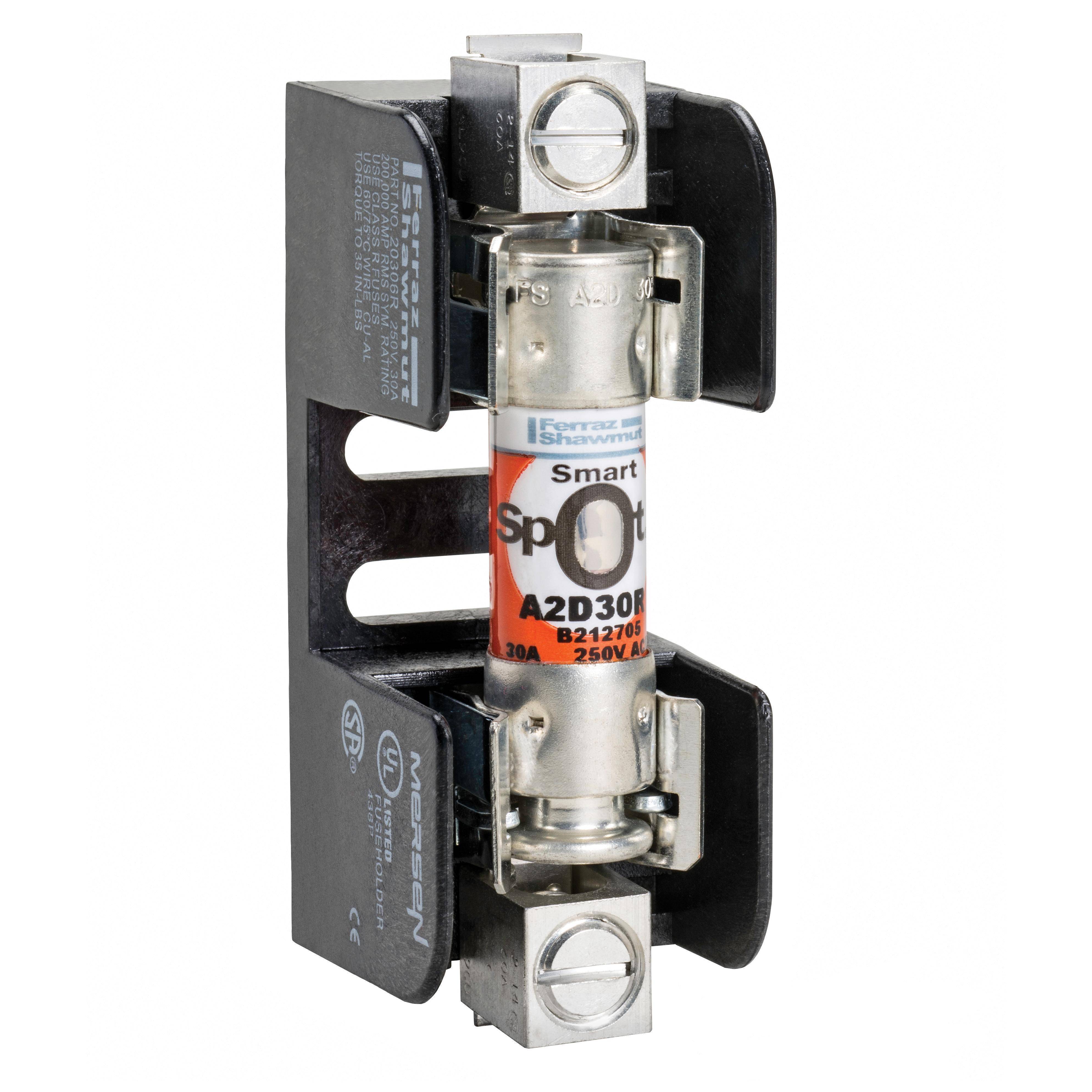

PrintMersen 20356R Open Style Fuse Block, 250 VAC/VDC, 30 A, Class R, 14 to 4 AWG Wire, 1 Poles
Mersen Class H, K and R fuse blocks accommodate all Class H, K and R 250 and 600V power fuses. A choice of screw, pressure plate, box and special order stud connectors fit a wide range of stranded or solid copper or aluminum wire. Insulators are either molded glass-filled polycarbonate (GFPC) or phenolic with verified dielectric strength in excess of 2500V. 30, 60 and 100A fuse blocks feature a unique adder block which can be snapped onto 1-, 2- or 3-pole blocks to form multipole segmented blocks of as many poles as desired. All fuse clips are made of high conductivity tinplated copper, with a choice of spring reinforced or nonspring reinforced clips in 30A and 60A. Clips 100A and above are spring reinforced.
Mersen Fuse Block, Open Style, 250 VAC/VDC, 30 A, 1 Pole, 1 Phase, Class: R, Copper Box, 14 to 4 AWG Wire, Threaded Mount, For Use With: A2D-R, A2K-R, TR-R Fuse, GFPC, 3 in H x 1.25 in W x 1.38 in DEECO #: GF20356R
