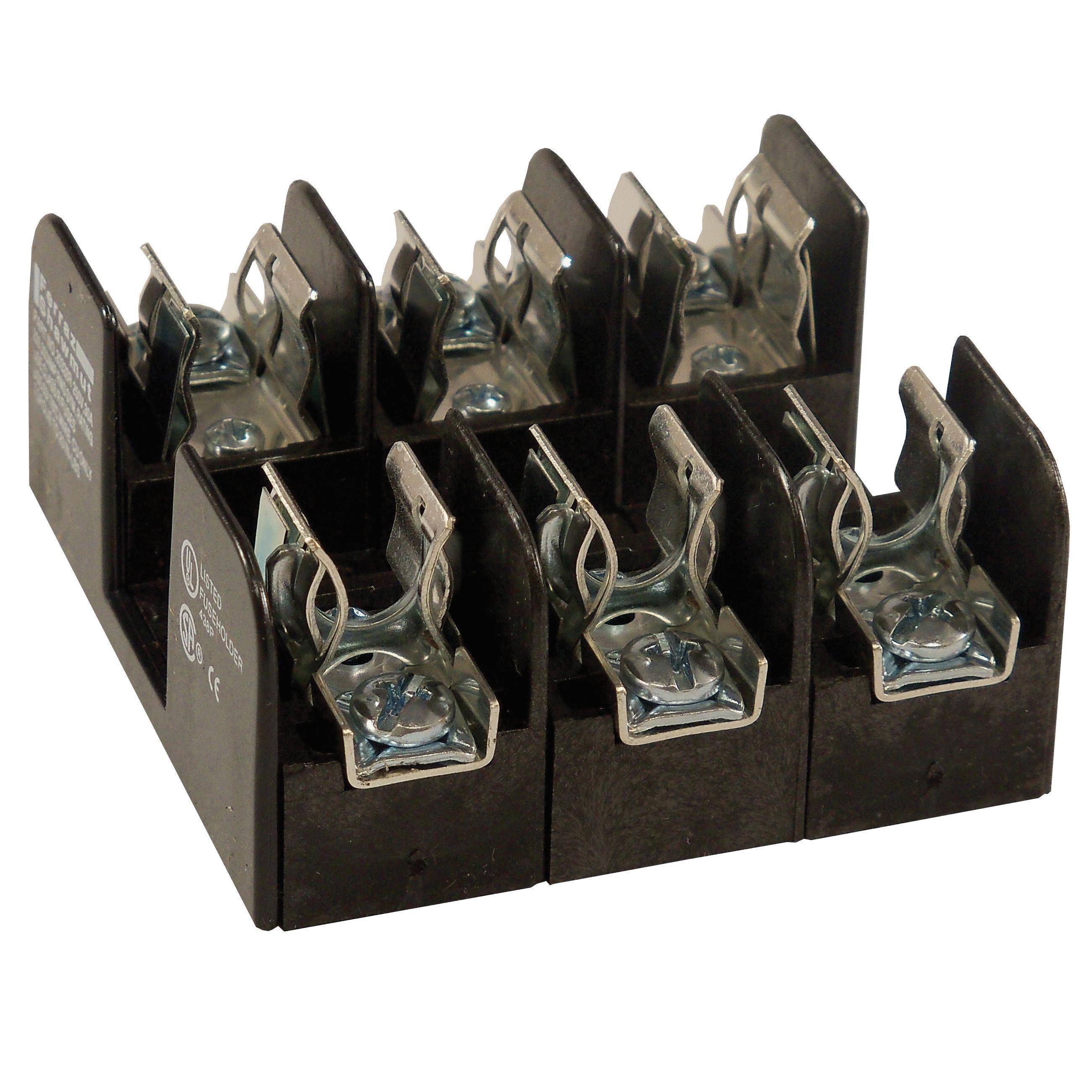

PrintMersen 20328R Open Style Fuse Block, 250 VAC, 30 A, Class R, 14 to 10 AWG Wire, 3 Poles
Mersen Class H, K and R fuse blocks accommodate all Class H, K and R 250 and 600V power fuses. A choice of screw, pressure plate, box and special order stud connectors fit a wide range of stranded or solid copper or aluminum wire. Insulators are either molded glass-filled polycarbonate (GFPC) or phenolic with verified dielectric strength in excess of 2500V. 30, 60 and 100A fuse blocks feature a unique adder block which can be snapped onto 1-, 2- or 3-pole blocks to form multipole segmented blocks of as many poles as desired. All fuse clips are made of high conductivity tinplated copper, with a choice of spring reinforced or nonspring reinforced clips in 30A and 60A. Clips 100A and above are spring reinforced.

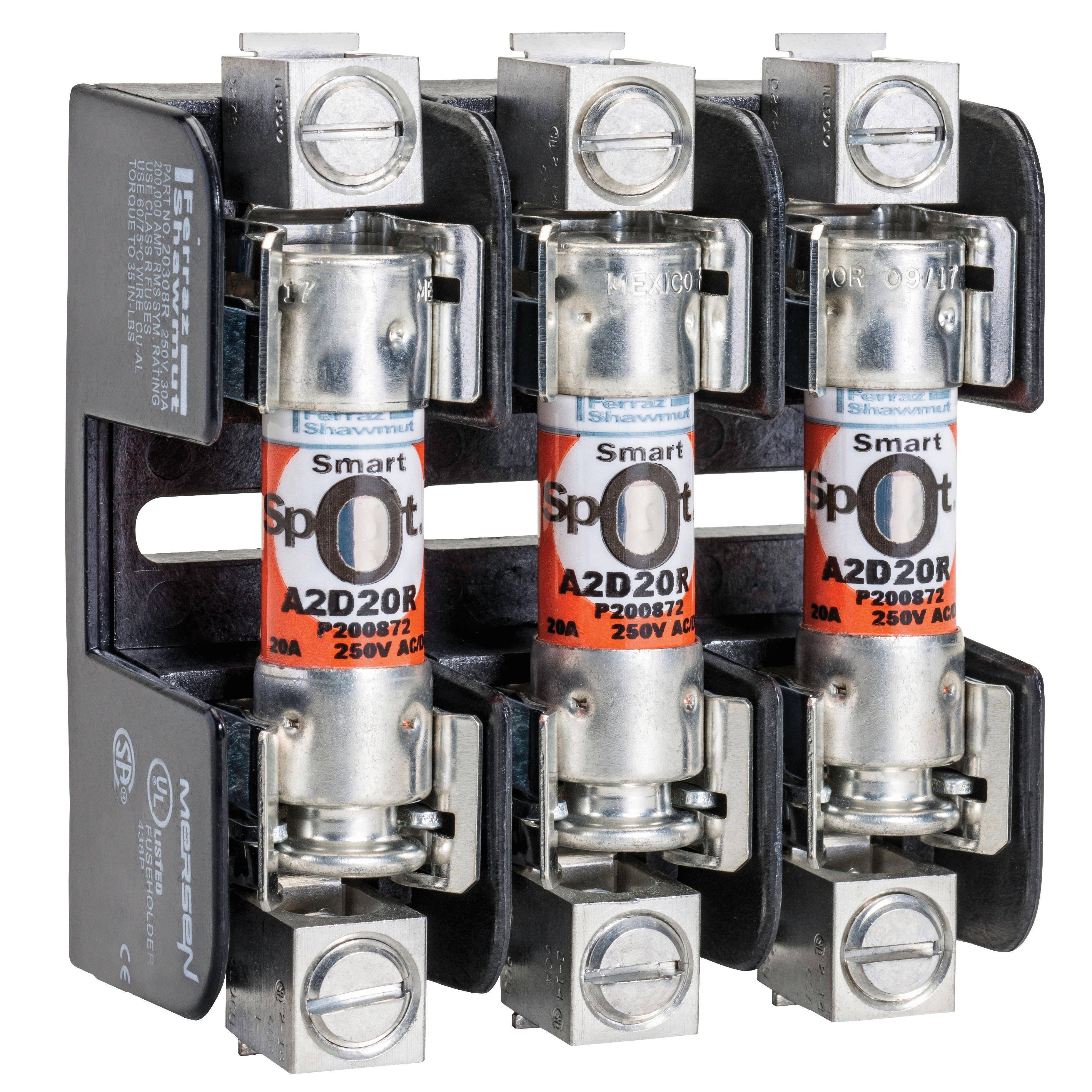

Mersen Fuse Block, Open Style, 250 VAC, 30 A, 3 Pole, 3, Class: R, Fuse Holder Code: H, Pressure Plate, 14 to 10 AWG Wire, Threaded Mount, For Use With: A2D-R, A2K-R and TR-R Series Fuse, Glass Reinforced Polycarbonate, 3 in L x 3 in W x 1.38 in HEECO #: GF20328R
