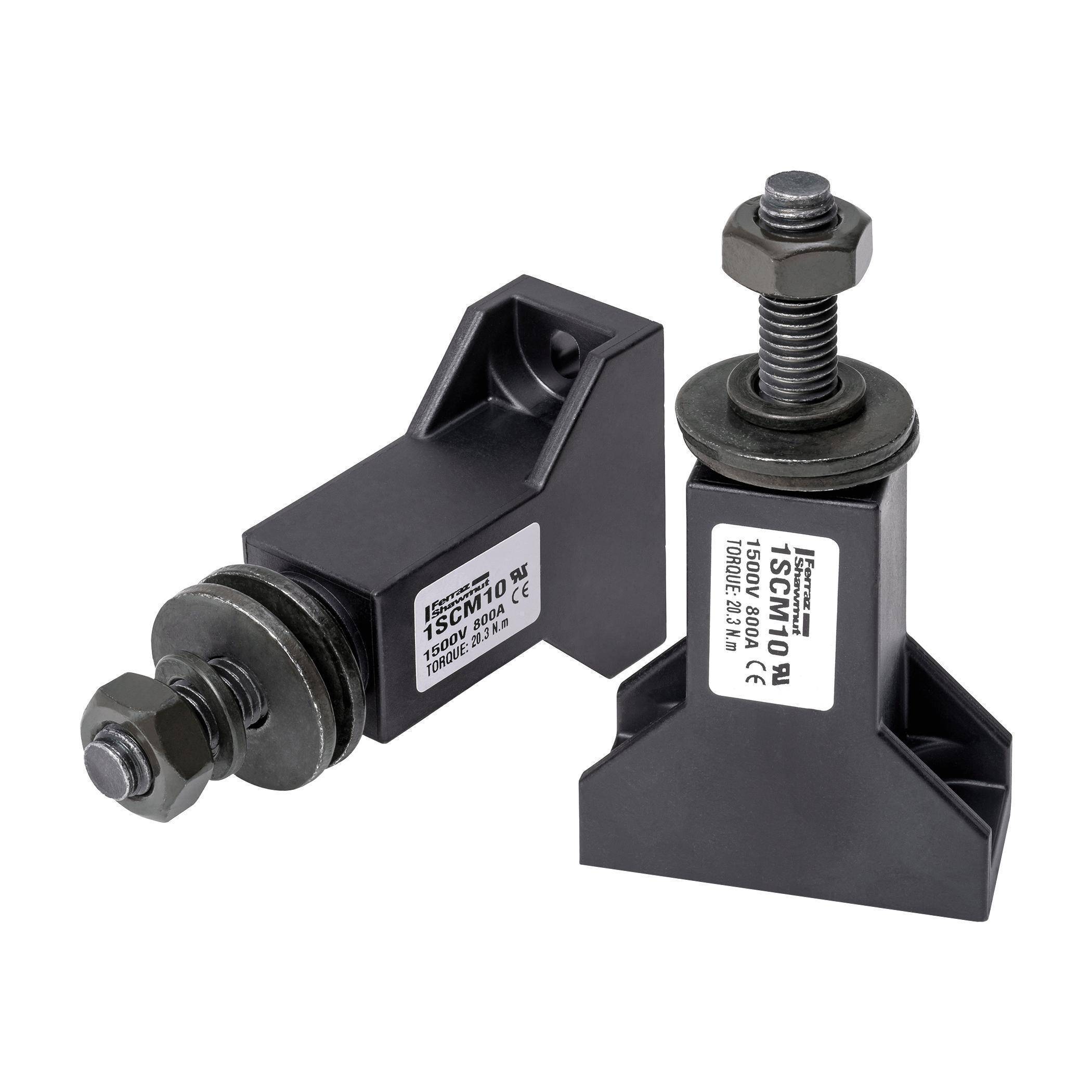

Mersen 1SCM10 Modular Semiconductor Fuse Block, 1000 VAC/VDC, 800 A, 1 Pole

Short Description

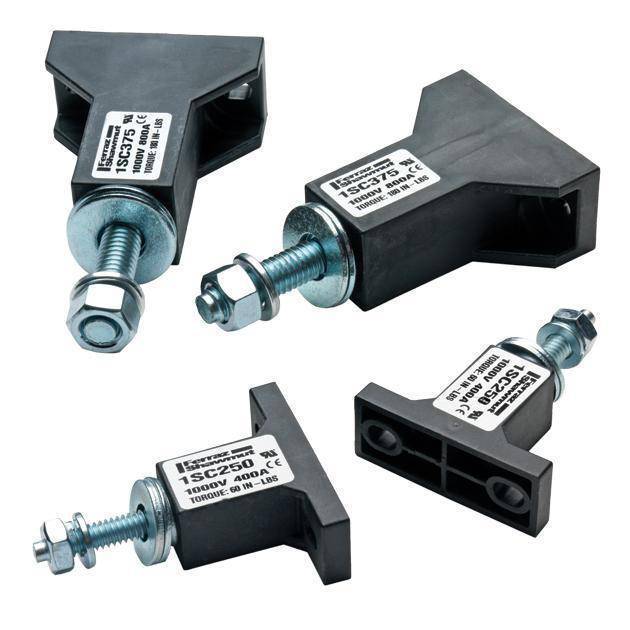

Mersen 1SC and 1MSC semiconductor fuse blocks feature modular mounting that offers greater flexibility in adjusting to various fuse lengths. Both stud type and integral box connector versions are offered to allow for user preference of wire terminations. The integral box connector versions also provide for greater heat dissipation. Mounting hardware is supplied with the blocks

Mersen Semiconductor Fuse Block, Modular, Series: 1SC, 1000 VAC/VDC, 800 A, 1 Pole, 1 ph, M8 Stud Connection, Threaded Mounting, Thermoplastic, 3.82 in H x 2.12 in W x 1 in D Dimensions
MFG #: 1SCM10

EECO #: GF1SCM10

Brand: Mersen
UPC #: 782001376536
Attributes
Features
Documents
Product Information
Attributes
UNSPSC
39121624
Material
Thermoplastic
Mounting Type
Threaded
Voltage Rating
1000
Connection Type
M8 Stud
Number of Phases
1
Type
Modular
Series
1SC
Includes
Mounting Hardware
Dimensions
3.82 in H x 2.12 in W x 1 in D
Amperage Rating
800
Features
  • Modular two-piece design
  • Compact footprint
  • Heat dissipating integral box connector versions
  • Accommodates a large range of semiconductor fuses
  • Rugged phenolic insulators
  • Stud versions
Mersen_1SC250_Specification_Sheet
Mersen_1SC375_Specification_Sheet
