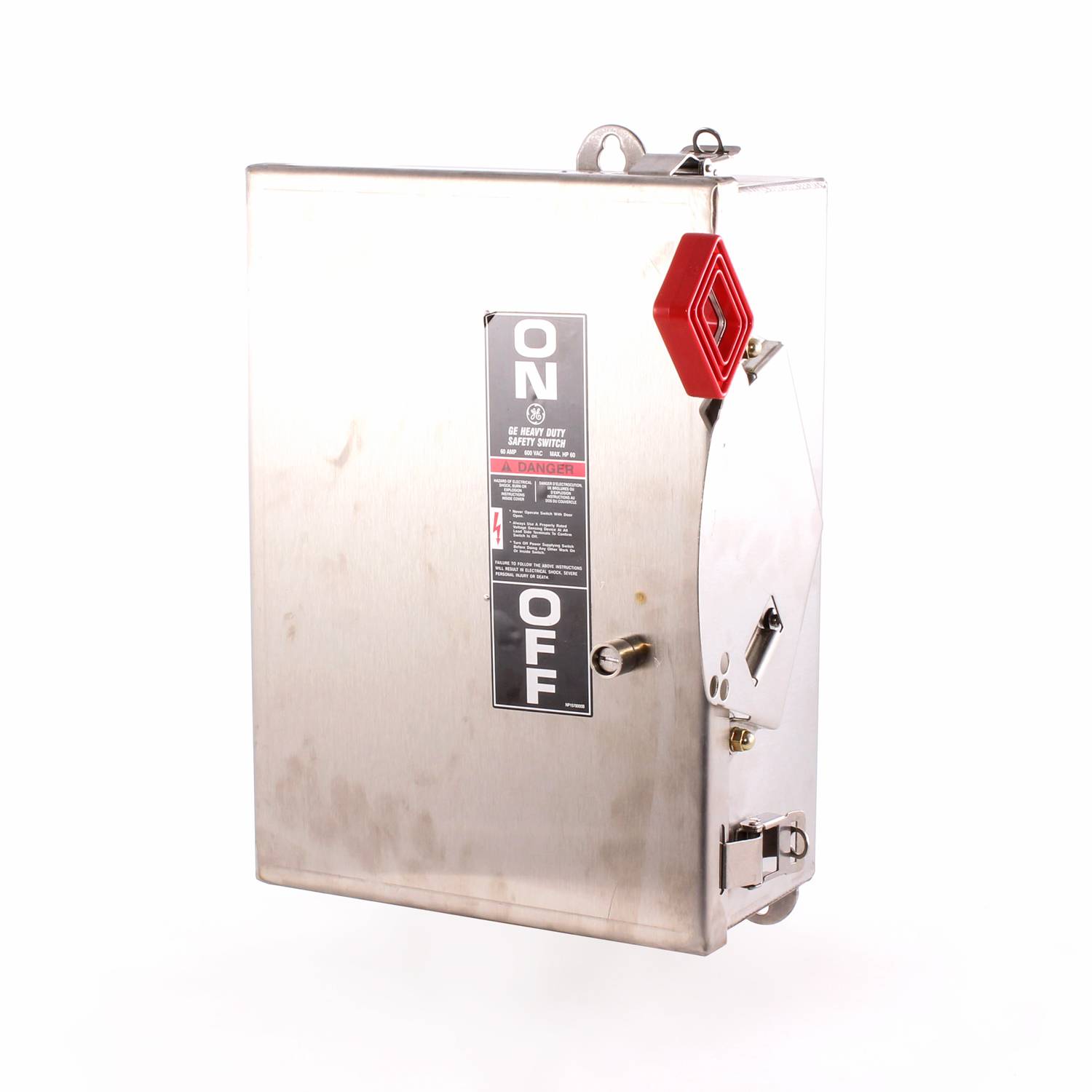

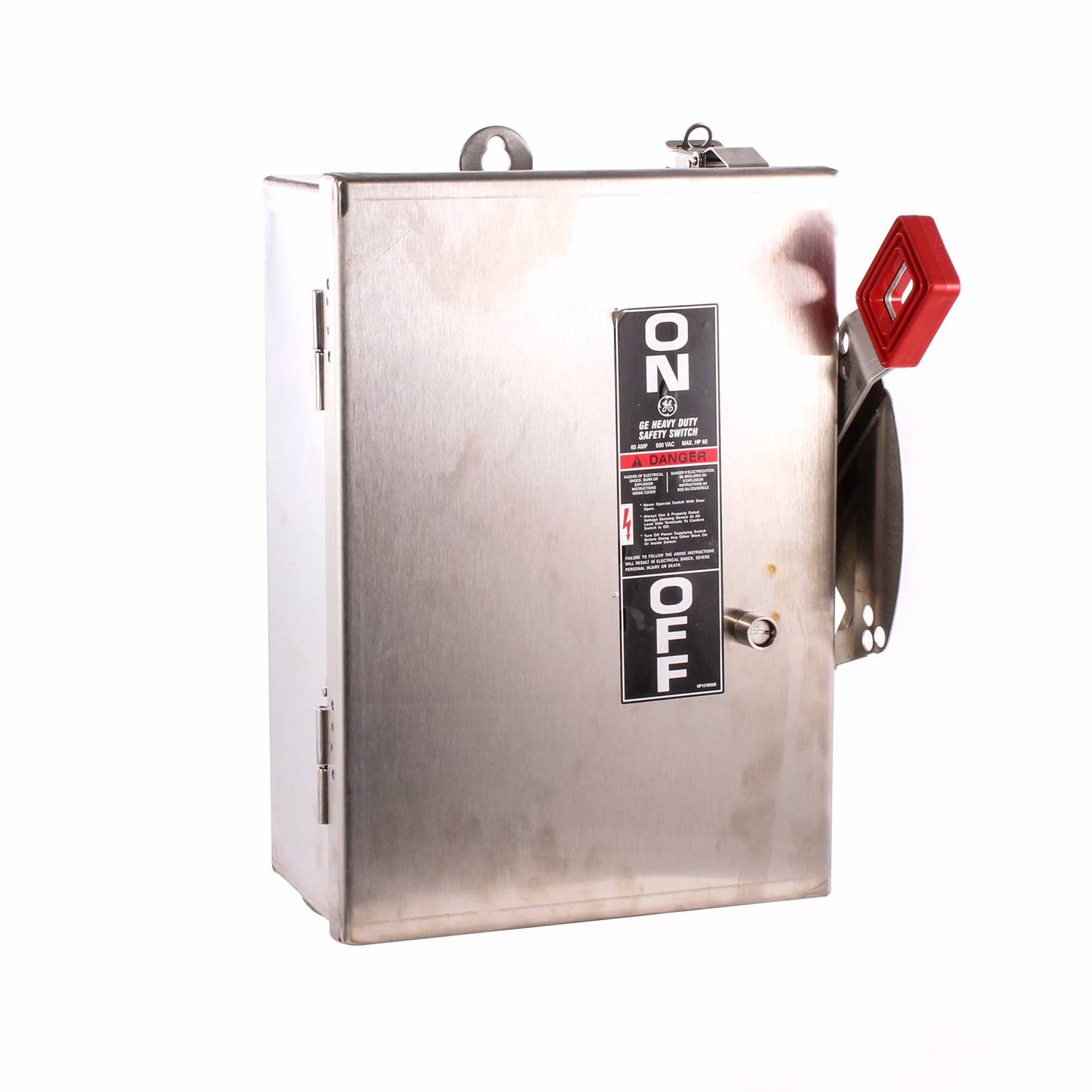

GE Spec-Setter® THN3362SS Heavy Duty Non-Fused Safety Switch, 600 VAC, 60 A, 60 hp, 3 Poles

Short Description

Designed for commercial and industrial applications where safety, high performance and continuity of service are essential. listed to UL standard 98 enclosed and dead front switches. suitable for use as service equipment when installed in accordance with the national electrical code certified to CSA standard 22.2 no 4-04 enclosed and dead front switches. meets or exceeds NEMA KS1 standard for enclosed switches, type HD. fusible and non-fusible switches available (consult BuyLog for interrupt ratings). quick-make, quick-break mechanism. 60/75 deg C conductor rating. full cover interlocks.

GE Spec-Setter® Safety Switch, Heavy Duty Non-Fused, 600 VAC, 60 A, 60 hp, 3 ph, 50/60 Hz, 3 Pole, 3 Wires, 200 kA Short Circuit Current Rating, Handle Actuator, Class H/J/K/R Insulation, NEMA 4/4X, 3-Point/Self-Leveling Mount, Line/Load Lug Terminal, 60 to 75 deg C, 10.1 in W x 9.6 in D x 13.3 in H, 304 Stainless Steel, Hot Dipped Galvanized/Powder Coated

MFG #: THN3362SS

EECO #: GETHN3362SS

Brand: GE
UPC #: 783164133196
Attributes
Features
Documents
Product Information
Attributes
Phase
3
Finish
Hot Dipped Galvanized/Powder Coated
UNSPSC
39122205
Material
304 Stainless Steel
Application
Commercial, Industrial, Electrical Distribution and Control Applications
Mounting Type
3-Point/Self-Leveling
Terminal Type
Line/Load Lug
Enclosure Type
NEMA 4/4X
Voltage Rating
600
Insulation Type
Class H/J/K/R
Number of Wires
3
Frequency Rating
50/60
Temperature Rating
60 to 75
Type
Heavy Duty Non-Fused
Dimensions
10.1 in W x 9.6 in D x 13.3 in H
Horsepower
60
Actuator Type
Handle
Amperage Rating
60
Features
  • Highly visible ON/OFF label takes the guesswork out of safety and gives a clean, modern appearance
  • Coin-proof, defeatable dual interlocks meet all safety inspection requirements
  • Wide, unobstructed gutter and removable interior make wire pulling and lug connections quick and easy
  • 3-point mounting pattern speeds installation and simplifies ganging in close quarters
  • Clear line shield allows visual verification of blade position while guarding against accidental contact with live parts
  • Plated blades provide visible confirmation of contact position
  • Direct drive, quick-make, quick-break mechanism "snaps" the contacts open and closed, providing positive ON/OFF indication while prolonging switch life
  • Spring reinforced fuse clips assure reliable contact for cool operation
  • Suitable for class H, K, J or R fuses
