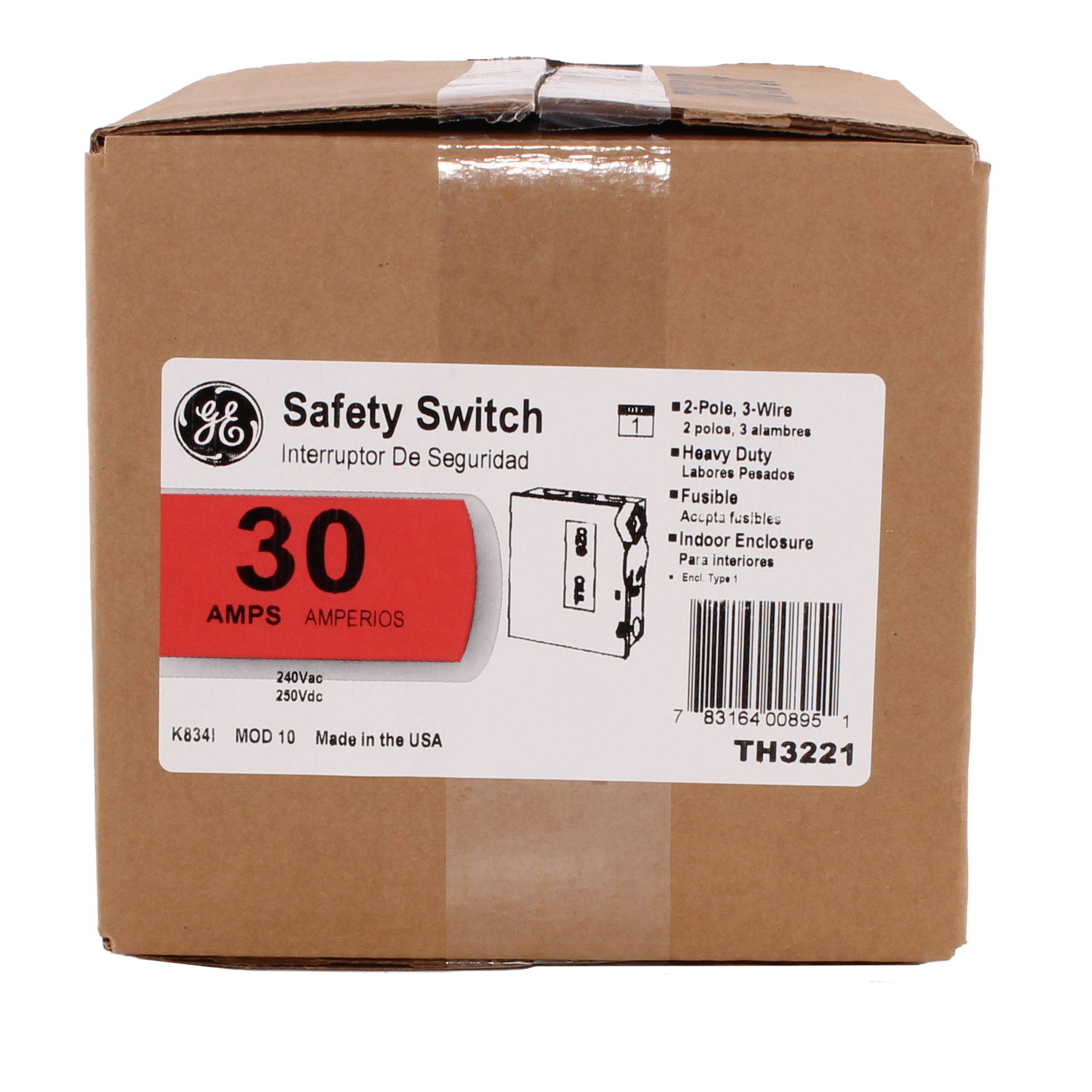

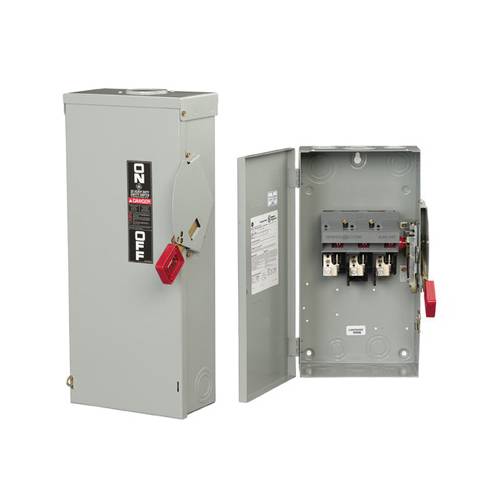

GE Spec-Setter™ TH3221 Fused Heavy Duty Safety Switch, 240 VAC, 30 A, 1-1/2 hp, 3 hp, 2 Poles

Short Description

Designed for commercial and industrial applications where safety, high performance and continuity of service are essential. listed to UL standard 98 enclosed and dead front switches. suitable for use as service equipment when installed in accordance with the national electrical code certified to CSA standard 22.2 no 4-04 enclosed and dead front switches. meets or exceeds NEMA KS1 standard for enclosed switches, type HD. fusible and non-fusible switches available (consult BuyLog for interrupt ratings). quick-make, quick-break mechanism. 60/75 deg C conductor rating. full cover interlocks.

GE Spec-Setter™ Safety Switch, Fused Heavy Duty, 240 VAC, 30 A, 1-1/2 hp, 3 hp, 1 ph, 50/60 Hz Frequency, 2 Pole, 3 Wires, 200 kA Short Circuit, Handle Actuator, Class H/J/K/R Insulation, NEMA 1 Enclosure, 3-Point/Self-Leveling Mounting, Line/Load Lug Terminal, 60 to 75 deg C, 7.1 in W x 6.1 in D x 10.3 in H Dimensions, Stainless Steel, Hot Dipped Galvanized/Powder Coated

MFG #: TH3221

EECO #: GETH3221

Brand: GE
UPC #: 783164008951
Attributes
Features
Documents
Product Information
Attributes
Phase
1
Finish
Hot Dipped Galvanized/Powder Coated
UNSPSC
39122205
Material
Stainless Steel
Application
Commercial, Industrial, Electrical Distribution and Control Applications
Mounting Type
3-Point/Self-Leveling
Terminal Type
Line/Load Lug
Enclosure Type
NEMA 1
Voltage Rating
240
Insulation Type
Class H/J/K/R
Number of Wires
3
Frequency Rating
50/60
Temperature Rating
60 to 75
Type
Fused Heavy Duty
Dimensions
7.1 in W x 6.1 in D x 10.3 in H
Horsepower
1-1/2 hp, 3 hp
Actuator Type
Handle
Amperage Rating
30
Features
  • Highly visible ON/OFF label takes the guesswork out of safety and gives a clean, modern appearance
  • Coin-proof, defeatable dual interlocks meet all safety inspection requirements
  • Wide, unobstructed gutter and removable interior make wire pulling and lug connections quick and easy
  • 3-point mounting pattern speeds installation and simplifies ganging in close quarters
  • Clear line shield allows visual verification of blade position while guarding against accidental contact with live parts
  • Plated blades provide visible confirmation of contact position
  • Direct drive, quick-make, quick-break mechanism "snaps" the contacts open and closed, providing positive ON/OFF indication while prolonging switch life
  • Spring reinforced fuse clips assure reliable contact for cool operation
  • Suitable for class H, K, J or R fuses
  • 3 hp at 240 VAC time delay, 7 hp at 240 VAC time delay, 5 hp at 600 VDC horsepower rating
