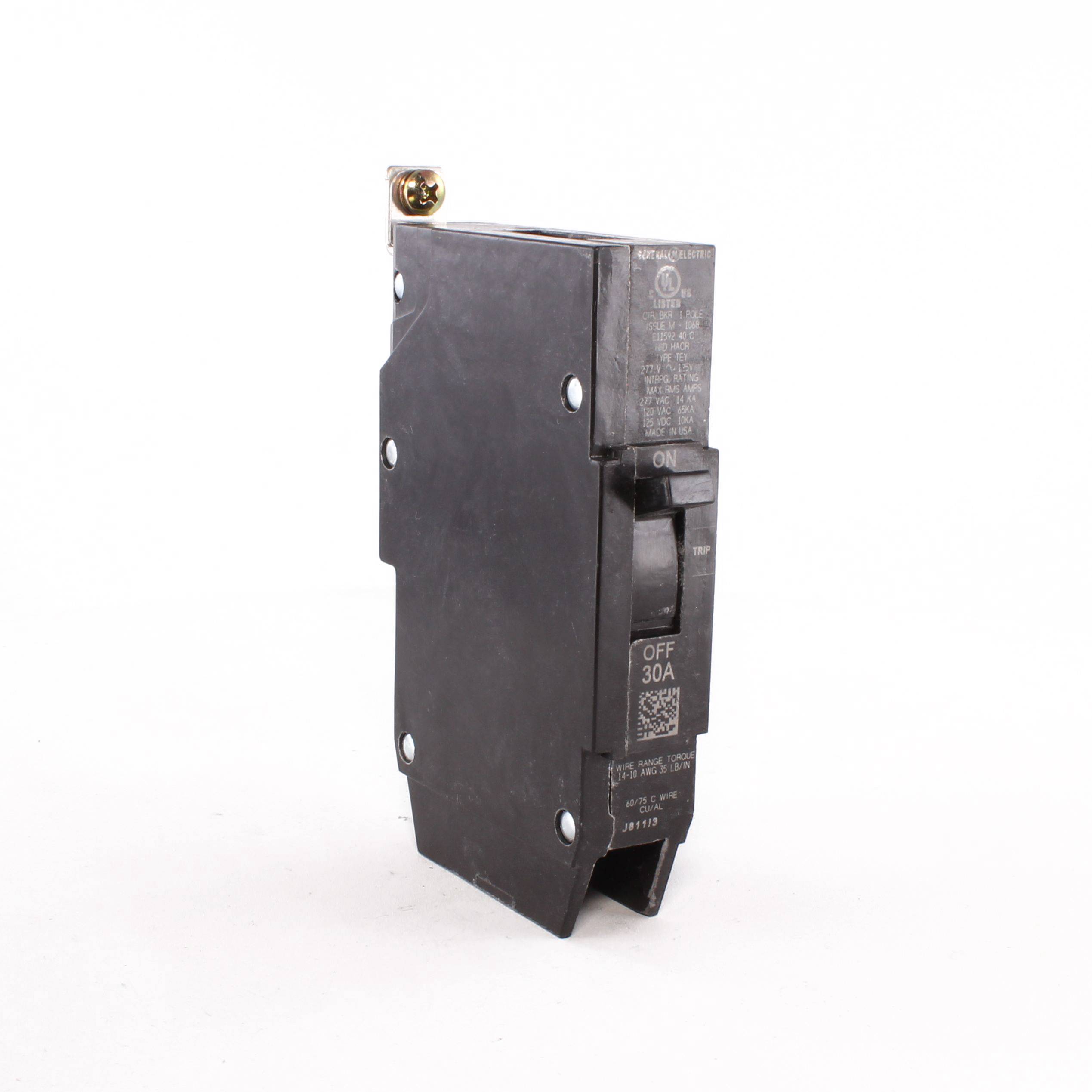

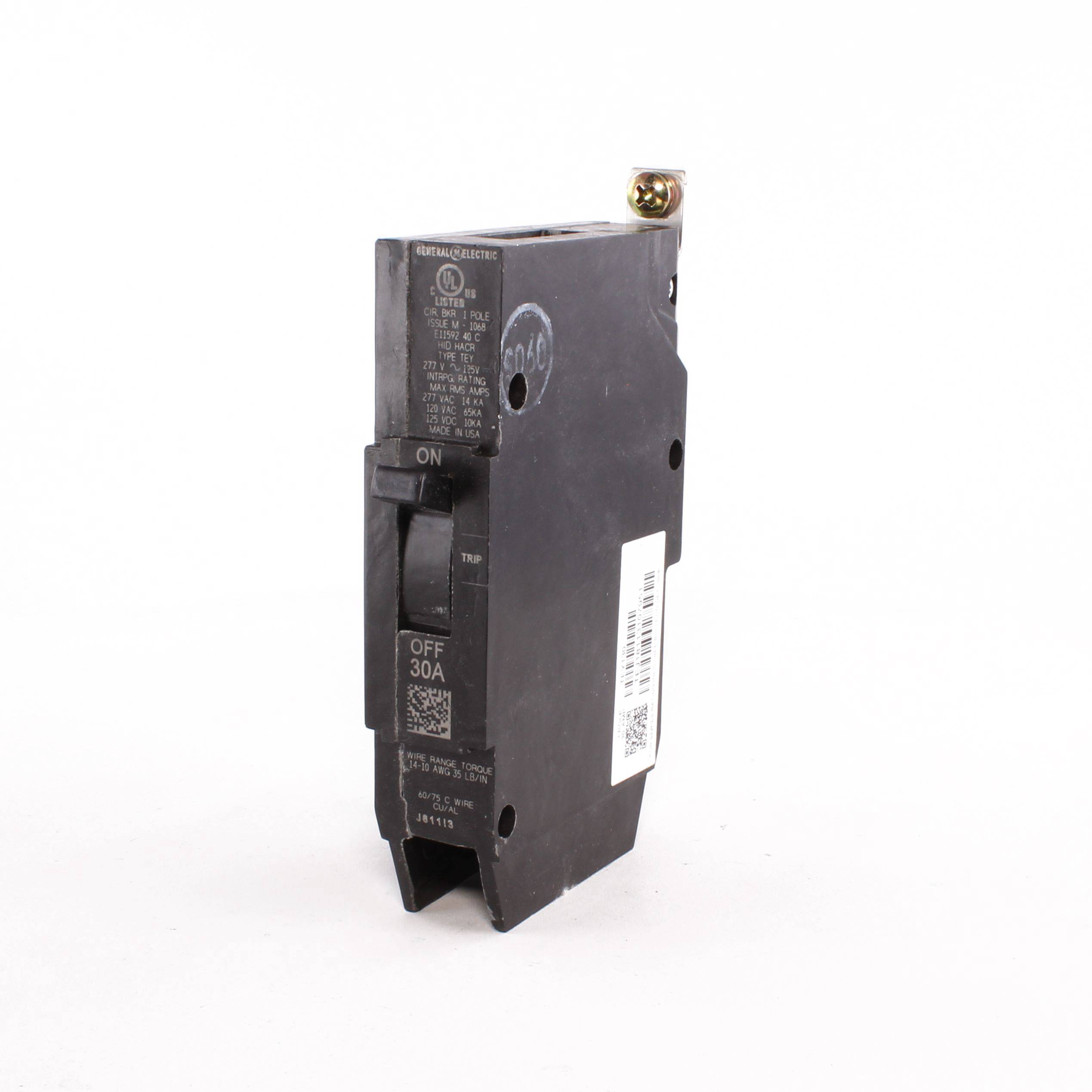

GE TEY130 Compact Lighting Panel Circuit Breaker With Copper/Aluminum Load Lug, 120/240/277 VAC, 30 A, 65/14 kA Interrupt, 1 Pole, LI/Non-Interchangeable Thermal Magnetic Trip

Short Description

The TEY is a 1 in W per pole, compact, "bolt-on" circuit breaker for use on grounded 480Y/277 VAC systems. the bolt-on mounting base accessory makes the TEY suitable for varied applications as a lug-lug breaker. all TEY circuit breakers feature quick-make quick-break mechanisms, common trip bars and easy to spot trip indication to ensure safety and reliability. TEY breakers are available in 1, 2 and 3-pole versions and can be ordered with auxiliary contact and shunt trip accessories.

GE Lighting Panel Circuit Breaker, Compact, 120/240/277 VAC, 30 A, 50/60 Hz Frequency, 65/14 kA Interrupt, TEY Frame, LI/Non-Interchangeable Thermal Magnetic Trip, 1 Pole, 1 ph, Pivot/Toggle Handle Actuator, Load Lug Connection, 14 to 2/0 AWG Wire, Bolted-On Mounting, 40 deg C, 5-1/4 in H x 1 in W x 3-1/16 in D Dimensions, Plastic

MFG #: TEY130

EECO #: GETEY130

Brand: GE
UPC #: 783164180930
Attributes
Features
Documents
Product Information
Attributes
Frame
TEY
Phase
1
UNSPSC
39121601
Material
Plastic
Trip Type
LI/Non-Interchangeable/Thermal Magnetic
Wire Size
14 to 2/0
Application
Switchboards, Motor Control Centers, Lighting, Power and Customized Control Panelboards and Electrical Distribution Applications
Mounting Type
Bolted-On
Voltage Rating
120/240/277
Connection Type
Load Lug
Frequency Rating
50/60
Temperature Rating
40
Type
Compact
Dimensions
5-1/4 in H x 1 in W x 3-1/16 in D
Actuator Type
Pivot/Toggle Handle
Amperage Rating
30
Features
  • Ambient compensated
  • Multiple short circuit tiers
  • Cost effective protection
  • Mounting base for unit mount installations
  • 14 kA at 120/240 VAC, 14 kA at 240 VAC, 14 kA at 277 VAC, 65 kA at 120 VAC interrupt rating
GE_TEY130_Brochure
IDW_DOCUMENT_b1fd41ee8c96d3e8c49087041ad594ad7449022247bd2d0063015e1e8b9125d9
Qty Unit price
Ea
1 $103.09
