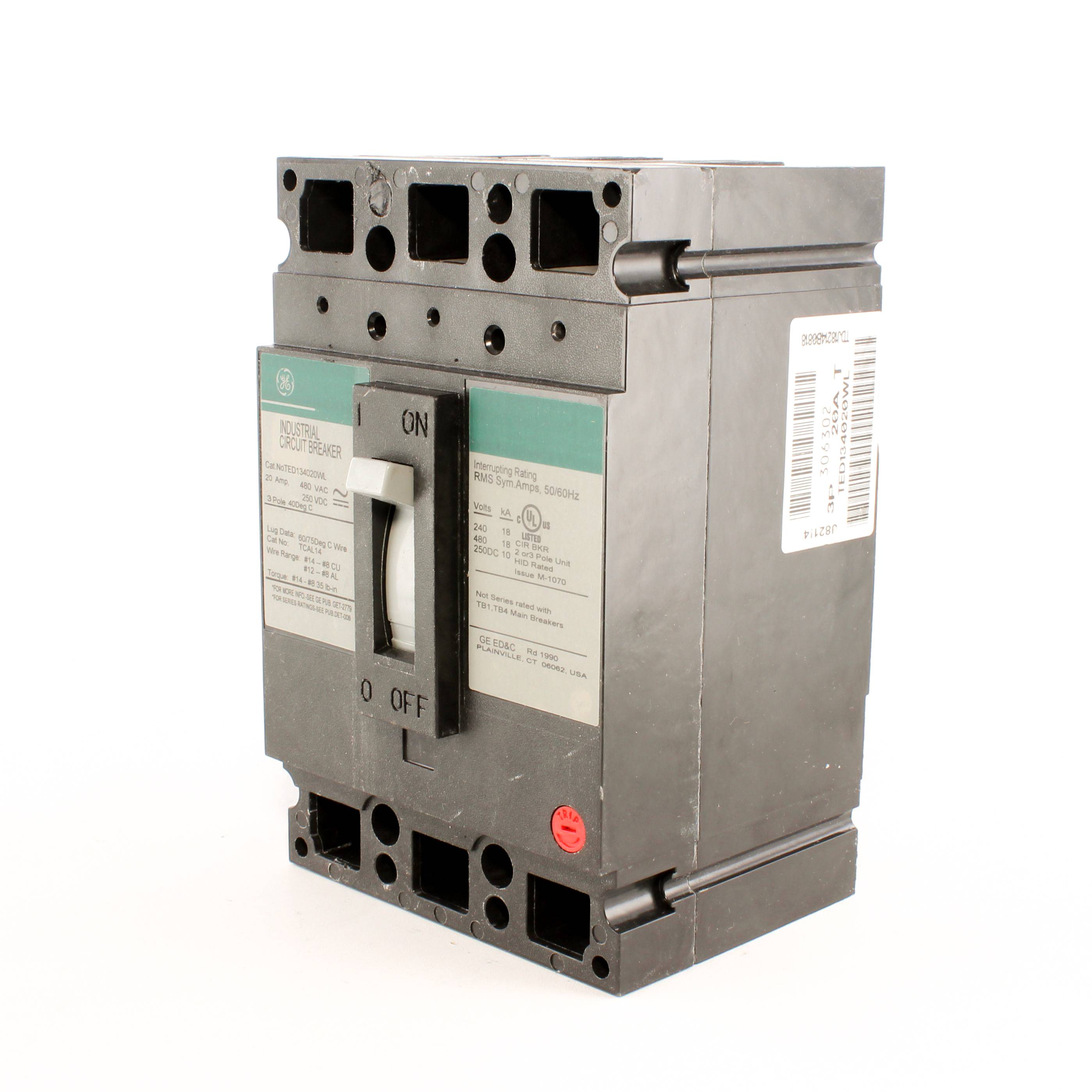

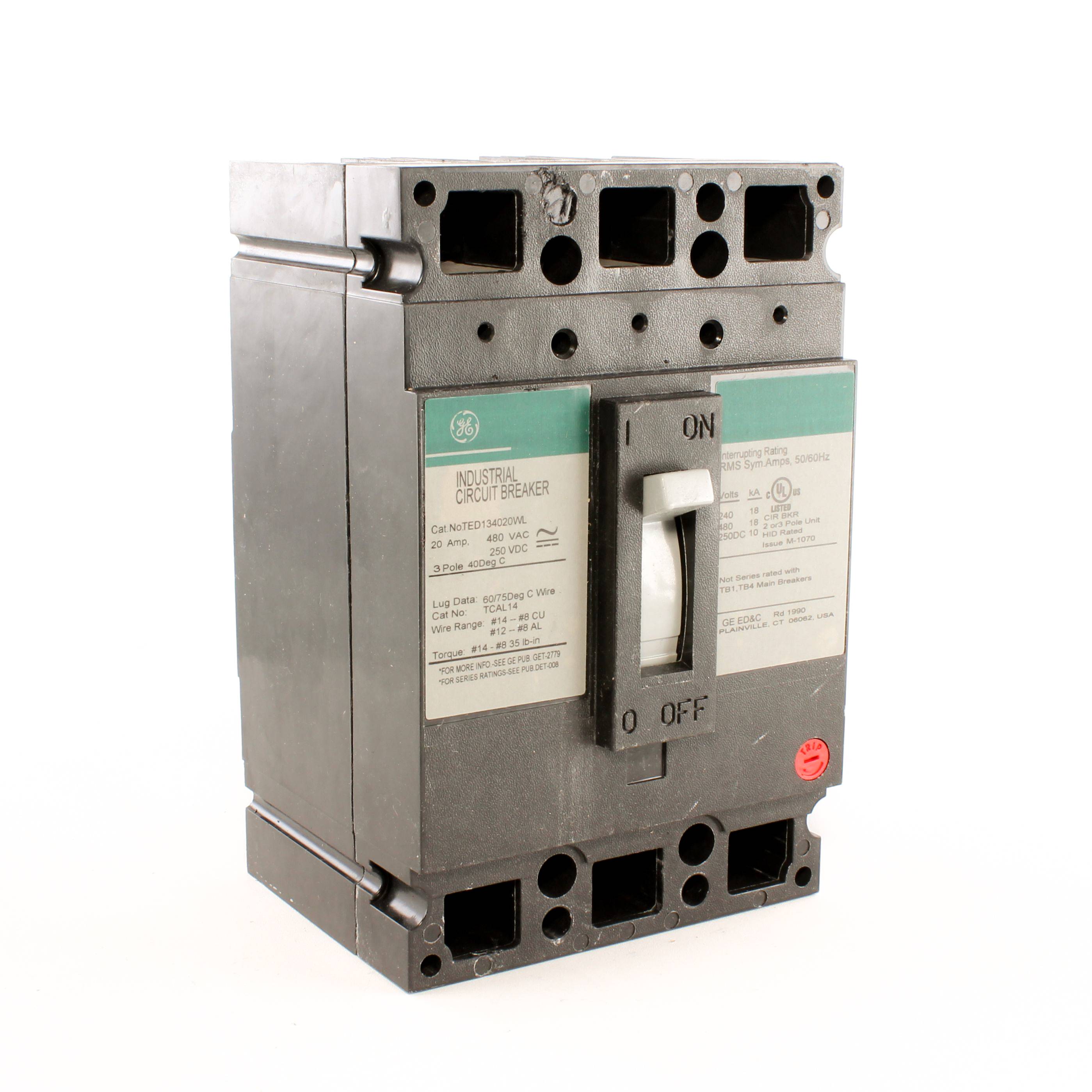

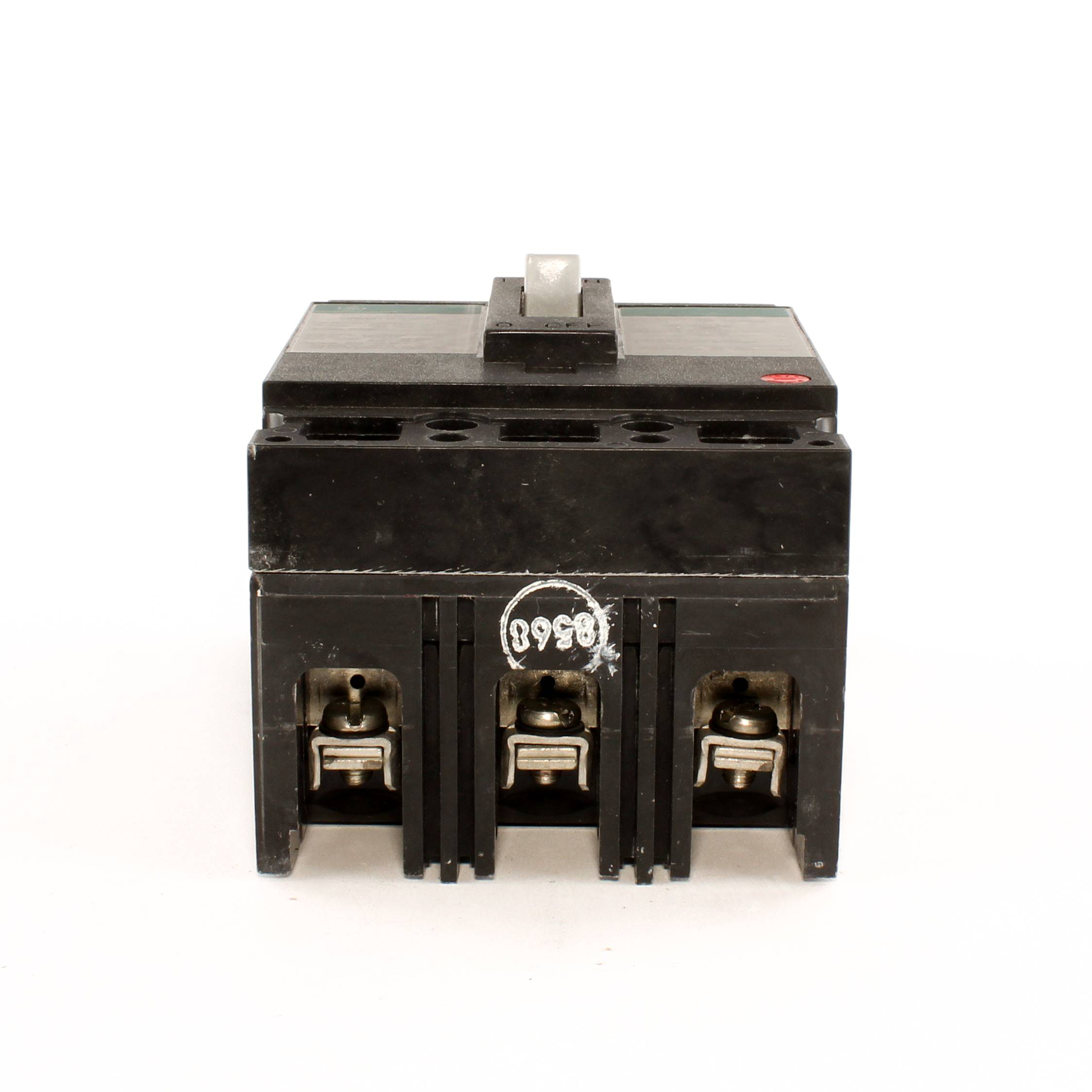

GE TED134020WL Molded Case Circuit Breaker, 480 VAC/500 VDC, 20 A, 18 kA AC, 10 kA DC, 14 kA AC Interrupt, 3 Poles, LI/Non-Interchangeable Thermal Magnetic Trip

Short Description

The E150 product line consists of thermal magnetic circuit breakers, magnetic circuit breakers and molded case switches rated up to 150 A and 600 VAC. catalog numbers include the complete breaker or switch. the WL catalog number suffix indicates that the devices come with copper aluminum line and load lugs.

GE Molded Case Circuit Breaker, 480 VAC/500 VDC, 20 A, 18 kA AC, 10 kA DC, 14 kA AC Interrupt, E150 Frame, LI/Non-Interchangeable Thermal Magnetic Trip, 3 Pole, 3 ph, Line/Load Lug Connection, Panel Mounting, 40 deg C, 6-5/16 in H x 4-1/8 in W x 3-3/8 in D Dimensions

MFG #: TED134020WL

EECO #: GETED134020WL

Brand: GE
UPC #: 783164063028
Attributes
Features
Documents
Product Information
Attributes
Frame
E150
Phase
3
UNSPSC
39121601
Trip Type
LI/Non-Interchangeable/Thermal Magnetic
Application
Thermal Magnetic, Electrical Distribution and Control Applications
Mounting Type
Panel
Voltage Rating
480 VAC/500 VDC
Connection Type
Line/Load Lug
Temperature Rating
40
Includes
Copper/Aluminum Line and Load Lug
Dimensions
6-5/16 in H x 4-1/8 in W x 3-3/8 in D
Amperage Rating
20
Features
  • Standard continuous current rated
  • EB GO schedule
  • Suitable for reverse feed
  • For HID (high intensity discharge)
  • TC041, TCAL14 lugs
  • 18 kA at 120/240/277/480 VAC, 14 kA at 600 VAC, 10 kA at 125/250/500 VDC interrupt rating
  • UL listed for HID (high intensity discharge)
  • Core E/mid tier
