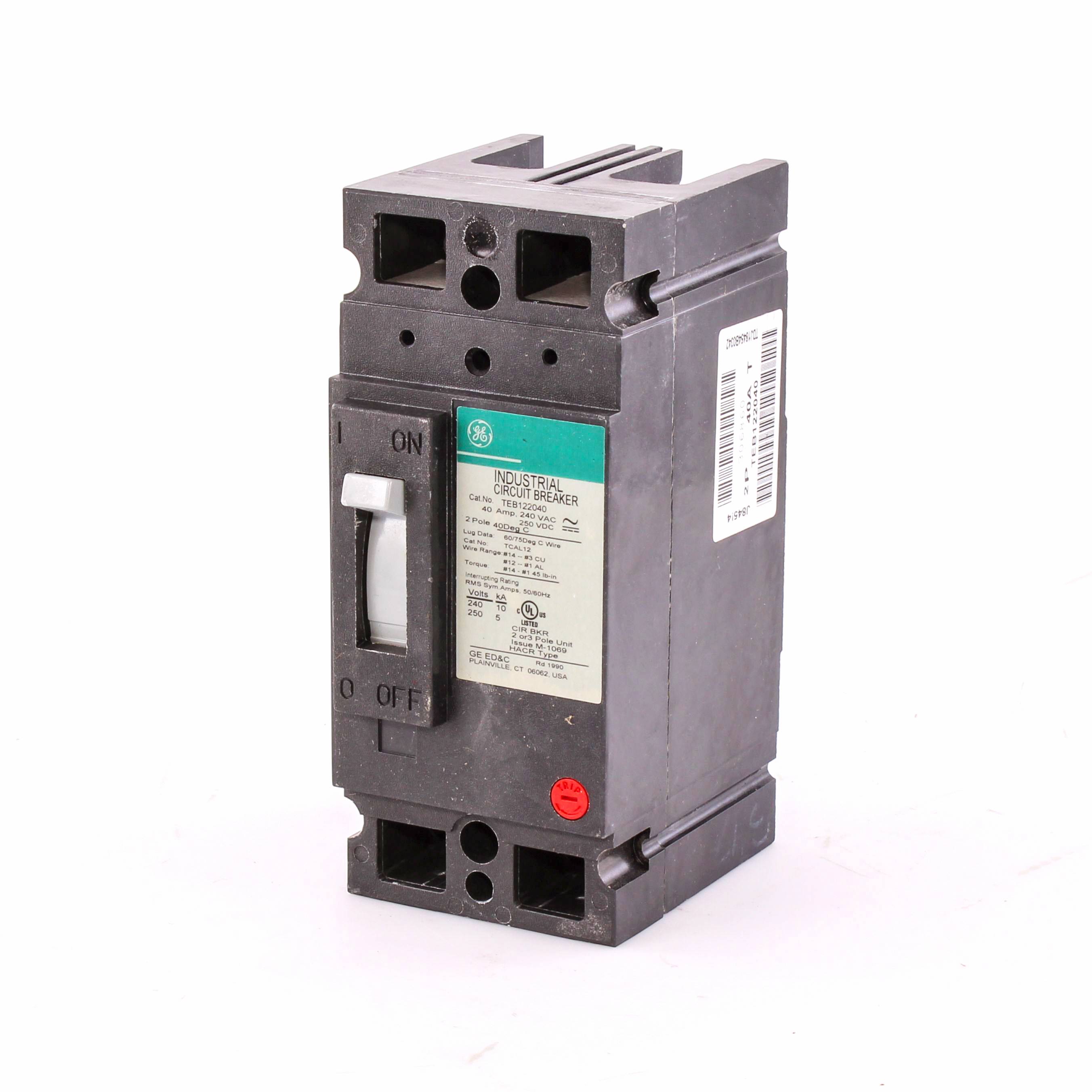

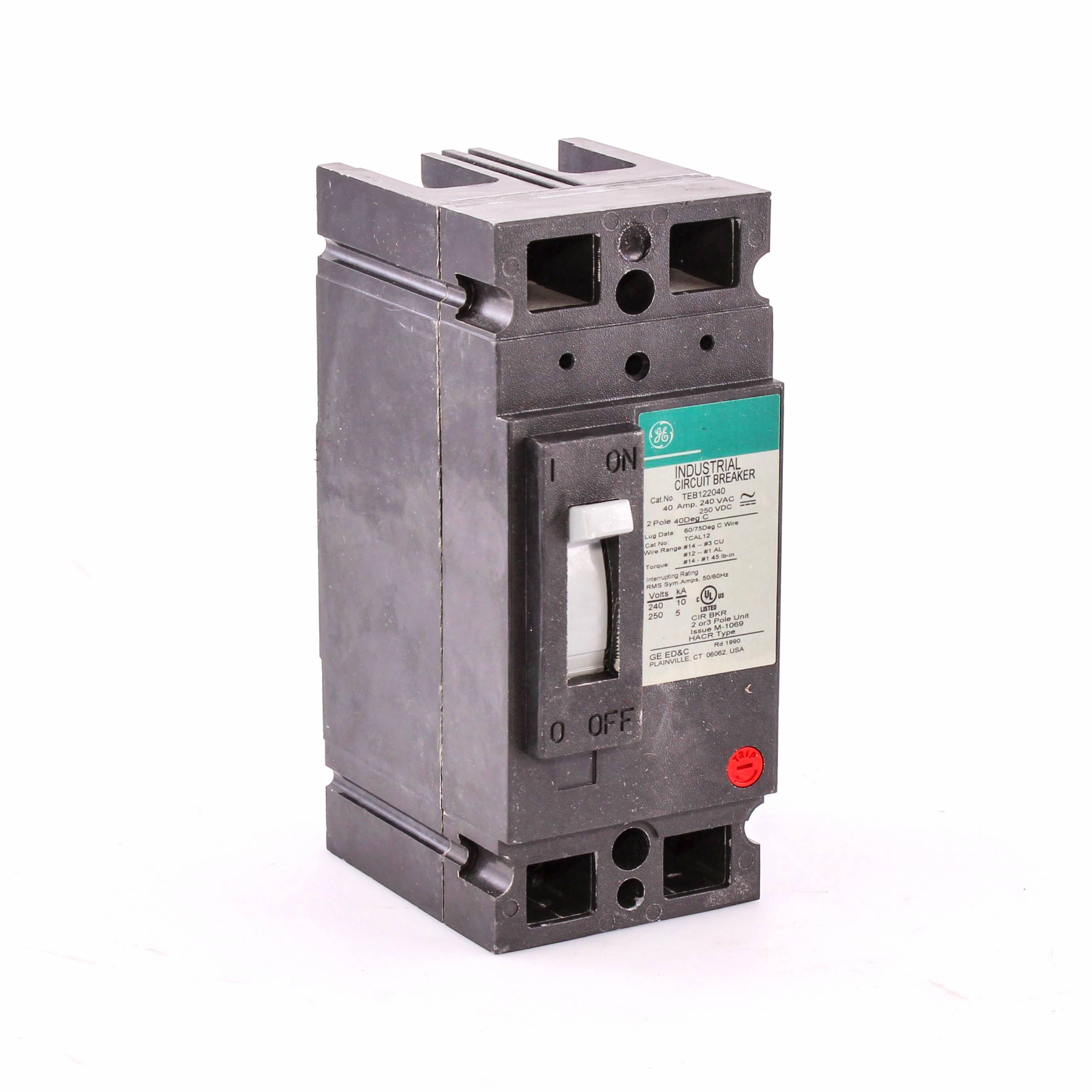

GE TEB122040WL Type TEB Core E Low Tie Molded Case Circuit Breaker, 240 VAC, 40 A, 10 kA Interrupt, 2 Poles, LI/Non-Interchangeable Thermal Magnetic Trip

Short Description

The E150 product line consists of thermal magnetic circuit breakers, magnetic circuit breakers and molded case switches rated up to 150 A and 600 VAC. Catalog numbers include the complete breaker or switch. The WL catalog number suffix indicates that the devices come with copper/aluminum line and load lugs.

GE Molded Case Circuit Breaker, Type TEB Core E Low Tie, 240 VAC, 40 A, 50/60 Hz Frequency, 10 kA Interrupt, E150 Frame, LI/Non-Interchangeable Thermal Magnetic Trip, 2 Pole, 1 ph, Pivot/Toggle Handle Actuator, Line/Load Lug Connection, 8 AWG Wire, Bolted-On Mounting, 10 to 50 deg C, 2-3/4 in W x 3-3/8 in D x 6-5/16 in H Dimensions, Plastic

MFG #: TEB122040WL

EECO #: GETEB122040WL

Brand: GE
UPC #: 783164068610
Attributes
Features
Documents
Product Information
Attributes
Frame
E150
Phase
1
UNSPSC
39121601
Material
Plastic
Trip Type
LI/Non-Interchangeable/Thermal Magnetic
Wire Size
8
Application
Industrial, Switchboards, Motor Control Centers, Lighting, Power and Customized Control Panelboards Applications
Mounting Type
Bolted-On
Voltage Rating
240
Connection Type
Line/Load Lug
Frequency Rating
50/60
Temperature Rating
10 to 50
Type
Type TEB Core E Low Tie
Warranty
1 year
Dimensions
2-3/4 in W x 3-3/8 in D x 6-5/16 in H
Actuator Type
Pivot/Toggle Handle
Amperage Rating
40
Features
  • Molded case is molded from high mechanical and high dielectric strength engineered plastic
  • Trip indication is shown by handle position midway between On and Off to reset the trip mechanism, move the handle to extreme off then to On position
  • Quick make, quick break, trip free mechanism minimizes arcing during breaker operation, contacts cannot be ''teased'' into position
  • Trip-free mechanism is independent of manual handle control, the breaker trips under short circuit or overload, even though the operating handle is held in on position
  • VERIFIER® "twist-to-trip" and ''push-to-trip'' mechanically simulates over current tripping through actuation of linkages not operated by the On/Off handle
  • Common trip bar assures instant disconnect of all conductors when an overload or short circuit occurs on any one conductor in the circuit or an accessory trip device operates
  • Silver alloy contacts combine the conductive properties of silver with other elements for clean, positive electrical contacting, pitting and burning are minimized for longer contact life
  • Arc chutes of heat absorbing, insulating material and metal grid plates quickly ''extinguish'' arcs
  • UL listed lugs for copper or aluminum cable, at full frame rating, easy access and simple, straight-in wiring
  • Proven reliability
  • Provide cost effective solutions
  • Multiple types to fit in your application
  • 10 kA at 120/240 VAC, 10 kA at 240 VAC, 5 kA at 125 VDC, 5 kA at 250 VDC interrupt rating
