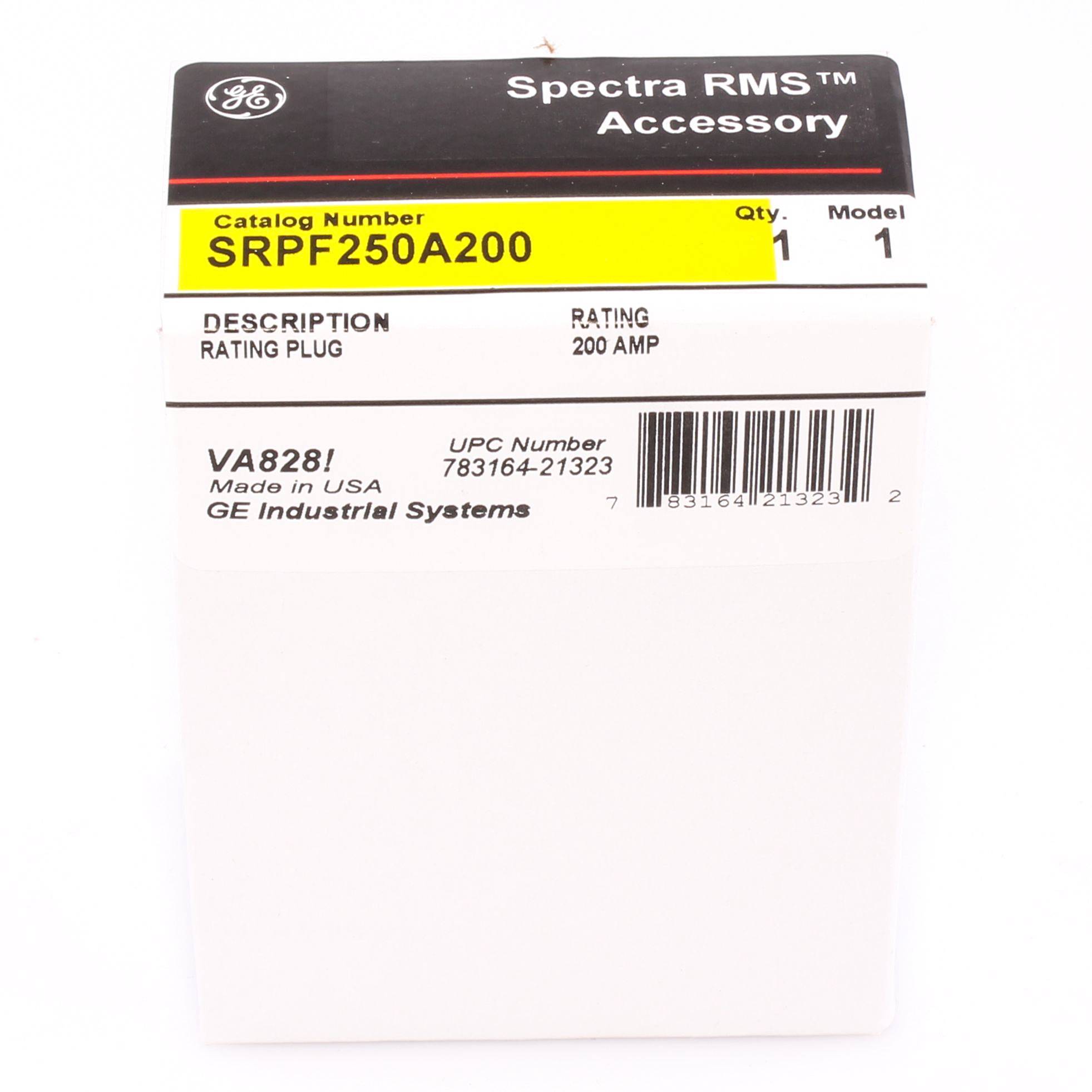

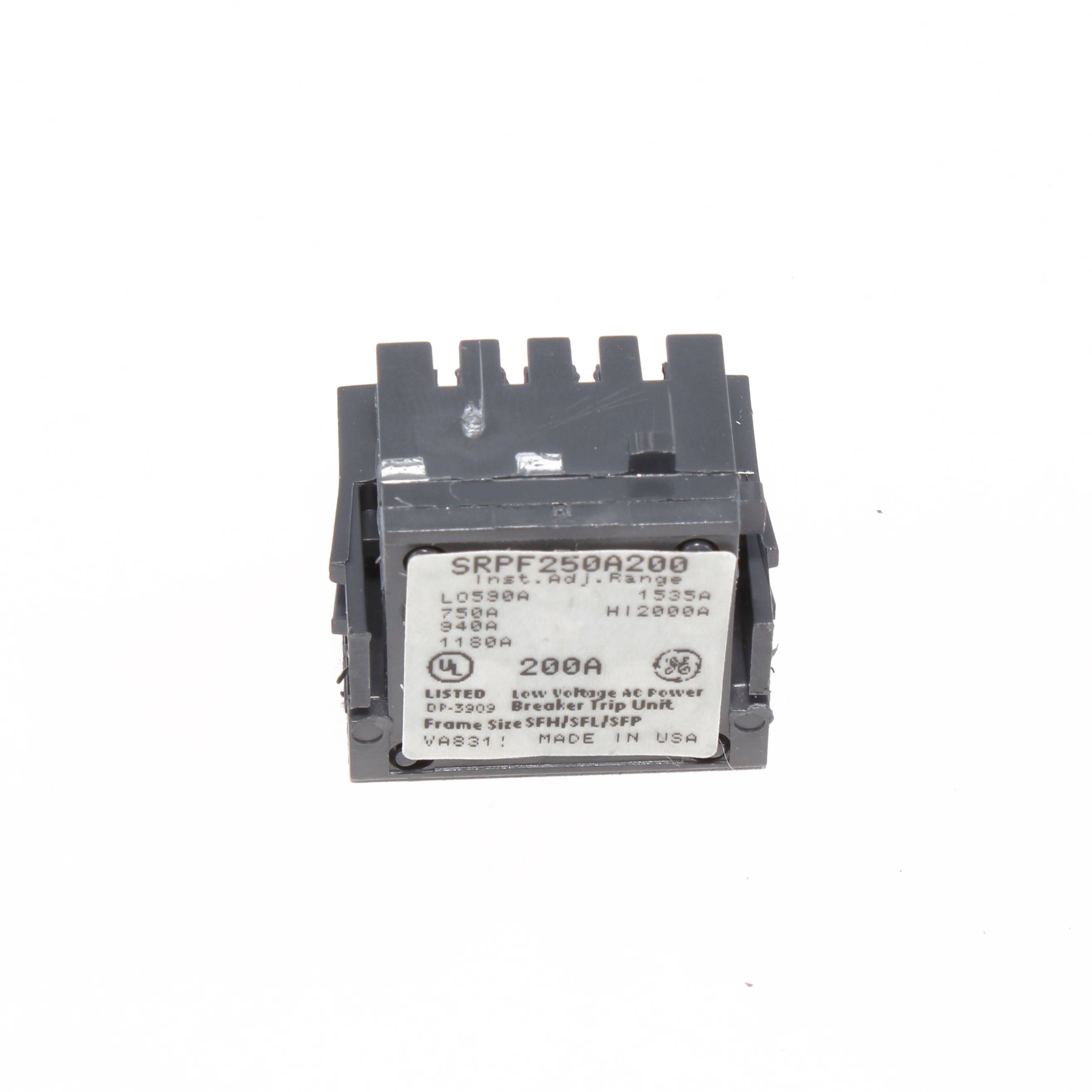

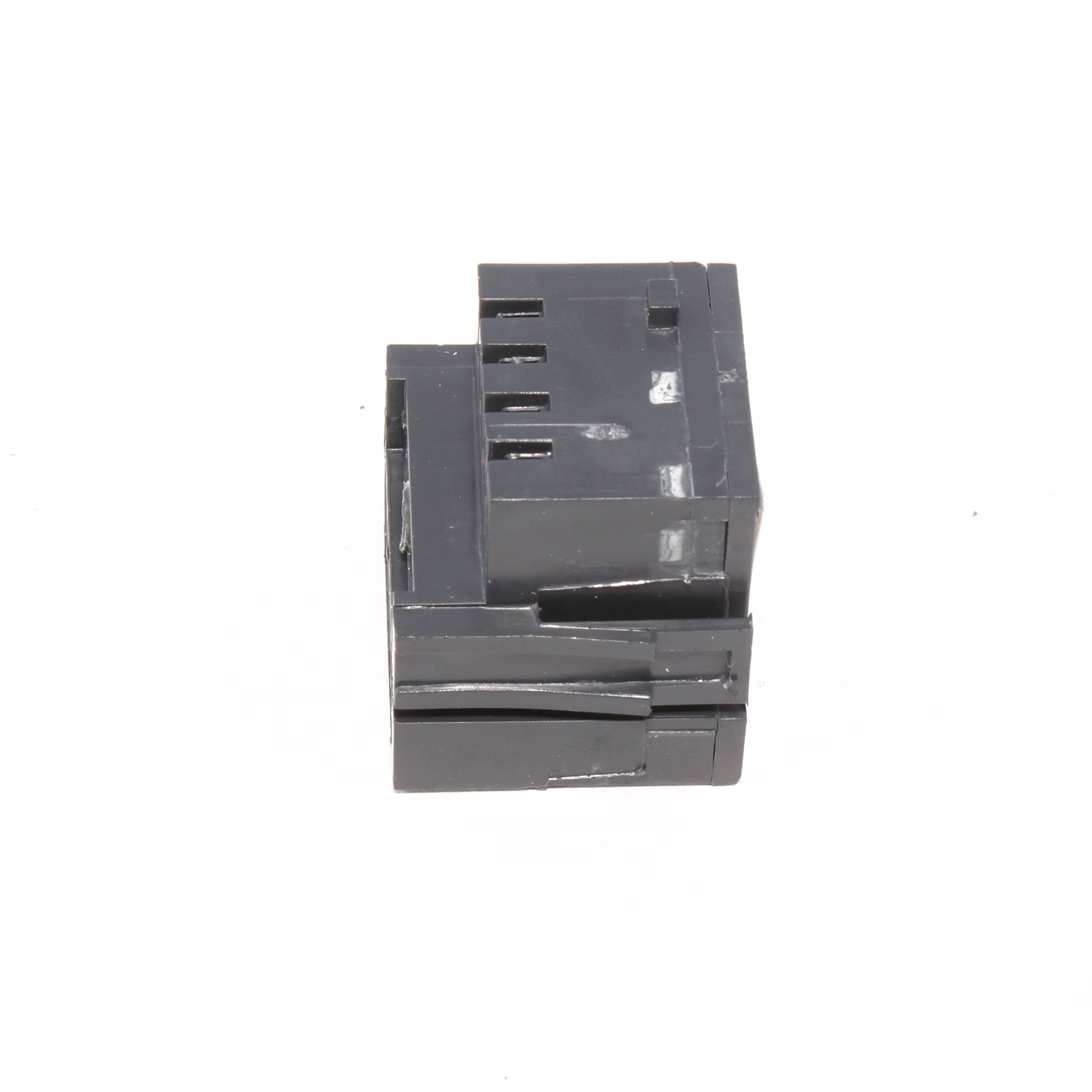

GE Spectra™ SRPF250A200 3-Pole RMS Rating Plug, 250 A, 200 A Plug Current, SF250 Frame

All Spectra™, power Break® and power Break® II circuit breakers use UL listed interchangeable rating plugs to establish or change the long time trip point of the circuit breaker. The key advantage of the rating plug is the flexibility of interchangeable rating plugs across the permissible current ratings of a given circuit breaker frame. Since the installed rating plug establishes the ampere rating of the breaker, the installer must verify the adequacy of the connected cable and busbar ampacity. The national electric code allows cable size to be matched to the ampere rating established by the rating plug.

GE Spectra™ RMS Rating Plug, 3-Pole, 250 A Maximum Breaker, 200 A Plug Current, SF250 Breaker Frame, For Use With: Model SF250 High Interrupting Capacity Motor Circuit Protector, 4 in L x 3 in W x 1-3/4 in H Dimensions
