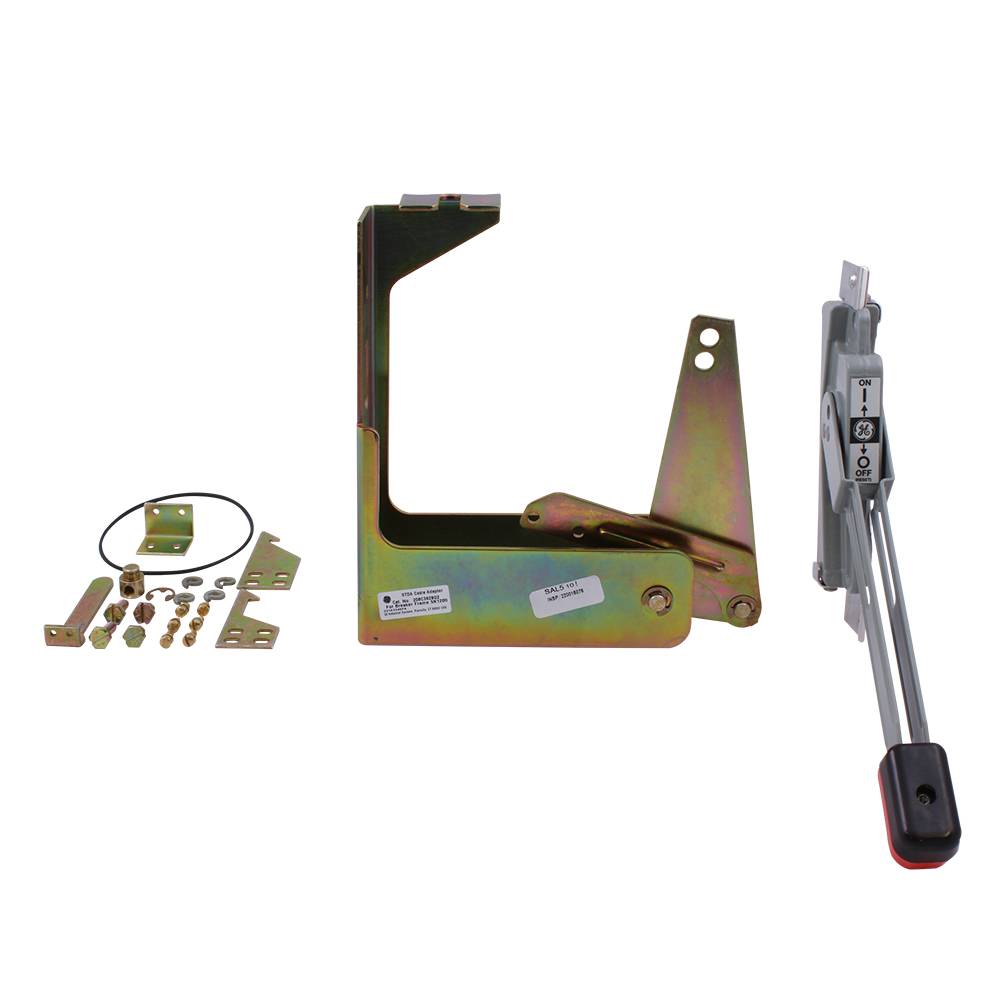

GE Spectra™ RMS™ Industrial Solutions SCH2K Operator Handle, NEMA 12/13 NEMA Rating, Lever Handle/Operation, Flange Handle Mounting

GE cable operating mechanisms are suitable for application with GE circuit breakers mounted in a wide variety of flanged enclosure types and sizes. Flange mounted handle assemblies are available for NEMA type 1, 3R, 12 or 13 enclosures in either 6 in, model SCH1 or 10 in L handle, model SCH2. Corresponding assemblies, SCH1X and SCH2X, are available for NEMA type 4/4X enclosures. Handle assemblies are suitable for either left or right flange operation. The handle assembly is combined with one of eight operating cables, with lengths from 3 to 10 ft, to cover a broad range of breaker mounting locations in the enclosure. The cable links the handle assembly to the breaker mounted operating mechanism and transmits the mechanical force and motion of the handle mechanism to the breaker mounted mechanism. The force and motion is transmitted independently of the breaker mounting plane or location relative to the location of the handle assembly, provided only that the bending radius of the cable is no less than 3 in. No mounting reinforcement of the breaker or enclosure flange is required.

GE Spectra™ RMS™ Industrial Solutions Operator Handle, NEMA 12/13 NEMA Rating, Lever Handle/Operation, Flange Handle Mounting Position, For Use With: CH2K2181 TDF, TDR, TDM, SK1200 Frame Circuit Breaker and Fusible Disconnect, Cable Handle to Device Connection
