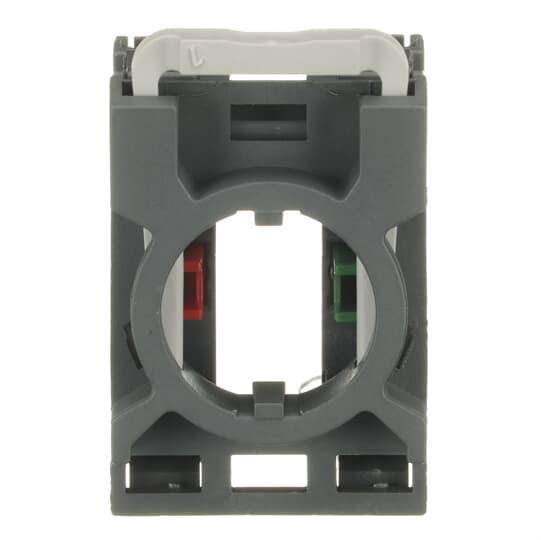

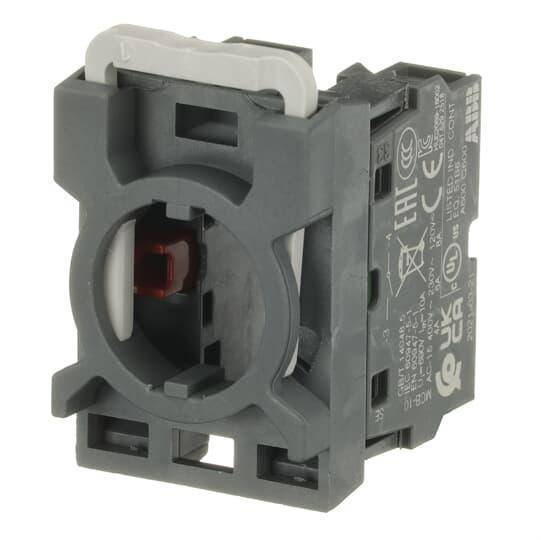

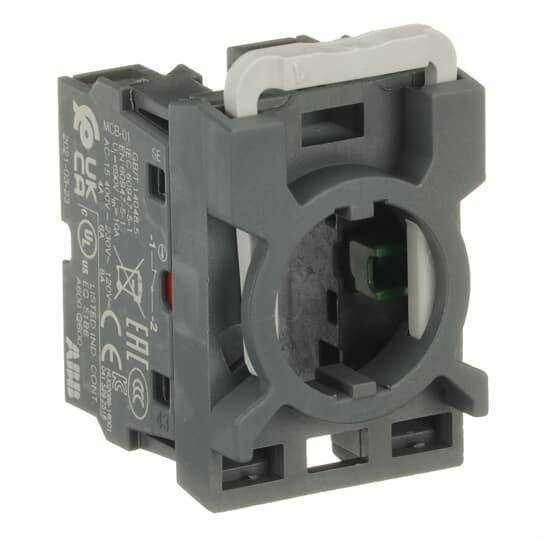

ABB MCBH-11 Modular Non-illuminated Contact Block, 22 mm, 1NC-1NO Contact, 6 A at 230 VAC, 5 A at 24 VDC, 1.1 A at 125 VDC Contact, Silver Tipped Contact
ABB MCBH-11 Modular Non-illuminated Contact Block, 22 mm, 1NC-1NO Contact, 6 A at 230 VAC, 5 A at 24 VDC, 1.1 A at 125 VDC Contact, Silver Tipped Contact
ABB MCBH-11 Modular Non-illuminated Contact Block, 22 mm, 1NC-1NO Contact, 6 A at 230 VAC, 5 A at 24 VDC, 1.1 A at 125 VDC Contact, Silver Tipped Contact
ABB MCBH-11 Modular Non-illuminated Contact Block, 22 mm, 1NC-1NO Contact, 6 A at 230 VAC, 5 A at 24 VDC, 1.1 A at 125 VDC Contact, Silver Tipped Contact
ABB MCBH-11 Modular Non-illuminated Contact Block, 22 mm, 1NC-1NO Contact, 6 A at 230 VAC, 5 A at 24 VDC, 1.1 A at 125 VDC Contact, Silver Tipped Contact
ABB MCBH-11 Modular Non-illuminated Contact Block, 22 mm, 1NC-1NO Contact, 6 A at 230 VAC, 5 A at 24 VDC, 1.1 A at 125 VDC Contact, Silver Tipped Contact
Share Share Print Print
ABB

ABB MCBH-11 Modular Non-illuminated Contact Block, 22 mm, 1NC-1NO Contact, 6 A at 230 VAC, 5 A at 24 VDC, 1.1 A at 125 VDC Contact, Silver Tipped Contact

NOTICE: This item has been flagged as discontinued. Limited stock may be available. Please note that this item is subject to removal from your order if it is unfulfillable.
Short Description

Enhance your control systems with the ABB MCBH-11 Modular Non-illuminated Contact Block, featuring versatile 1NC-1NO contact configuration and robust silver-tipped contacts for reliable performance.Enhanced by AI

ABB Contact Block, Modular Non-illuminated, Series: MCBH, 22 mm Size, 1NC-1NO Contact Configuration, 6 A at 230 VAC, 5 A at 24 VDC, 1.1 A at 125 VDC Contact, Silver Tipped Contact, 1 Contacts, Polycarbonate Block, Pushbutton/Selector Switch Operator, NEMA 1/3R/4/4X/12/13 NEMA Rating, IP20 Enclosure, Screw Terminal, Front Mounting, 0.048 mm H x 0.03 mm W x 0.036 mm D Dimensions

MFG #: MCBH-11

EECO #: GEMCBH11

Brand: ABB
UPC #: 662019229560
Discontinued
Attributes
Features
Documents
Product Information
Attributes
UNSPSC
39121522
Contacts
1
Application
For use with pilot devices
Mounting Type
Front
Operator Type
Pushbutton/Selector Switch
Terminal Type
Screw
Contact Rating
6 A at 230 VAC, 5 A at 24 VDC, 1.1 A at 125 VDC
Enclosure Type
IP20
Contact Configuration
1NC/1NO
Size
22
Type
Modular Non-illuminated
Series
MCBH
Includes
3-Position Holders, (1) Contact Block and (1) Lamp Block
Dimensions
0.048 mm H x 0.03 mm W x 0.036 mm D
Contact Material
Silver Tipped
Features
  • Quick-mount, quick release contact block holder for fast and easy assembly
  • NO and NC contact blocks are color coded for easy identification, green for NO and red for NC
  • Wiping action for high reliability
ABB_MCBH_11_Specification_Sheet
