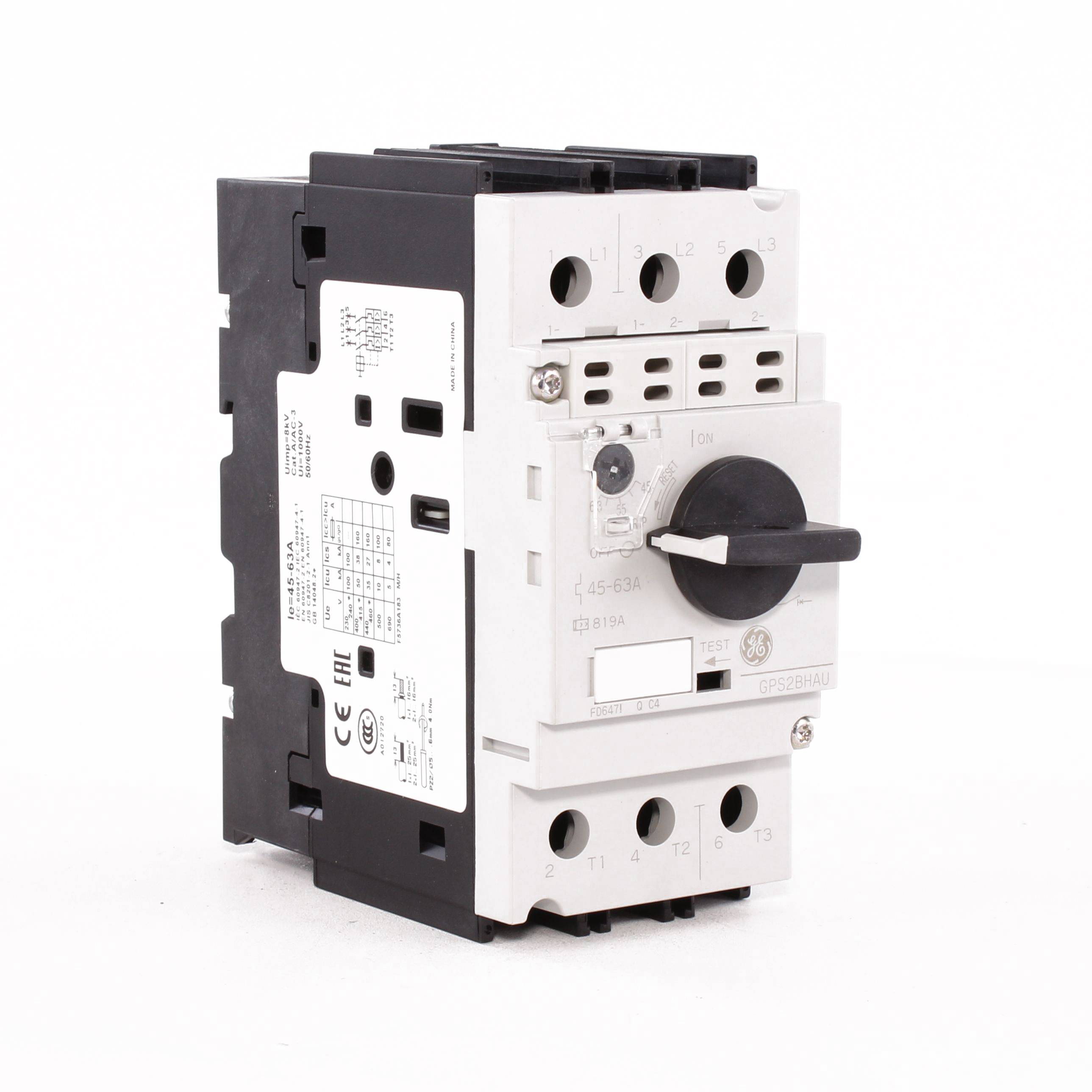

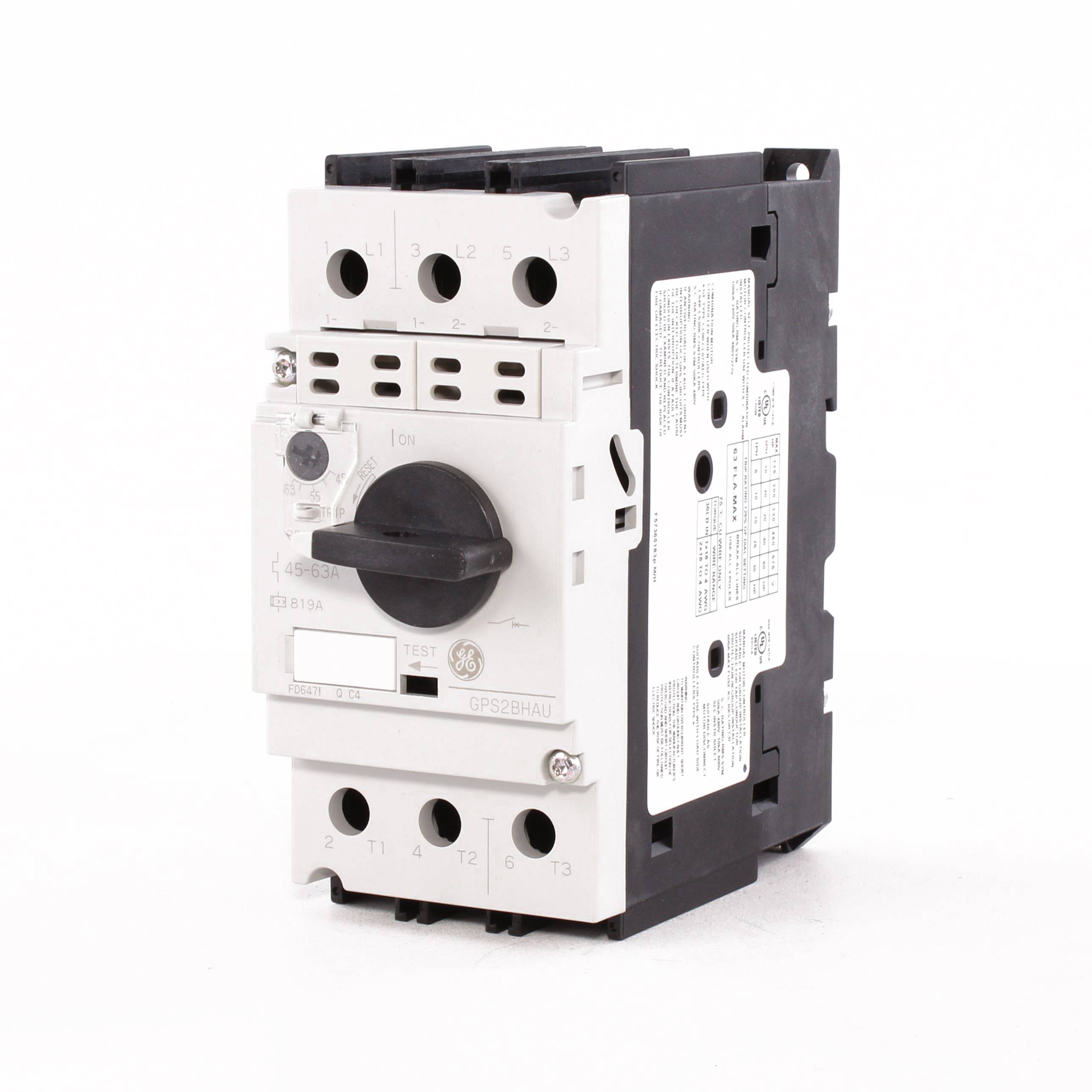

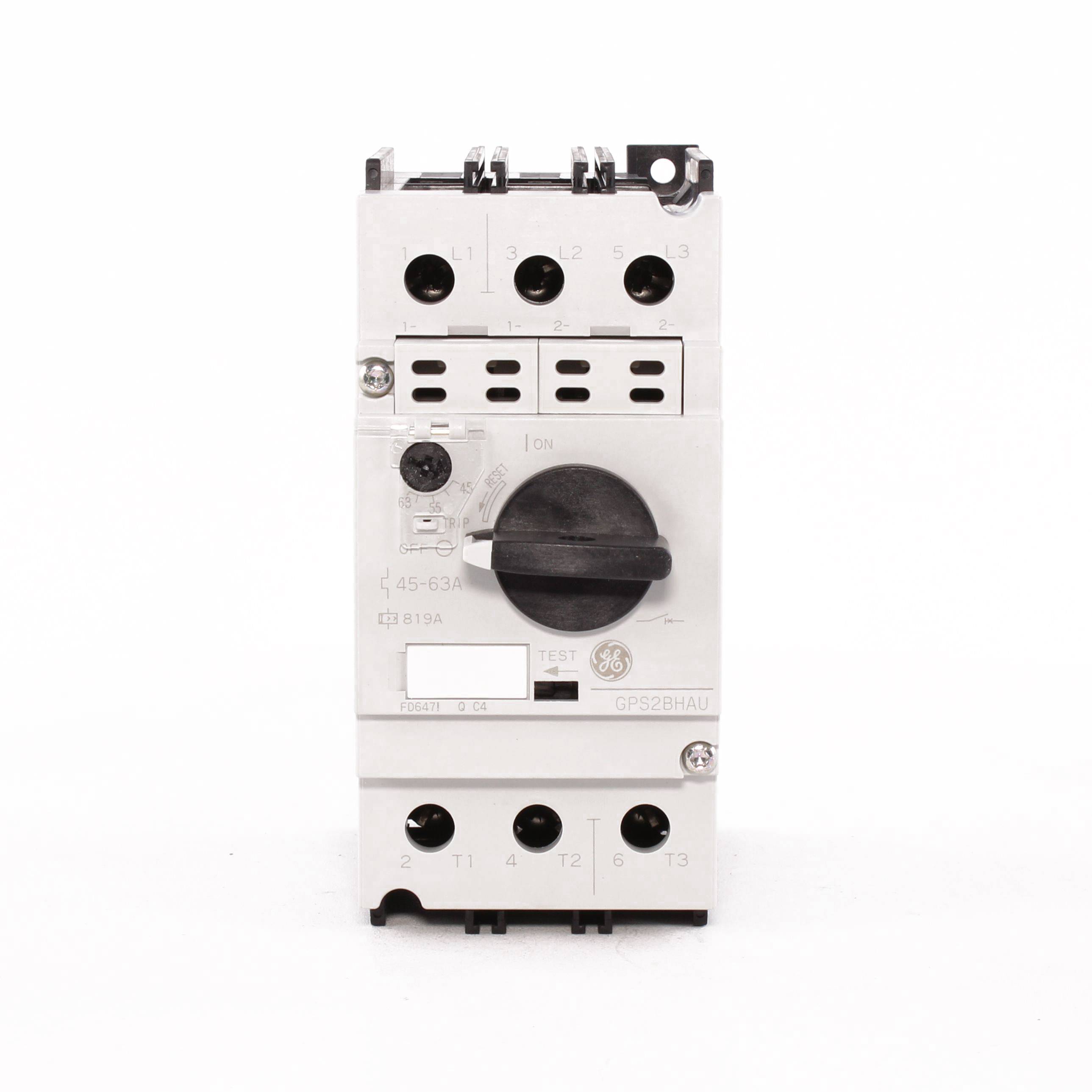

GE GPS2BHAU Surion Series Type 2 Combination High Breaking Capacity Industrial Solution Manual Motor Starter, ON/OFF/Trip Action, 3 Poles

GE Surion IEC motor starters are compact and reliable. They are flexible, quick in installation and available in 45 and 55 mm W. The GPS1 line spans current ranges from 0.1 to 32 A for use with motors up to 30 hp at 600 VAC. The GPS2 series extends this current range to 63 A for use with motors up to and including 50 hp. Surion GPS1 starters are available in two versions. The GPS1BS__series, with a toggle operator, is suitable for individual and group installations. Short circuit interruption capacity ranges up to 100 kA at 240 VAC, 50 kA at 480 VAC and 10 kA at 600 VAC for individual installations and 100 kA at 240 VAC, 65 kA at 480 VAC and 25 kA at 600 VAC for group installations. The GPS1BH__ series, with a rotary operator, carries equivalent or higher short circuit ratings and is also suitable for combination installations with a short circuit interruption rating of 50 kA for 277/480 VAC and below. The GPS2BH__ series also features a rotary operator and is suitable for all three types of installations. Surion is global. It is available around the world in the same form, with the same product number, with both IEC and US markings, making international applications simple and sure. Surion starters are flexible in application. They not only comply with the IEC installation requirements, such as disconnects, main switch, emergency OFF and maintenance service switch, they may also be used in a wide variety of US applications.

GE Industrial Solution Manual Motor Starter, Type 2 Combination High Breaking Capacity, Series: Surion Series, 690 VAC, 63 A, 50/60 Hz Frequency, 5 hp, 10 hp, 15 hp, 20 hp, 40 hp, 45 hp, 50 hp, 55 hp Motor, 3 Pole, Setting: 45 to 63 A, 1/3 ph, Box Connection, ON/OFF/Trip Action, Thermal/Magnetic Overload Relay, Rotary Control, 25000/50000 Cycles Operating Cycles, -4 to 140 deg F Operating, 120 mm H x 55 mm W x 107.5 mm D Dimensions
