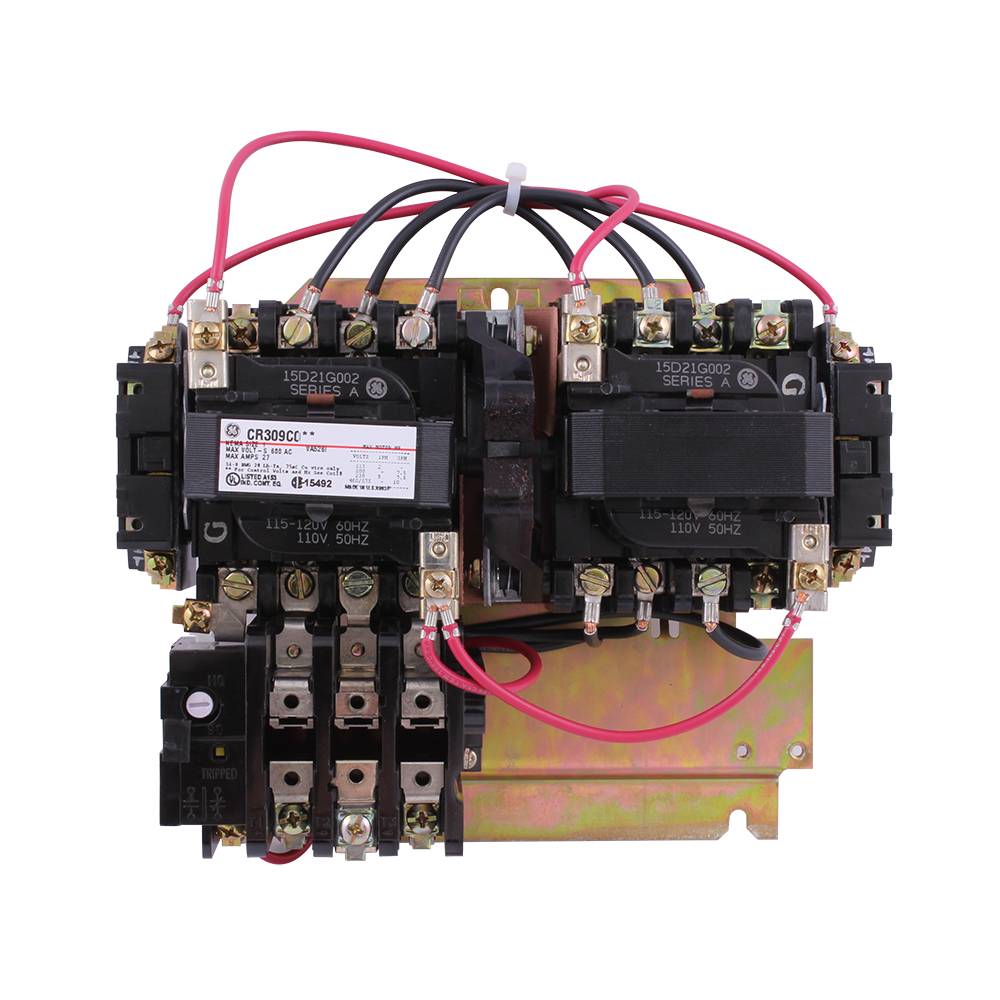

GE CR309C002 300 Line Full Voltage Non-Combination Reversing NEMA Magnetic Starter With Horizontal Mechanical Interlock, 115 to 120 VAC V Coil, 3 Poles, Open Enclosure
Share Share Print Print
GE

GE CR309C002 300 Line Full Voltage Non-Combination Reversing NEMA Magnetic Starter With Horizontal Mechanical Interlock, 115 to 120 VAC V Coil, 3 Poles, Open Enclosure

Short Description

Elevate your control systems with the GE CR309C002 Magnetic Starter, designed for reliable performance in demanding environments. This full voltage, non-combination reversing starter features a robust open enclosure and a thermal overload relay, ensuring optimal safety and efficiency for your applications.

GE NEMA Magnetic Starter, Full Voltage Non-Combination Reversing, Series: 300 Line, 600 VAC, 27 A, 50/60 Hz Frequency, 115 to 120 VAC Coil, 3 Pole, Manual Reset, Thermal Overload Relay, Open Enclosure, -20 to 70 deg C Operating, 7 in H x 8.88 in W x 3.94 in D Dimensions

MFG #: CR309C002

EECO #: GECR309C002

Brand: GE
UPC #: 783166391877
Attributes
Features
Documents
Product Information
Attributes
UNSPSC
39121521
Reset Type
Manual
Application
1-Phase and Polyphase Motor, Electrical Distribution and Control Applications
Coil Voltage
115 to 120
Enclosure Type
Open
Overload Relay
Thermal
Voltage Rating
600
Frequency Rating
50/60
Operating Temperature
-20 to 70
Type
Full Voltage Non-Combination Reversing
Series
300 Line
Includes
Holding Interlock, Mechanical and Cross-Electrical Interlock, Pressure Terminals and 3-Leg Block Type Overload Relay (Manual Reset)
Dimensions
7 in H x 8.88 in W x 3.94 in D
Amperage Rating
27
Features
  • Model: GE CR309C002
  • Type: Full Voltage Non-Combination Reversing Magnetic Starter
  • Series: 300 Line
  • Voltage Rating: 600 VAC
  • Current Rating: 27 A
  • Frequency: 50/60 Hz
  • Coil Voltage: 115 to 120 VAC
  • Number of Poles: 3
  • Reset Type: Manual Reset
  • Overload Protection: Thermal Overload Relay
  • Enclosure Type: Open Enclosure
  • Operating Temperature Range: -20 to 70 °C
  • Dimensions: 7 in H x 8.88 in W x 3.94 in D
