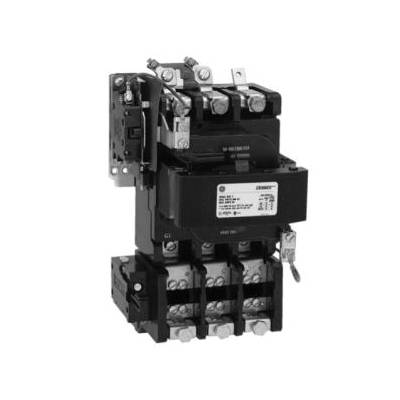

GE Industrial Solution CR306F104 CR306/300-Line Full Voltage Magnetic Non-Combination Non-Reversing NEMA Starter, 460 to 480 VAC V Coil, 3 Poles, NEMA 1 Enclosure
Share Share Print Print
GE

GE Industrial Solution CR306F104 CR306/300-Line Full Voltage Magnetic Non-Combination Non-Reversing NEMA Starter, 460 to 480 VAC V Coil, 3 Poles, NEMA 1 Enclosure

Short Description

GE full voltage (600 VAC maximum) magnetic motor starter has an encapsulated coil and a 3-leg overload relay to protect against overloads in all phases. It is on standard specifications of major manufacturers. The line offers features and benefits most asked for by users.

GE Industrial Solution NEMA Starter, Full Voltage Magnetic Non-Combination Non-Reversing, Series: CR306/300-Line, 600 VAC, 135 A, 50/60 Hz Frequency, 50 W Wattage, 100 hp Motor, 460 to 480 VAC Coil, 3 Pole, Manual Reset, Line/Load Connection, 3-Leg Block/Thermal Overload Relay, 3NO Auxiliary, NEMA 1 Enclosure, 5000000 Cycles Operating Cycles, -25 to 40 deg C Operating, 25 in H x 8.75 in W x 7.31 in D Dimensions

MFG #: CR306F104

EECO #: GECR306F104

Brand: GE
UPC #: 783166362167
Attributes
Features
Documents
Product Information
Attributes
UNSPSC
39121521
Reset Type
Manual
Application
Motor Control Center, Custom Type Control Panel, Switchgear Equipment, Electrical Distribution and Control Applications
Coil Voltage
460 to 480
Enclosure Type
NEMA 1
Overload Relay
3-Leg Block/Thermal
Voltage Rating
600
Connection Type
Line/Load
Frequency Rating
50/60
Operating Temperature
-25 to 40
Type
Full Voltage Magnetic Non-Combination Non-Reversing
Series
CR306/300-Line
Wattage
50
Includes
Holding Interlock, Pressure Terminal and 3-Leg Block Type Overload Relay
Dimensions
25 in H x 8.75 in W x 7.31 in D
Motor Power
100
Amperage Rating
135
Features
  • Toolless contactor disassembly (sizes 00 to 4) - allows quick access for inspection and maintenance
  • Just release 2 retainers and pull a clip to get at magnet, coil and contacts
  • Current carrying components - contact tips are weld resistant silver cadmium oxide (fine silver on sizes 00 and 0 only)
  • Contacts are installed in a wedge configuration for positive make with minimum bounce
  • Class 20 overload protection
  • Visual trip indicator with manual reset - to avoid surprise restarts
  • Reset occurs on arm upstroke so a tripped condition can't be overridden by holding the arm down
  • Manual weld check - provides a convenient test against welding of overload relay contacts
  • Just depress the weld check operator to trip the relay, run a simple continuity test across the relay contacts, then depress the manual reset to return the starter to service
  • Dual bimetals - anticipate overloads, responding to rising current and temperature with faster tripping on severe overloads for better motor protection
  • Trip points are factory calibrated for accuracy
  • +/-10% trip adjustment - by turning a dial in the overload relay face allows "tuning" the protection to the motor on the spot
