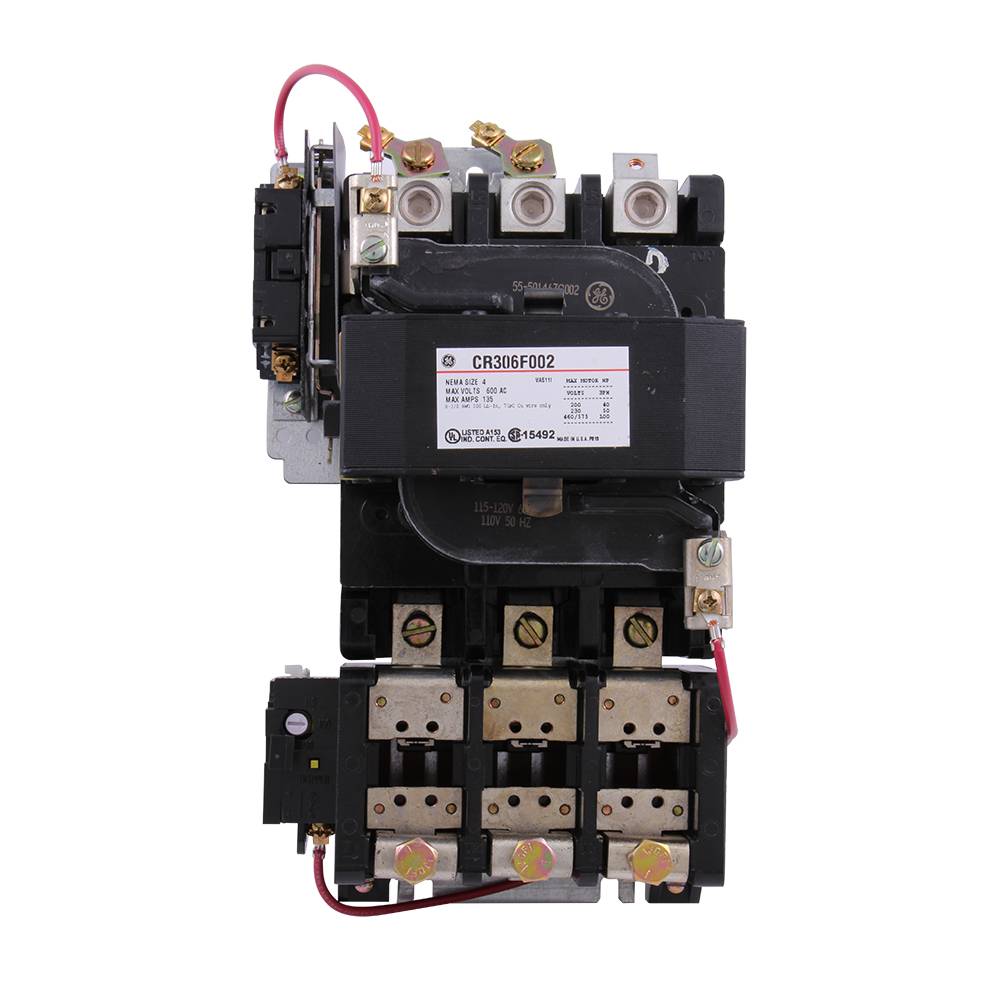

GE CR306F002 300 Line Full Voltage Non-Combination Non-Reversing NEMA Magnetic Starter, 115 to 120 VAC V Coil, 3 Poles, Open Enclosure
Share Share Print Print
GE

GE CR306F002 300 Line Full Voltage Non-Combination Non-Reversing NEMA Magnetic Starter, 115 to 120 VAC V Coil, 3 Poles, Open Enclosure

Short Description

Power your machinery with confidence using the GE CR306F002 Magnetic Starter. Designed for reliable performance, this full voltage, non-reversing starter features a robust open enclosure and is perfect for various industrial applications. Experience seamless operation with its 115 to 120 VAC coil and 3-pole configuration.Enhanced by AI

GE NEMA Magnetic Starter, Full Voltage Non-Combination Non-Reversing, Series: 300 Line, 600 VAC, 135 A, 50/60 Hz Frequency, 115 to 120 VAC Coil, 3 Pole, Manual Reset, 3 ph, Saddle Clamp Connection, 3-Leg Block/Thermal Overload Relay, Open Enclosure, -20 to 70 deg C Operating, 14 in L x 10 in W x 9.88 in H Dimensions

MFG #: CR306F002

EECO #: GECR306F002

Brand: GE
UPC #: 783166361672
Attributes
Features
Documents
Product Information
Attributes
Phase
3
UNSPSC
39121521
Reset Type
Manual
Application
Motor Control Centers, Custom Type Control Panels and Switchgear Equipment Applications
Coil Voltage
115 to 120
Enclosure Type
Open
Overload Relay
3-Leg Block/Thermal
Voltage Rating
600
Connection Type
Saddle Clamp
Frequency Rating
50/60
Operating Temperature
-20 to 70
Type
Full Voltage Non-Combination Non-Reversing
Series
300 Line
Includes
Holding Interlock and Pressure Terminals and 3-Leg Block Type Overload Relay
Dimensions
14 in L x 10 in W x 9.88 in H
Amperage Rating
135
Features
  • Has an encapsulated coil and a 3 leg overload relay to protect against overloads in all phases
  • Tool less contactor disassembly allows quick access for inspection and maintenance
  • Current carrying contact tips are weld resistant silver cadmium oxide
  • Visual trip indicator with manual reset - to avoid surprise restarts
  • Manual weld check provides a convenient test against welding of overload relay contacts
  • 2:1 adjustable full-load amps with tactile feedback dial
  • Built-in thermal memory to prevent hot motor restarts
  • Protection against complete phase current loss
  • +/- 2% accuracy, +/- 2% repeatability, self powered at 50% of minimum current range
  • Saddle clamp terminal accommodate ring, spade and stripped wire leads and carry permanent stamped in identification
